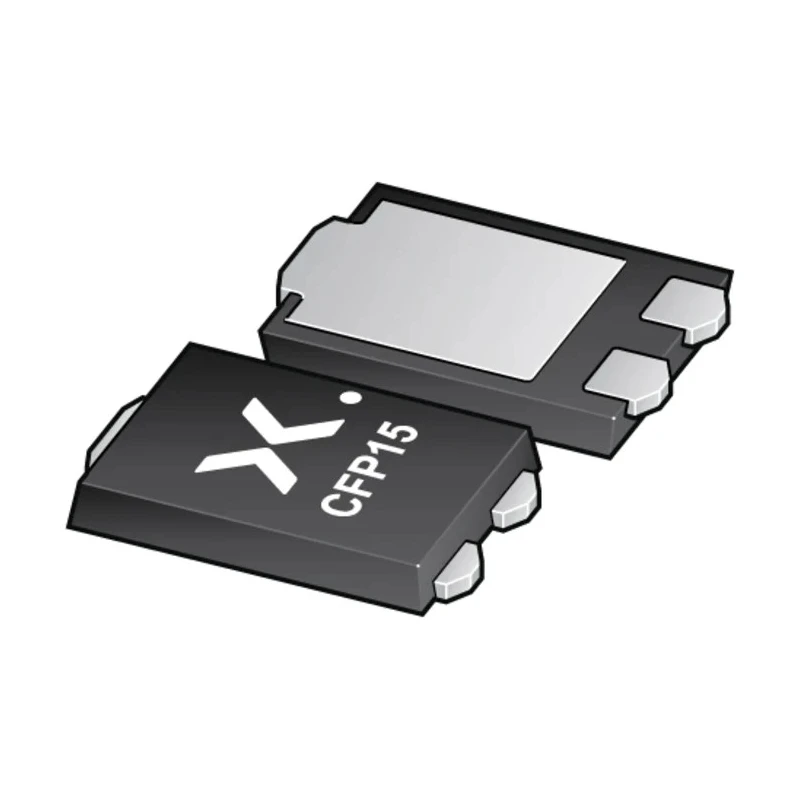

Nexperia 60 V 7 A Medium Power Low VF Schottky Diode Surface Mount CFP15 Package PMEG060V050EPDAZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.78mm |
| Length | 5.8mm |
| Model | PMEG060V050EPDAZ |
| Width | 4.3mm |
| Mount Type | Surface |
| Series | PMEG060V050EPD |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 7A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 8mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 160A |
| Maximum Forward Voltage Vf | 560mV |
| Peak Reverse Recovery Time trr | 17ns |
| Average forward current | IF(AV) ≤ 5 A |
| Reverse voltage | VR ≤ 60 V |
Key Features
- Designed for high efficiency with low forward voltage drop.
- Surface mount device in a compact, flat lead CFP15 (SOT1289) package.
- Maximum continuous forward current of 7 A with a peak surge current of 160 A.
- Reverse voltage rating of 60 V with low peak reverse current of 8 mA.
- High operating temperature range from -55°C up to 175°C.
- AEC-Q101 qualified for automotive applications.
- Common cathode diode configuration with 3 pins.
- Peak reverse recovery time of 17 ns ensuring fast switching.
Product Description
Nexperia PMEG060V050EPDAZ is a high-performance 60 V 7 A Schottky Diode designed for medium power applications with low forward voltage drop, encapsulated in a compact CFP15 surface mount package.
This diode offers robust electrical characteristics including a maximum continuous forward current of 7 A and a peak non-repetitive forward surge current of 160 A, making it suitable for demanding power regulation tasks in automotive, industrial, and electronic systems.
With a low forward voltage of 560 mV and a low peak reverse current of 8 mA, the device contributes to high efficiency and reduced heat generation in power conversion and battery management circuits.
The diode supports operation over a wide temperature range from -55°C to 175°C, meeting the automotive AEC-Q101 standard for reliability and durability under harsh operating conditions.
Its small footprint - measuring 5.8 mm in length, 4.3 mm in width, with a height of just 0.78 mm - enables space-saving design in compact PCB layouts. The common cathode configuration and 3-pin CFP15 package facilitate easy integration with surface mount technology assembly processes.
Low forward voltage drop ensures energy efficiency. Compact surface mount CFP15 package for space savings. High surge current capability for transient robustness. Wide operating temperature range suitable for automotive use.
Automotive AEC-Q101 qualification confirms high reliability. Fast recovery time minimizes switching losses. Designed to extend battery life in portable and automotive electronics. Common cathode configuration with three pins for easy circuit design.
This diode is ideal for applications in automotive electronics, power supplies, battery-operated equipment, and other industrial and electronic applications where efficient rectification and reliability are critical.
Explore more semiconductor and diode solutions by browsing the Nexperia product range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 7 A.
The reverse voltage rating for this model is 60 V.
This diode is encapsulated in a compact CFP15 surface mount package.
It has a peak non-repetitive forward surge current capability of 160 A.
The height of the package is 0.78 mm, and the width is 4.3 mm.
The operating temperature range for this diode is from -55°C to 175°C.
The peak reverse recovery time is 17 ns, ensuring fast switching.
Yes, it is AEC-Q101 qualified for automotive applications.
The maximum forward voltage drop is 560 mV.
This model features a common cathode configuration with 3 pins.
The peak reverse current is 8 mA.
It is suitable for automotive electronics, power supplies, and battery-operated equipment.
