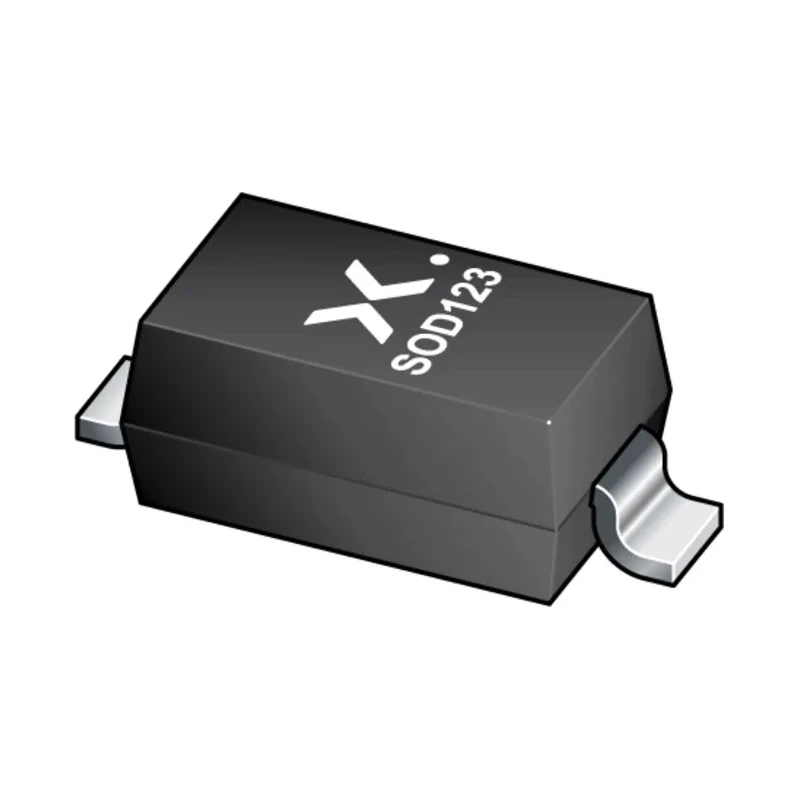

Nexperia Surface Mount Schottky Diode 30 V, 200 mA, 2-Pin SOD-123 Package BAT54GWX

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Surface Mount Schottky Diode 30 V, 200 mA, 2-Pin SOD-123 Package BAT54GWX

Name: Nexperia Surface Mount Schottky Diode 30 V, 200 mA, 2-Pin SOD-123 Package BAT54GWX
Brand: Nexperia
SKU: 301980
Price: 0.03 USD
Availability: InStock



Category Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	4mm
Model	BAT54GWX
Width	2.7mm
Mount Type	Surface
Series	BAT54
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	800mV
Low forward voltage	VF ≤ 400 mV
Low leakage current	IR ≤ 2 μA

Key Features

Planar Schottky barrier diode with integrated guard ring for stress protection.
Low forward voltage drop with VF ≤ 400 mV ensuring efficient conduction.
Very low leakage current with IR ≤ 2 μA for minimal power loss.
Compact small form-factor SOD-123 plastic Surface-Mounted Device package.
Peak reverse repetitive voltage of 30 V and maximum forward current of 200 mA suitable for low power applications.
Wide operating temperature range from -55°C to 150°C.
AEC-Q101 qualified for automotive applications ensuring high reliability.
Peak non-repetitive forward surge current of 600 mA for transient conditions.

Product Description

Nexperia BAT54GWX is a planar Schottky barrier diode designed for surface mounting in a compact 2-pin SOD-123 plastic package. It offers low forward voltage and low leakage current characteristics, making it ideal for efficient rectification in low power electronics and automotive circuits.

This diode features an integrated guard ring to provide enhanced stress protection during operation and can withstand a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V. Its small size and low capacitance improve performance in high-frequency applications.

The BAT54GWX operates reliably over a temperature range of -55°C to 150°C and meets the AEC-Q101 automotive standard, confirming its suitability for automotive and industrial environments.

Typical uses include power rectification, protection circuits, and high-speed switching in industrial, automotive, and consumer electronics applications. Planar Schottky barrier diode with integrated guard ring for stress protection.

Low forward voltage drop with VF ≤ 400 mV ensuring efficient conduction. Very low leakage current with IR ≤ 2 μA for minimal power loss. Compact small form-factor SOD-123 plastic Surface-Mounted Device package. Peak reverse repetitive voltage of 30 V and maximum forward current of 200 mA suitable for low power applications.

Wide operating temperature range from -55°C to 150°C. AEC-Q101 qualified for automotive applications ensuring high reliability. Peak non-repetitive forward surge current of 600 mA for transient conditions. Physical dimensions: 4 mm length, 2.7 mm width, 1.1 mm height.

Manufactured in China without additional standards or approvals.

Explore the extensive range of discrete semiconductors and Diodes at EnvMart for industrial, automotive, and electronic design requirements. Our catalog includes trusted brands and detailed technical specifications to aid your precise component selection.
