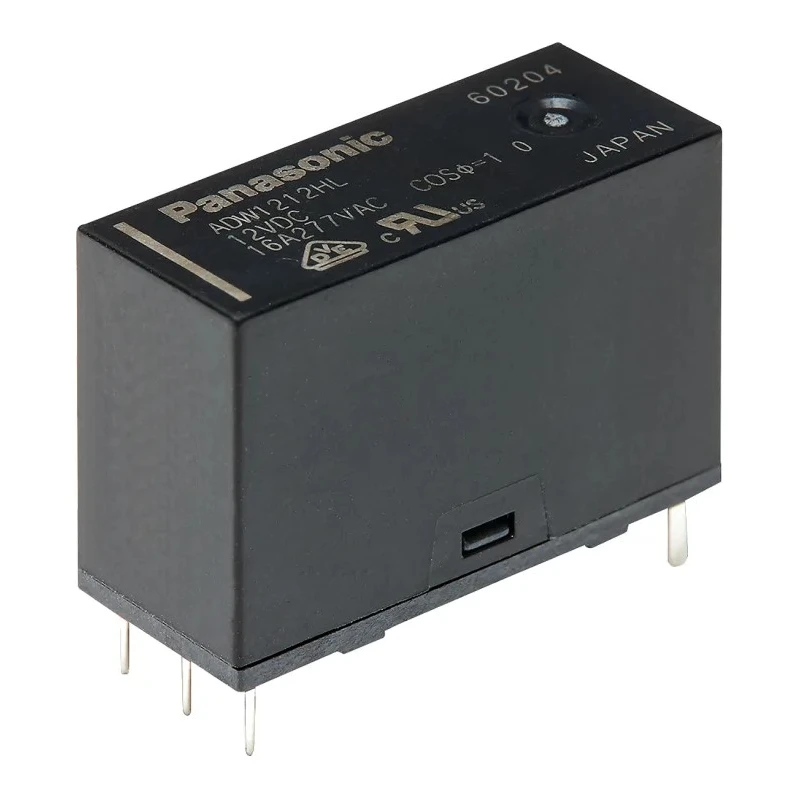

Panasonic PCB Power Relay 9V DC Coil 16A Switching Current SPST ADW1109HLW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 15.8mm |
| Length | 24mm |
| Model | ADW1109HLW |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ADW1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | UL, VDE, CSA, cUL, cULus, PTI 325V, TV-8 |
| Coil Resistance | 405Ω |
| Coil Voltage | 9V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
Key Features
- Designed for PCB mounting with PCB pin terminals.
- Supports switching AC voltage up to 277V AC.
- Operates reliably within temperature range -40°C to 70°C.
- Silver alloy contact material ensures low contact resistance of 100mΩ.
- Coil resistance is 405Ω with a power rating of 200mW for efficient operation.
- Meets multiple international standards including UL, VDE, CSA, and cUL.
- Suitable for appliances, energy, lighting, and industrial applications.
- Robust design allows operation under stressful conditions.
Product Description
Panasonic ADW1109HLW PCB Power Relay is a compact and highly reliable power relay designed for electrical, automation, and industrial applications. Featuring a 9V DC coil and 16A switching current capacity, this SPST relay offers efficient and stable performance for PCB mounting. It combines robustness and precision, making it ideal for appliances, lighting controls, smart meters, refrigerators, and washing machines.
Its compact size (24mm length × 10mm width × 15.8mm height) facilitates integration into tight PCB layouts, while the silver alloy contacts maintain excellent conductivity with a low contact resistance of 100mΩ. The relay supports switching AC voltage up to 277V AC and switching power rated at 4.4kVA.
Engineered to operate reliably in harsh environments, it withstands minimum and maximum operating temperatures ranging from -40°C to 70°C. The coil resistance of 405Ω and coil power consumption of 200mW enable efficient switching with minimal energy loss. Compliance with international standards including UL, VDE, CSA, and cUL ensures safety and quality assurance.
Designed for PCB mounting with PCB pin terminals for secure connectivity. High capacity switching suitable for appliances and industrial equipment. Robust construction for reliable operation in demanding environments. Compact dimensions enable space-efficient PCB designs.
Silver alloy contact material provides excellent conductivity and durability. Wide operating temperature range from -40°C to 70°C. Low coil power consumption at 200mW enhances energy efficiency. International safety approvals for global market compatibility.
Ideal for appliance controls, lighting systems, power supplies, and smart metering. High switching power rating of 4.4kVA supports varied industrial applications.
This Panasonic power relay is a dependable component for engineers and designers focused on durable and efficient PCB relay solutions. Discover more products within the Power Relay category on EnvMart to complement your automation and electrical projects.
