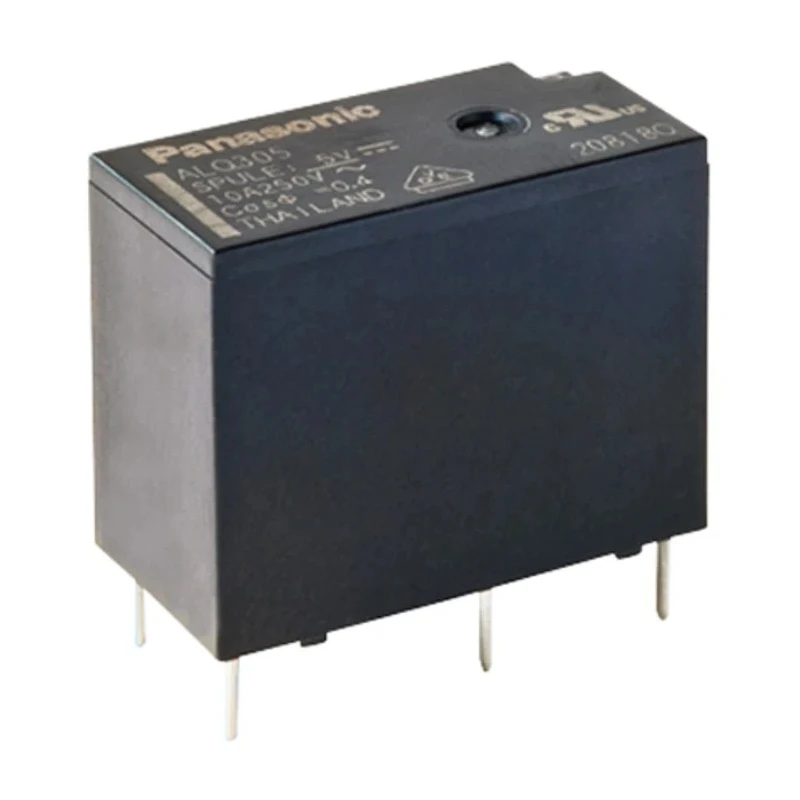

Panasonic PCB Power Relay 5V DC Coil 10A Switching Current SPST ALQ305

Panasonic ALQ305 PCB Power Relay is a high-performance relay designed for a wide range of industrial and commercial applications requiring reliable switching of power loads. The relay features a 5V DC coil voltage and supports a switching current of up to 10A with a SPST (Single Pole Single Throw) contact configuration, making it highly versatile for controlling circuits.

This compact relay is engineered for PCB mounting with PCB pin terminals, facilitating seamless integration into electronic assemblies. The silver alloy contact material ensures excellent conductivity and durability, while a low contact resistance of 100 mΩ enhances performance reliability.

Operational over a broad ambient temperature range from -40°C to +85°C, the ALQ305 is suitable for harsh environments and demanding industrial conditions. It can handle switching power of 150W, switching DC voltage up to 30V, and switching AC voltage up to 250V, providing flexibility across different power systems.

The relay complies with international safety and environmental standards including RoHS and VDE, confirming its quality and adherence to regulatory requirements. Its robust design includes resistance to high surge voltages of up to 8000 V and high breakdown voltage up to 4000 V, which protects the relay and connected circuits from electrical transients.

Typical applications include household appliances such as refrigerators, cooking ovens, washing machines, and air conditioners, as well as industrial equipment including motor controls and robotics. Its reliable switching capability and robust construction make it a trusted component for power supply control and automation solutions.

Compact and robust design suitable for PCB mounting. Operates reliably between -40°C and +85°C ambient temperatures. High switching capacity of 150W supports various applications. Silver alloy contacts ensure low contact resistance and durability.

High surge voltage resistance up to 8000 V. Complies with RoHS and VDE standards for safety and environmental care. Ideal for use in appliances, energy, lighting, industrial equipment, and robotics. Features a coil resistance of 125 Ω and coil power of 200 mW for efficient operation.

Mounts directly on PCB with PCB pin terminals for easy integration. Available with precise dimensions of 20 mm length, 10 mm width, and 15.6 mm height. Explore Panasonic Power Relays and other high-quality electrical components at EnvMart for industrial and commercial automation needs.
