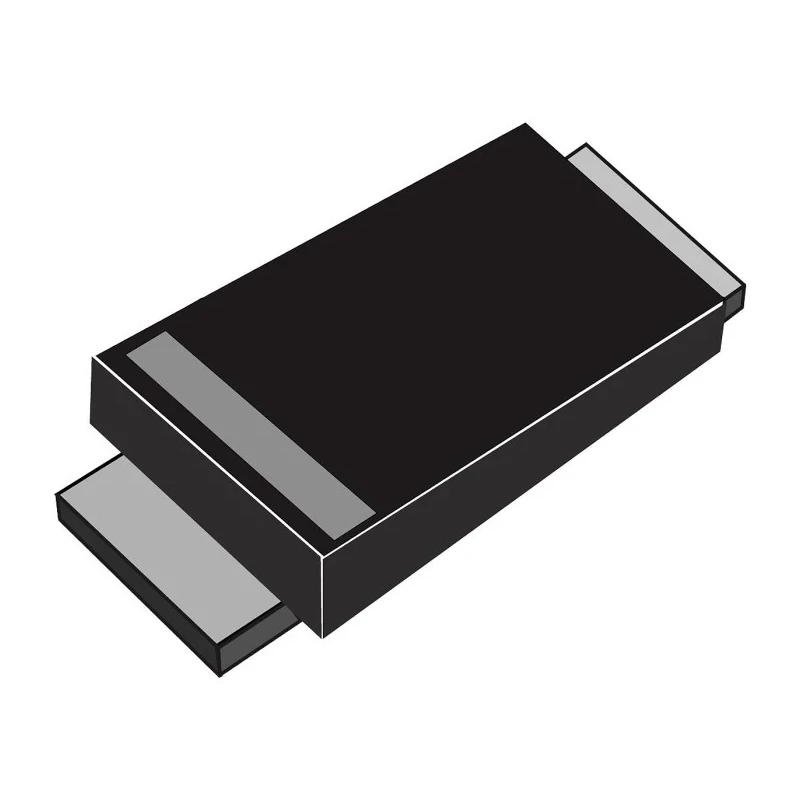

STMicroelectronics General Purpose Diode 200 V 3 A Surface Mount SOD-128 STTH3R02AFY

STMicroelectronics STTH3R02AFY is a general purpose rectifier diode featuring a peak reverse repetitive voltage of 200 V and a maximum continuous forward current of 3 A. Mounted in a space-saving SOD-128 surface mount package, this diode is engineered for efficient performance in power conversion and switching applications across various industries.

This diode supports transient surge currents up to 80 A, enabling it to withstand demanding operating conditions. Its fast peak reverse recovery time of 24 nanoseconds helps minimize power losses during switching cycles, improving overall system efficiency.

Operating temperature ranges from -40°C to 175°C make this device suitable for harsh environments, including automotive and industrial sectors, backed by compliance with the automotive AEC-Q101 quality standard.

The package dimensions of 3.9 mm length, 2.5 mm width, and 1.03 mm height allow for compact PCB layouts. The low forward voltage of 1.02 V reduces conduction losses, while the peak reverse current is tightly controlled to 16 mA, ensuring minimal leakage.

Applications for this diode include power rectification, voltage regulation, and protection circuits within automotive electronics, industrial machinery, and general electronic devices requiring reliable semiconductor components.

Designed as a general purpose rectifier diode for efficient switching applications. Supports a peak non-repetitive forward surge current of 80 A for robust transient tolerance. Features a fast peak reverse recovery time of 24 nanoseconds to minimize switching losses.

Operates safely across a wide temperature range from -40°C to 175°C. Complies with automotive AEC-Q101 standard, ensuring high reliability in automotive environments. Compact SOD-128 package with dimensions of 3.9 mm length, 2.5 mm width, and 1.03 mm height.

Low maximum forward voltage drop of 1.02 V enhances energy efficiency in circuits. Peak reverse current limited to 16 mA to reduce leakage losses. Ideal for industrial, automotive, and general electronic applications requiring durable diode performance.

This diode is categorized under Schottky Diodes & Rectifiers in semiconductor electronic components, making it a versatile part for power and signal rectification circuits. Explore more Semiconductor components from STMicroelectronics and discover technical resources and certifications to support your design needs at EnvMart.
