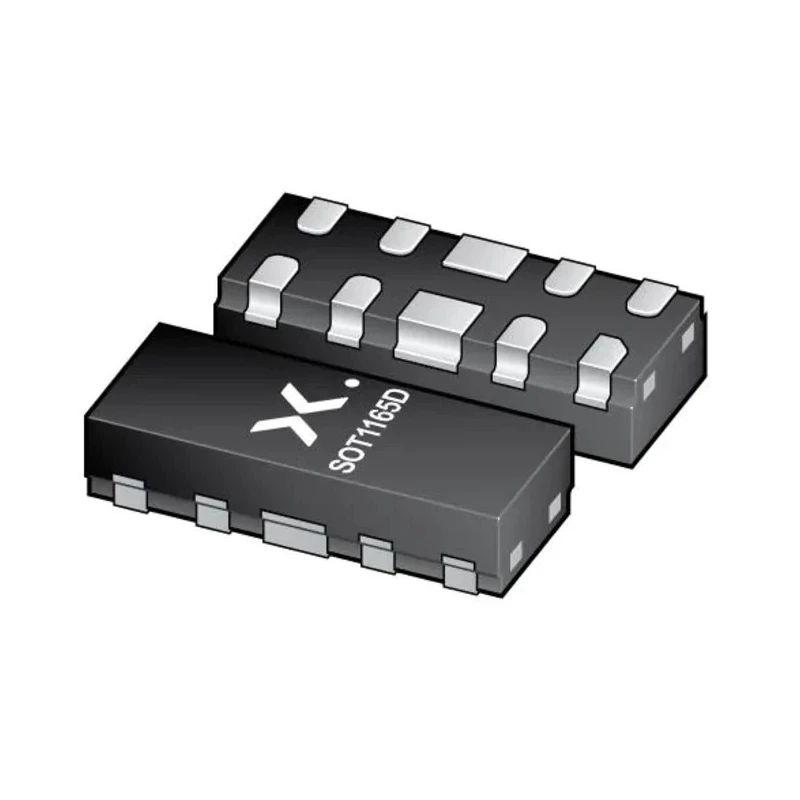

Nexperia Uni-Directional ESD Protection Device 10-Pin DFN2510D PESD4USB3U-TTSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB3U-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD4USB3U |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 Level 4 |
| Pin Count | 10 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Designed for Super Speed USB 3.2 at 10 Gbps, HDMI, Display Port and other high-speed interfaces.
- Line capacitance is only 0.5 pF per channel ensuring minimal signal distortion.
- Provides ESD protection level up to ±15 kV with outstanding system protection.
- Features matched 0.5 mm trace spacing and side-wettable flanks for assembly ease.
- Supports operation over a wide temperature range from -55°C to 150°C.
- Compact 10-pin DFN2510D surface-mount package with 2.5 mm length and 1 mm width.
- Automotive standard AEC-Q101 compliant ensuring reliability in automotive applications.
- Suitable for applications in infotainment, automotive A/V displays, cameras and SerDes systems.
Product Description
Nexperia PESD4USB3U-TTSX Uni-Directional ESD Protection Device 10-Pin DFN2510D is a compact discrete semiconductor designed to safeguard sensitive high-speed data lines from electrostatic discharge (ESD) events. It features a surface mount DFN2510D package with dimensions of 2.5 mm length, 1 mm width, and 0.75 mm height, making it ideal for space-constrained designs.
The device supports a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 3.3 V, ensuring robust protection under adverse conditions. It can withstand peak pulse currents up to 7 A and provides clamping voltage at 3.5 V, effectively limiting voltage spikes.
This ESD protection device supports a broad operating temperature range from -55°C to 150°C and complies with automotive standard AEC-Q101, making it suitable for demanding automotive and industrial applications.
Applications include high-speed data interfaces such as Super Speed USB 3.2 at 10 Gbps, HDMI 2.0, Display Port, external SATA, LVDS, and SerDes GMSL. Its low line capacitance of 0.5 pF per channel reduces signal distortion, ensuring signal integrity in sensitive communication systems.
The package features matched 0.5 mm trace spacing and side-wettable flanks for optimized automated assembly processes. The device offers design-friendly pass-through signal routing to facilitate PCB layout.
Designed to protect USB 2.0, SuperSpeed USB 3.2, HDMI 2.0, HDBaseT and automotive A/V monitors. Ensures high ESD protection level complying with IEC61000-4-2 Level 4 and ISO10605 standards. Ideal choice for infotainment, automotive cameras, displays and SerDes GMSL systems.
Compact and reliable design supporting high-speed signal protection in harsh environments. Industry-standard package and automotive qualification enhance system robustness.
This device is new and manufactured with strict quality controls for superior performance. It supports a range of industrial, automotive, consumer electronics, and data communication applications, providing reliable ESD protection to safeguard equipment and extend operational life.
Explore more high-quality semiconductor and discrete components designed for modern electronics projects and industrial automation on EnvMart.
Explore more products in our ESD Protection Diode category.
