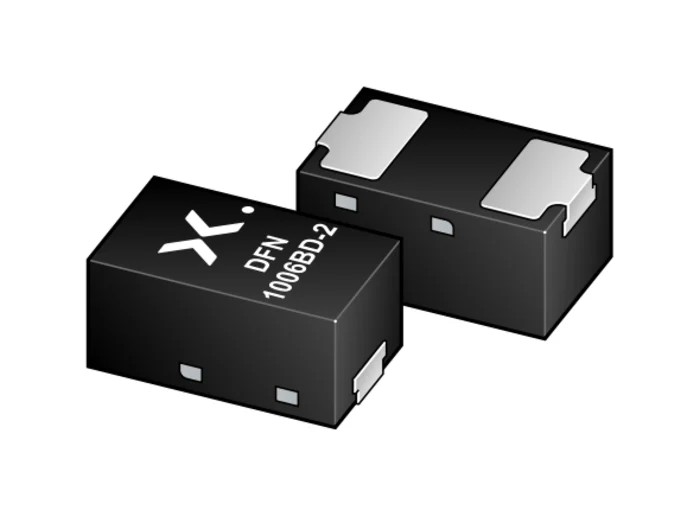

Nexperia Bi-Directional ESD Protection Diode 24V 2.3A Peak Pulse Current 2-Pin DFN1006BD-2 PESD1ETH1GLS-QYL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | PESD1ETH1GLS-QYL |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | PESD1ETH1GLS-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Interfaces | Ethernet |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 2 |
| Clamping Voltage VC | 3.3V |
| Direction Type | Bi-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 2.3A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Provides bi-directional ESD protection with a maximum reverse stand-off voltage of 24V.
- Supports a maximum peak pulse current of 2.3A ensuring robust transient suppression.
- Compact DFN1006BD-2 surface mount package measuring 1 mm x 0.6 mm x 0.47 mm.
- Operates reliably at temperatures ranging from -55°C to 150°C, suitable for harsh environments.
- Conforms to AEC-Q101 standards for automotive quality and reliability.
- Offers low capacitance (
- Clamping voltage is typically 3.3V for effective voltage spike limitation.
- Automotive Ethernet standards IEEE 100BASE-T1 and 1000BASE-T1 compliant.
Product Description
Nexperia PESD1ETH1GLS-QYL is a bi-directional Electrostatic Discharge (ESD) protection diode specifically designed to safeguard automotive Ethernet interfaces and other sensitive electronic circuits from electrostatic discharges and transient voltage spikes. Featuring a compact 2-pin DFN1006BD-2 package with dimensions of 1 mm length, 0.6 mm width, and 0.47 mm height, this diode integrates seamlessly into space-constrained electronic assemblies.
This diode supports a maximum reverse stand-off voltage of 24V and can handle peak pulse currents up to 2.3A, making it highly effective for transient suppression in automotive and industrial environments. It offers a low clamping voltage of approximately 3.3V, which limits voltage spikes to safe levels, thus protecting downstream components.
Operating temperature ranges from -55°C to 150°C ensure reliable performance across extreme temperature conditions typical of automotive applications. The device complies with AEC-Q101 automotive standards, guaranteeing robustness and reliability required for in-vehicle electronics.
With its low capacitance (.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage for this diode is 24V.
It supports a maximum peak pulse current of 2.3A, making it effective for transient suppression.
The DFN1006BD-2 package measures 1 mm in length, 0.6 mm in width, and 0.47 mm in height.
It operates reliably at temperatures ranging from -55°C to 150°C.
This diode conforms to AEC-Q101 standards for automotive quality and reliability.
The clamping voltage is typically 3.3V, which helps limit voltage spikes to safe levels.
Yes, it is designed to safeguard automotive Ethernet interfaces and is compliant with IEEE 100BASE-T1 and 1000BASE-T1 standards.
This model has a 2-pin configuration.
It supports surface mounting, making it suitable for compact electronic assemblies.
The maximum reverse leakage current is 100nA.
It is a bi-directional ESD protection diode, providing protection in both directions.
This model is designed for use with Ethernet interfaces.
