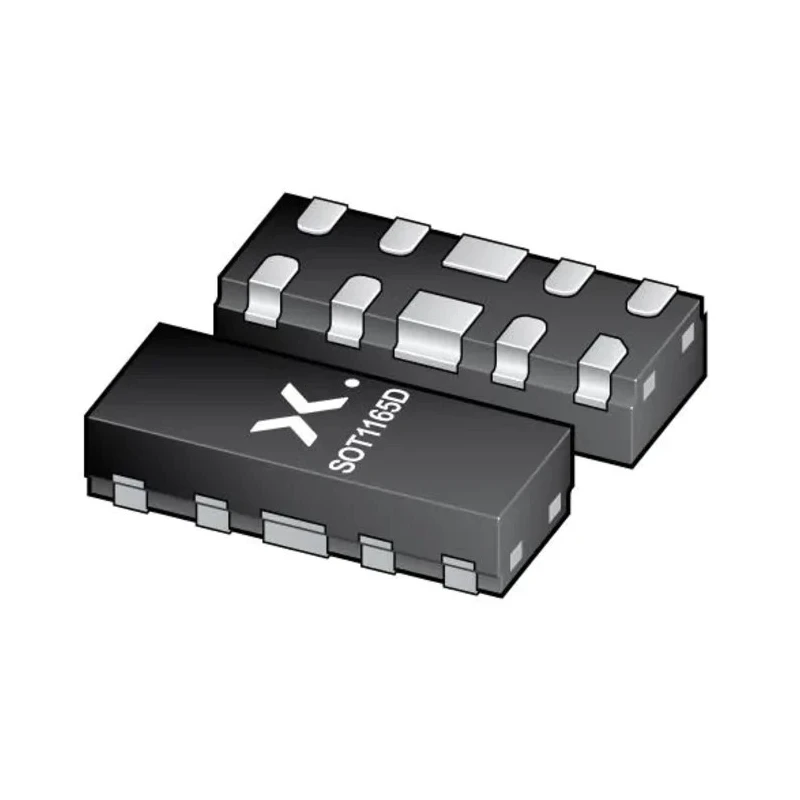

Nexperia Bi-Directional ESD Protection for High Speed Interface, 10-Pin DFN2510D PESD4USB3B-TTSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB3B-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 |
| Pin Count | 10 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Offers bi-directional ESD protection for interfaces such as SuperSpeed USB 3.2 and HDMI.
- Compact DFN2510D package with dimensions 2.5mm x 1mm x 0.75mm.
- ESD protection up to ±15 kV according to IEC61000-4-2 standards.
- Low line capacitance of 0.5 pF per channel for minimal signal distortion.
- Maximum peak pulse current rating of 7A for robust protection.
- Operates reliably within temperature range -55°C to 150°C.
- Low clamping voltage at 5.5V ensuring effective transient voltage suppression.
- Designed with matched 0.5 mm trace spacing and side-wettable flanks for optimized PCB mounting.
Product Description
Nexperia PESD4USB3B-TTSX is a bi-directional ESD protection device engineered to safeguard high-speed interfaces including SuperSpeed USB 3.2 (up to 10 Gbps), HDMI 2.0, Display Port, eSATA, LVDS, and Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes) from ElectroStatic Discharge (ESD) events.
This device features a small outline DFN2510D package measuring 2.5 mm in length, 1 mm in width, and 0.75 mm in height, making it suitable for compact PCB layouts. With a low line capacitance of just 0.5 pF per channel, it minimizes signal distortion and maintains signal integrity in high speed data lines.
Its maximum peak pulse current rating of 7A and clamping voltage of 5.5V provide robust transient voltage suppression, essential for protecting sensitive electronic components. The device supports a wide operating temperature range from -55°C up to 150°C, making it reliable in harsh environments including automotive applications.
The PESD4USB3B-TTSX complies with industry standards such as ISO10605 and IEC61000-4-2, offering ESD protection levels of up to ±15 kV. It is automotive-qualified per the AEC-Q101 standard, ensuring suitability for automotive infotainment systems, USB interfaces, HDMI, HDBaseT, and various SerDes communication links.
The device is designed for ease of PCB integration featuring matched 0.5 mm trace spacing and side-wettable flanks (SWF), enhancing solderability and mechanical durability. Its design-friendly pass-through signal routing simplifies integration into complex signal chains.
This ESD protection component is ideal for use in industrial, automotive, electronic manufacturing, and consumer electronics sectors where reliable protection of high speed data interfaces is critical.
Bi-Directional ESD protection with ±15 kV capability. Compact 10-pin DFN2510D package minimizes PCB real estate. Low capacitance ensures high speed signal integrity. Wide temperature operating range from -55 to 150°C. Automotive AEC-Q101 qualification for stringent quality standards.
Compliant with ISO10605 and IEC61000-4-2 ESD and safety standards. Explore more ESD protection solutions and semiconductor components on EnvMart for your industrial and automotive applications.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It offers bi-directional ESD protection with a capability of up to ±15 kV according to IEC61000-4-2 standards.
The DFN2510D package measures 2.5 mm in length, 1 mm in width, and 0.75 mm in height.
The maximum peak pulse current rating is 7A, providing robust protection against transient voltage events.
It operates reliably within a temperature range of -55°C to 150°C.
The clamping voltage is 5.5V, ensuring effective transient voltage suppression.
It is designed to protect high-speed interfaces such as SuperSpeed USB 3.2, HDMI 2.0, Display Port, eSATA, LVDS, and GMSL.
It complies with ISO10605 and IEC61000-4-2 ESD and safety standards, and it is automotive-qualified per the AEC-Q101 standard.
The line capacitance is low at 0.5 pF per channel, which minimizes signal distortion.
It features a total of 10 pins, suitable for various PCB layouts.
The PESD4USB3B-TTSX is designed for surface mounting, optimized for compact PCB integration.
The minimum breakdown voltage is 6V, ensuring effective protection for sensitive components.
It is ideal for use in automotive infotainment systems, USB interfaces, HDMI, HDBaseT, and various SerDes communication links.
