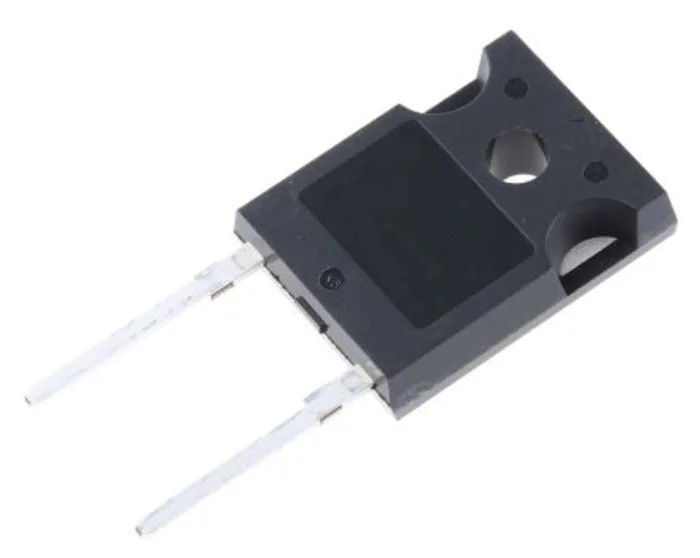

Microchip 1200 V 15 A Schottky Barrier Rectifier Diode TO-247 MSC015SDA120B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC015SDA120B |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- High switching frequency suitability with ultra-fast recovery times.
- Low forward voltage of 1.8 V ensures efficiency.
- Designed for through-hole mounting applications.
- Maximum operating temperature up to 175°C for reliable operation.
- Low leakage current with soft recovery characteristics.
- Peak non-repetitive forward surge current rating of 75 A.
- RoHS compliant semiconductor component.
- Ideal for power-parallel diode and similar industrial power applications.
Product Description
Microchip MSC015SDA120B is a high-performance Schottky Barrier Rectifier Diode with a peak reverse repetitive voltage of 1200 V and maximum continuous forward current of 15 A delivered in a robust TO-247 through-hole package. This diode is engineered for high switching frequencies, featuring ultra-fast recovery times and soft recovery characteristics that minimize switching losses in power electronic circuits.
Its low forward voltage of 1.8 V helps improve energy efficiency, while the device exhibits low leakage current and is rated for operation in harsh environments with a maximum operating temperature of 175°C. The diode also supports a peak non-repetitive forward surge current of 75 A, accommodating transient power surges typical in industrial and automotive circuits.
This product complies with RoHS standards, ensuring restrictive use of hazardous substances, making it suitable for environmentally conscious manufacturing processes. The MSC015SDA120B is ideal for applications such as power parallel diode configurations, power supplies, rectification, and other industrial power management circuits requiring reliable, fast recovery, and efficient switching characteristics.
High switching frequency with ultra-fast recovery times. Low forward voltage reduces power loss. Through-hole mounting style with TO-247 package for easy integration. Wide operating temperature range (-55°C to 175°C) for industrial use.
Soft recovery characteristics minimize switching noise. Peak surge current capability up to 75 A enhances robustness. RoHS compliant for environmental safety. Suited for power-parallel diode arrangements and high-efficiency rectification.
Microchip offers reliable semiconductor solutions for industrial and electronic applications, and this Schottky Barrier Diode supports various sectors including power electronics manufacturing, electronic components design, industrial automation, and automotive electronics.
Explore our comprehensive catalog at EnvMart to find more Microchip semiconductor components for your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the Microchip MSC015SDA120B is 1200 V.
This model has a maximum continuous forward current rating of 15 A.
The maximum operating temperature for this diode is 175°C.
It is designed for through-hole mounting applications.
The maximum forward voltage drop for this diode is 1.8 V.
This model supports a peak non-repetitive forward surge current rating of 75 A.
The diode operates within a temperature range of -55°C to 175°C.
Yes, this diode is RoHS compliant, ensuring it meets environmental safety standards.
It is packaged in a TO-247 type package.
This diode is ideal for power-parallel diode configurations, power supplies, and industrial power management circuits.
Key features include high switching frequency suitability, ultra-fast recovery times, low leakage current, and soft recovery characteristics.
This model is a Schottky barrier rectifier diode.
