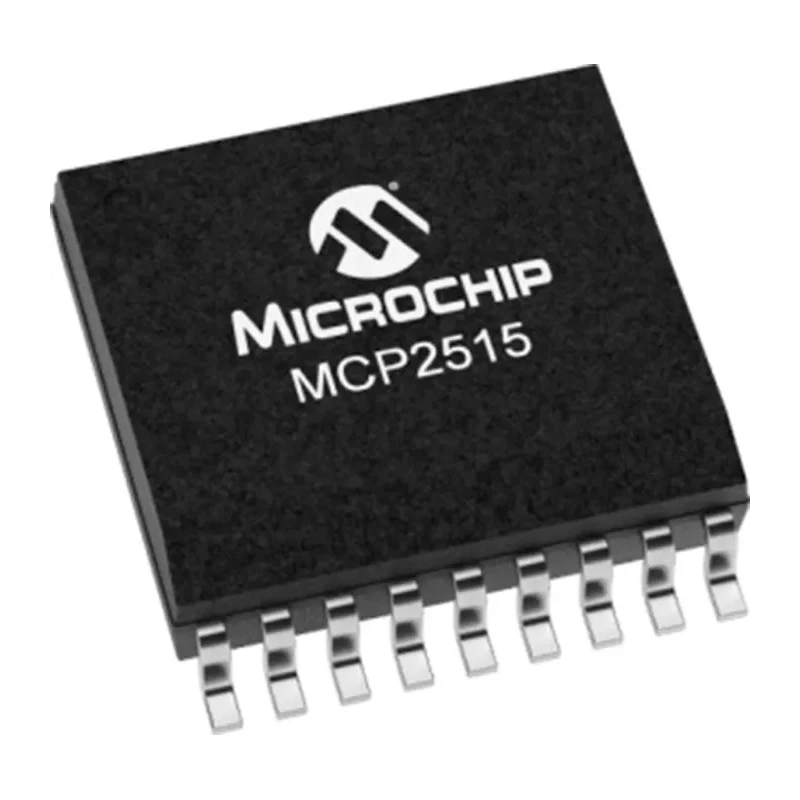

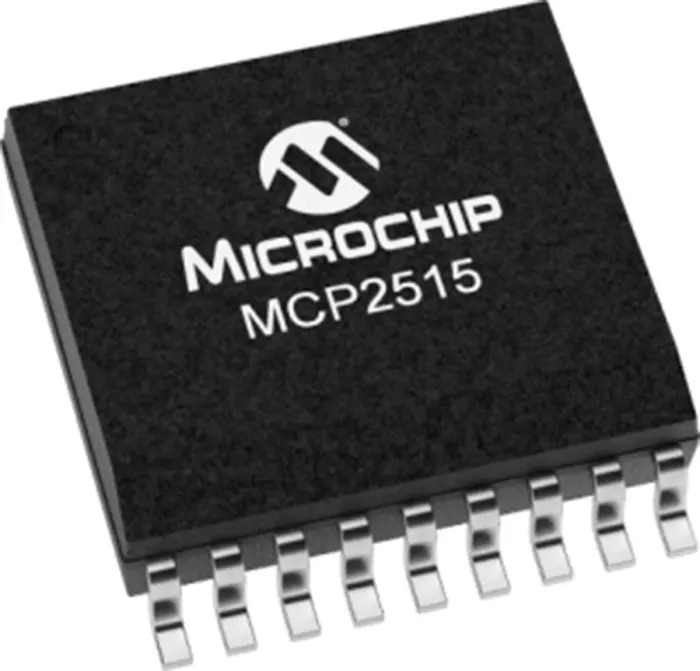

Microchip CAN Controller Stand-Alone 1 Mbps 18-Pin SOIC MCP2515T-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 11.55mm |
| Model | MCP2515T-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | MCP2515 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | CAN Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | CAN V2.0B |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 10mA |
| Maximum Data Rate | 1Mbps |
| Number of Transceivers | 1 |
Key Features
- Operates with a maximum data rate of 1 Mbps.
- Includes one CAN transceiver for communication.
- Surface mount package suitable for compact PCB designs.
- Wide operating temperature range from -40°C to 85°C.
- Compatible with CAN V2.0B interface standard.
- Supply voltage between 2.7V and 5.5V.
- Implements one-shot mode for single transmission attempts.
- Provides databyte filtering and Start-of-Frame output.
Product Description
Microchip MCP2515T-I/SO is a second-generation stand-alone Controller Area Network (CAN) controller designed for robust industrial, automotive, and embedded applications. This device operates efficiently at a maximum data rate of 1 Mbps and is packaged in a compact 18-Pin SOIC to facilitate surface mounting on printed circuit boards. It features a simple SPI interface for easy MCU integration, supporting CAN protocol version 2.0B.
The MCP2515 offers advanced capabilities such as one-shot mode that ensures message transmissions are attempted only once, databyte filtering for improved data handling, and a Start-of-Frame output to synchronize communications. It is engineered in low-power CMOS technology, enabling Sleep and Standby power down modes to conserve energy during inactive periods.
Operating over a temperature range from -40°C to 85°C and a broad supply voltage window from 2.7V up to 5.5V, this CAN controller suits harsh automotive and industrial environments. Its design complies with RoHS standards and meets the automotive AEC-Q100 qualifications, assuring reliability and quality.
Key applications include automotive networking systems, industrial control networks, and embedded systems requiring reliable serial communication. The compact and efficient device is ideal for system designers seeking a proven CAN Controller solution with enhanced performance.
Operates at a stable 1 Mbps CAN data rate. Simple SPI interface ensures compatibility with various MCUs. Supports power-saving Sleep and Standby modes. Wide operating temperature range suitable for automotive and industrial uses.
Compliant with CAN V2.0B and automotive industry standards.
The MCP2515T-I/SO is a recommended choice for engineers developing communication interfaces in industrial automation, transportation, and embedded systems sectors. For a wide selection of semiconductor controllers and interface ICs, explore EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP2515T-I/SO operates at a maximum data rate of 1 Mbps.
It supports a supply voltage range from 2.7V to 5.5V.
This model operates over a temperature range from -40°C to 85°C.
It features a simple SPI interface for easy integration with microcontrollers.
The MCP2515T-I/SO includes one CAN transceiver for communication.
It comes in an 18-Pin SOIC package suitable for surface mounting.
This model meets the automotive AEC-Q100 qualifications and is RoHS compliant.
The height of this model is 2.35 mm.
It is suitable for automotive networking systems, industrial control networks, and embedded systems requiring reliable serial communication.
The width is 7.5 mm and the length is 11.55 mm.
The supply current for this model is 10 mA.
It supports the CAN protocol version 2.0B.
