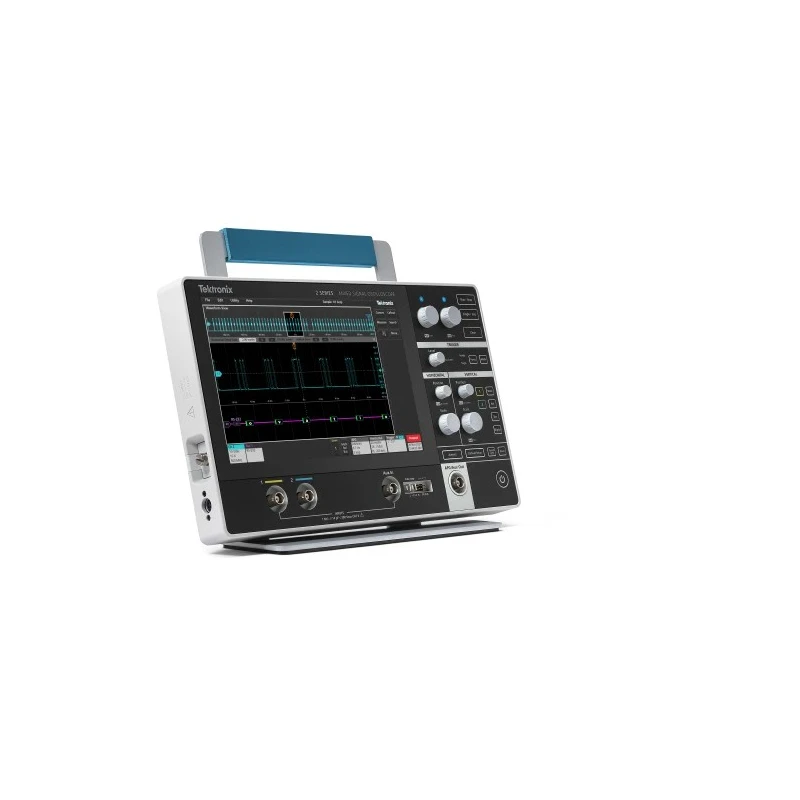

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 100 MHz Bandwidth, 2 Channels, Lithium-ion MSO22 2-BW-100

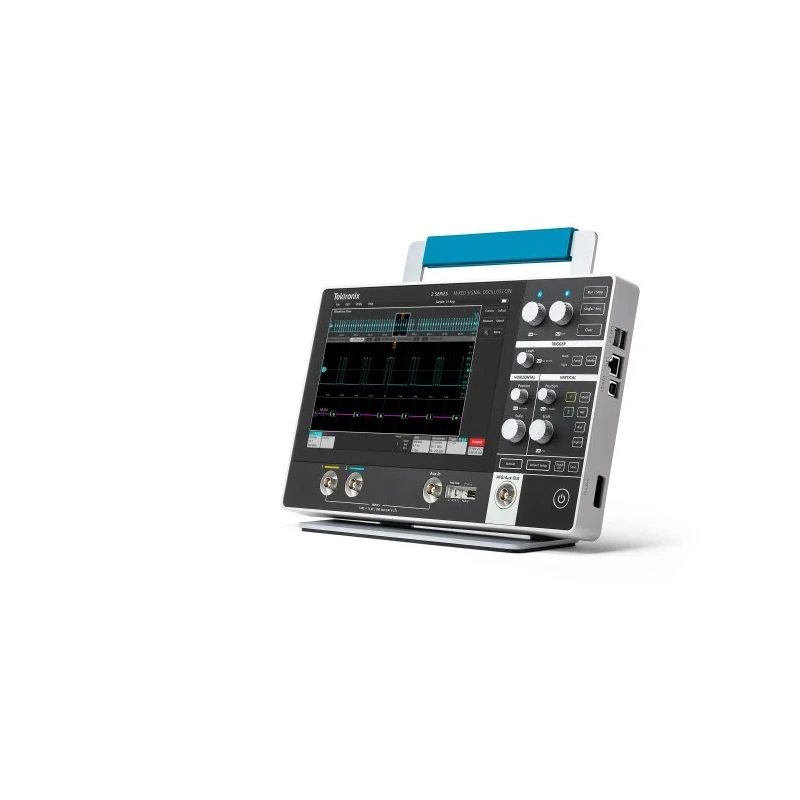

Tektronix MSO22 2-BW-100 is a 2 Series MSO Ultra Compact Mixed Signal Oscilloscope offering 100 MHz bandwidth and 2 analog channels. Designed for electronic debug and test work, it features a highly intuitive 10.1-inch capacitive touch display, making it an ideal solution for portable and bench use in industrial, manufacturing, research, and field service environments.

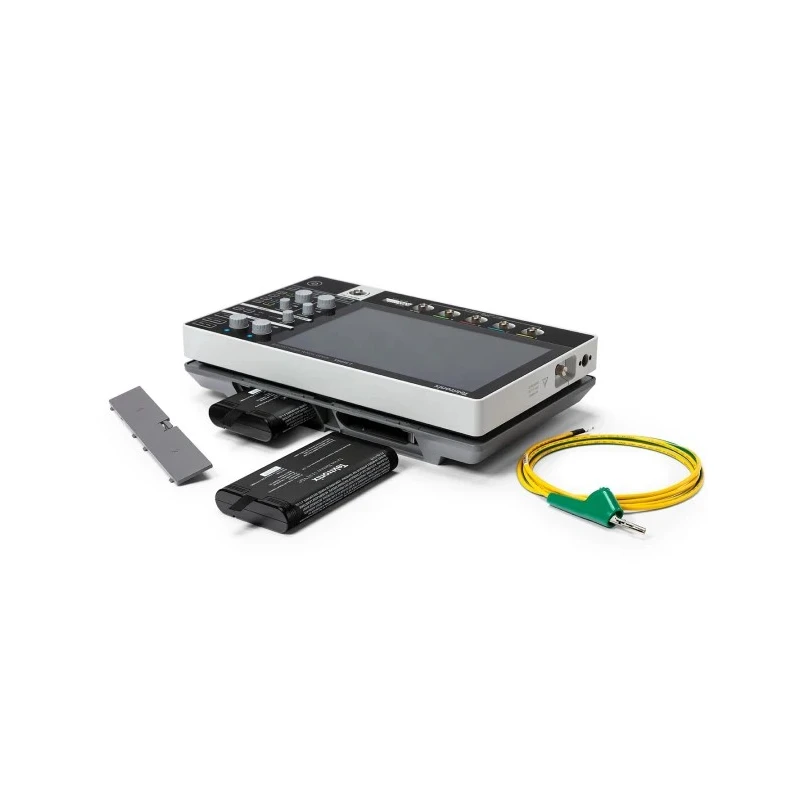

The lightweight instrument weighs only 1.8 kg without batteries, and with an optional lithium-ion battery pack it supports up to 8 hours of unplugged operation with hot-swappable batteries, enhancing mobility for field testing.

This oscilloscope supports multiple digital communication interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, facilitating comprehensive protocol analysis and debugging. The 2 Series MSO family also offers upgrades such as 16 digital channels, 50 MHz arbitrary function generator, and advanced triggers to enhance measurement capabilities.

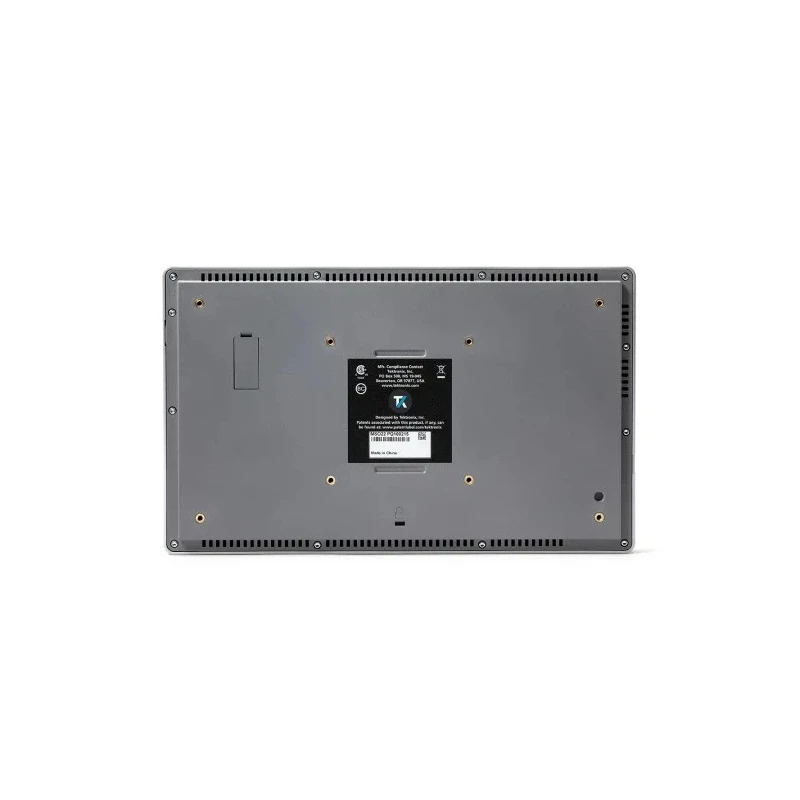

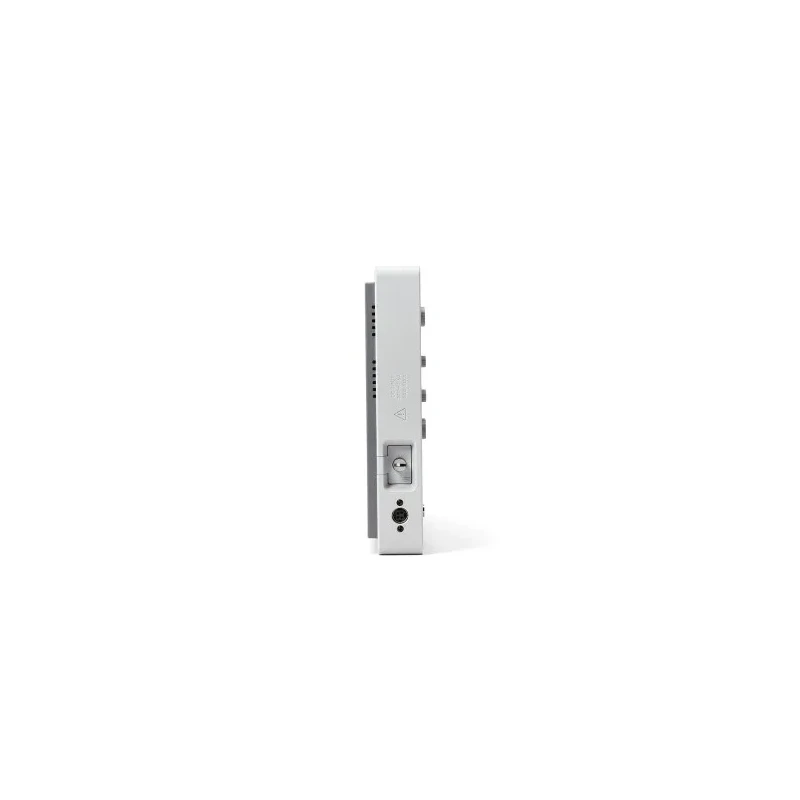

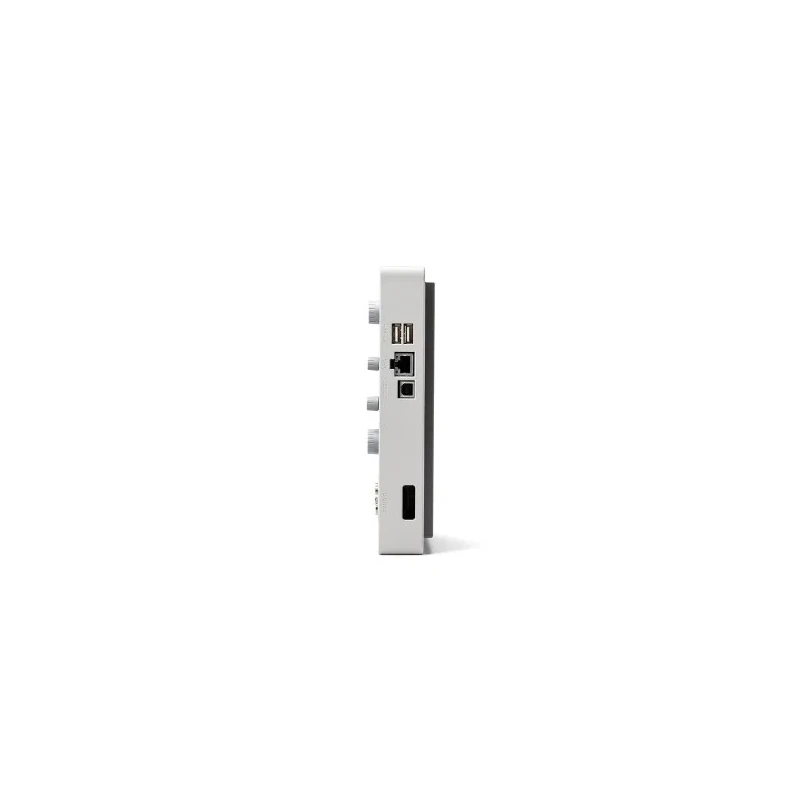

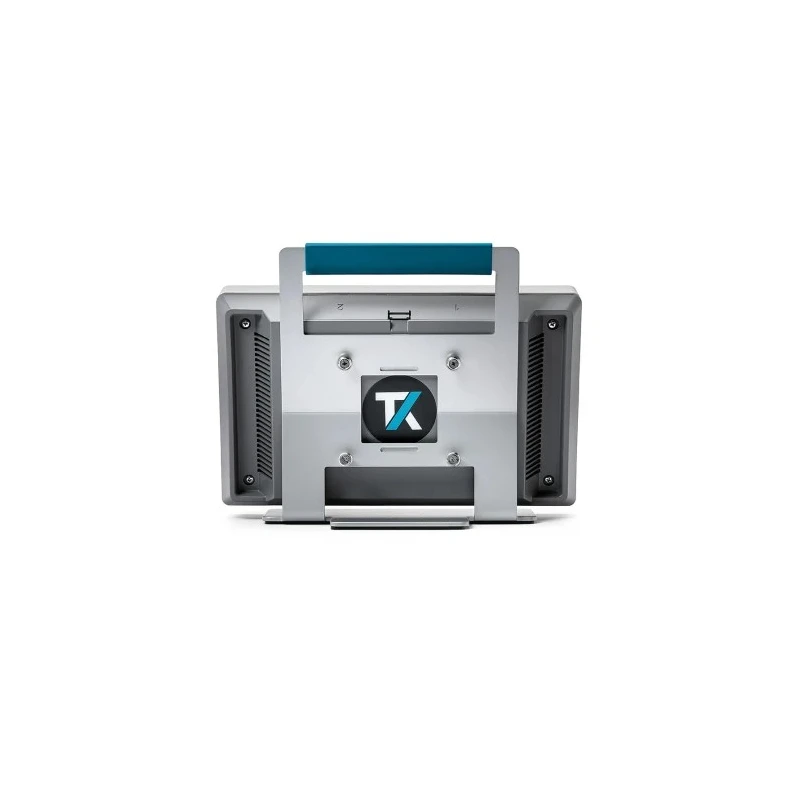

The compact form factor (H 210mm, W 344mm, D 40.4mm) fits well on crowded workbenches and includes VESA mount compatibility for flexible space-saving setups. Each unit ships with TPP0200 200 MHz, 10x probes (one per channel), an instrument stand, external power supply, embedded user help, installation and safety manual, and calibration certificate ensuring traceability to national and international standards.

The integrated view and control functionality via built-in VNC server enables remote operation from a computer or mobile device, facilitating convenient monitoring and control in the laboratory or industrial settings.

Tektronix MSO22 2-BW-100 excels in various applications such as industrial troubleshooting, electronics manufacturing testing, embedded systems development, and education, while maintaining compliance with CE, RoHS, and UL safety standards.

Compact and lightweight design suitable for portable use and field testing. Includes 10.1-inch intuitive capacitive touchscreen for easy operation. Supports multiple communication protocols including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB.

Battery powered with optional lithium-ion battery pack providing up to 8 hours of operation. Compatible with extensive Tektronix probe catalog and accessories for various test applications. Features a bench space saver design with VESA mount compatibility.

Offers advanced mixed signal features with 16 digital channels optional upgrade. Includes calibration certificate and a one-year warranty covering parts and labor. Built-in VNC server allows remote control from PC, tablet, or smartphone.
