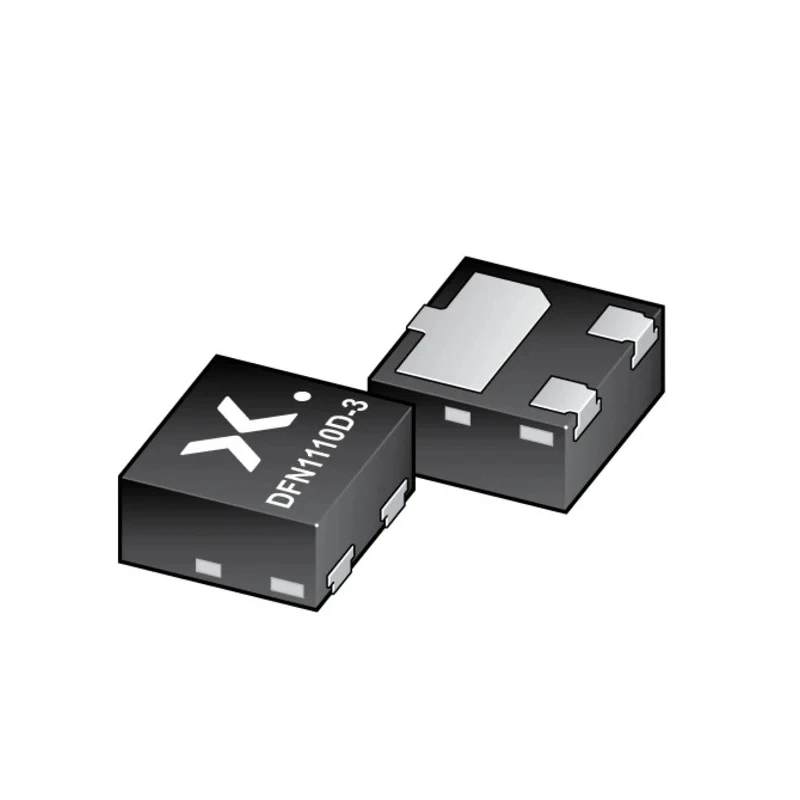

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1110D-3, 27V Reverse Stand-off, 2.5A Peak Pulse PESD2CANFD27V-QBZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 1.1mm |
| Model | PESD2CANFD27V-QBZ |
| Width | 0.48mm |
| Mount Type | Surface |
| Series | PESD2CANFD27V-QB |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 44V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28V |
| Maximum Reverse Stand-off Voltage Vwm | 27V |
| Maximum Peak Pulse Current Ippm | 2.5A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Provides ESD protection up to 20 kV according to IEC 61000-4-2 standard.
- Features low clamping voltage of 33 V at 1 A peak pulse current.
- Compact 1.1 mm length, 1 mm height, and 0.48 mm width DFN1110D-3 surface mount package.
- Maximum reverse stand-off voltage of 27 V and breakdown voltage minimum 28 V.
- Withstands peak pulse current up to 2.5 A to protect sensitive electronics.
- Designed to operate across a temperature range from -65°C to 150°C.
- Low capacitance of 6 pF ensures minimal signal distortion in high-speed circuits.
- AEC-Q101 qualified for automotive reliability and performance standards.
Product Description
The Nexperia PESD2CANFD27V-QBZ is a bi-directional electrostatic discharge (ESD) protection diode designed for automotive applications, specifically to protect two in-vehicle network bus lines. Packaged in an ultra-compact 3-pin DFN1110D-3 leadless surface-mounted device (SMD) format, this diode provides robust protection against voltage surges and electrostatic events.
Featuring a maximum reverse stand-off voltage (VRWM) of 27 V and a minimum breakdown voltage of 28 V, the device ensures safe operation under transient conditions. It can withstand peak pulse currents (Ippm) up to 2.5 A, providing effective clamping at 44 V to shield sensitive semiconductor components from damage.
With a compact size of 1.1 mm length, 1 mm height, and 0.48 mm width, the diode suits high-density PCB designs in automotive electronic systems. Its low capacitance of 6 pF minimizes signal interference, crucial for preserving signal integrity in automotive communication lines.
Designed for a wide operating temperature range from -65°C up to 150°C, this diode maintains reliable performance under harsh environmental conditions commonly encountered in automotive and industrial applications. The component is compliant with IEC 61000-4-2 for ESD protection and meets RoHS standards, ensuring environmental safety.
The device is qualified to the AEC-Q101 automotive standard, guaranteeing its suitability for automotive system integration. Its surface mount package design includes side wettable flanks, facilitating automated assembly and inspection processes.
Provides ESD protection up to 20 kV as per IEC 61000-4-2. Low clamping voltage and low capacitance for signal integrity. Compact surface-mount package for space-saving PCB design. Wide operating temperature range suitable for automotive use.
Compliant with automotive AEC-Q101 and RoHS standards.
This Nexperia ESD Protection Diode series is ideal for industrial, automotive, and manufacturing applications that demand high reliability and fast response to ESD events. Incorporate this diode into automotive network systems to enhance circuit durability and lifespan.
Explore EnvMart’s extensive selection of semiconductor protection devices for automotive and industrial electronics designed to optimize system safety and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 27 V.
It can withstand peak pulse currents up to 2.5 A.
The dimensions of the DFN1110D-3 package are 1.1 mm in length, 1 mm in height, and 0.48 mm in width.
The clamping voltage at 1 A peak pulse current is 44 V.
The operating temperature range is from -65°C to 150°C.
It complies with IEC 61000-4-2 for ESD protection and RoHS standards for environmental safety.
Yes, it is qualified to the AEC-Q101 automotive standard, ensuring its reliability for automotive use.
The minimum breakdown voltage is 28 V.
The capacitance is 6 pF, which helps minimize signal distortion in high-speed circuits.
This diode has 3 pins.
It supports surface mounting.
The country of origin for this product is India.
