Nexperia Bi-Directional ESD Protection Diode, 3-Pin DFN1110D-3, 27V Reverse Stand-off, 1.8A Peak Pulse PESD2CANFD27U-QBZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 1.1mm |
| Model | PESD2CANFD27U-QBZ |
| Width | 0.47mm |
| Mount Type | Surface |
| Series | PESD2CANFD27U-QB |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 3 |
| Clamping Voltage VC | 45V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28V |
| Maximum Reverse Stand-off Voltage Vwm | 27V |
| Maximum Peak Pulse Current Ippm | 1.8A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- This 3-pin diode comes in an ultra-small DFN1110D-3 surface-mount package with 1.1 mm length and 0.47 mm width.
- It provides a reverse stand-off voltage of 27 volts and a minimum breakdown voltage of 28 volts for reliable protection.
- The device supports an ultra-low capacitance of 4.0 pF, minimizing signal distortion.
- Offers a maximum peak pulse current of 1.8A and clamps voltage at 45 volts to safeguard circuits.
- IEC 61000-4-2 and RoHS compliant, with automotive-grade AEC-Q101 certification for durability.
- Operates over a wide temperature range from -65°C to 150°C for harsh environments.
- Features side wettable flanks for improved board inspection and automated assembly.
Product Description

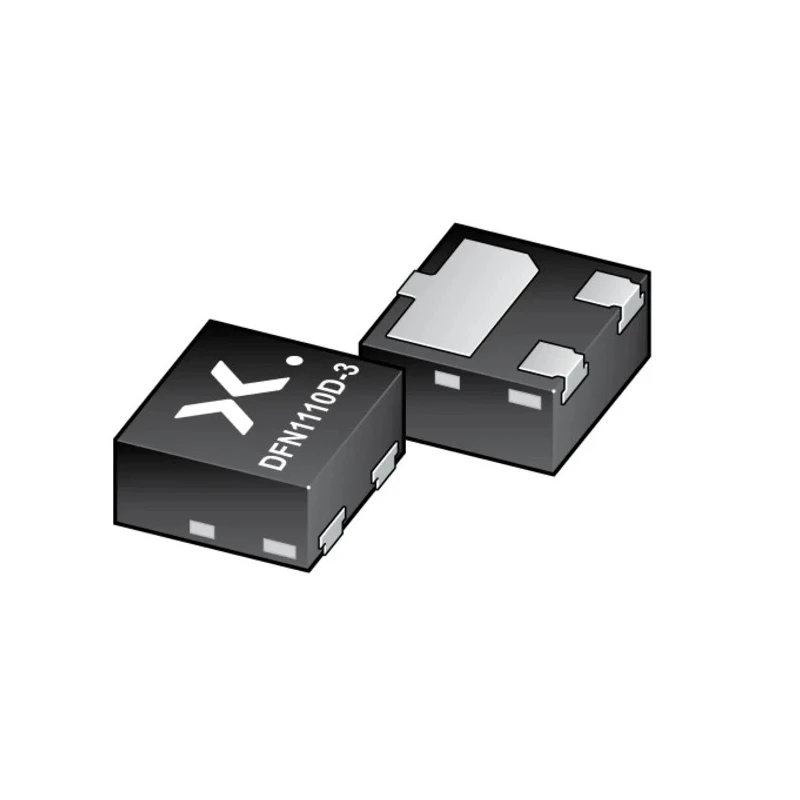

Nexperia PESD2CANFD27U-QBZ Bi-Directional ESD Protection Diode, model PESD2CANFD27U-QBZ, is an advanced semiconductor protection device designed to safeguard sensitive automotive in-vehicle network bus lines and industrial electronics against electrostatic discharge (ESD) damage. This diode features a bi-directional design housed in an ultra-compact 3-pin DFN1110D-3 (SOT8015) leadless surface-mounted device (SMD) package with side wettable flanks to facilitate assembly line inspection and mounting reliability.
With a maximum reverse stand-off voltage of 27 V and a minimum breakdown voltage of 28 V, this device efficiently protects circuits from transient voltage spikes. The diode’s low clamping voltage of 45 V at a 1.8 A peak pulse current ensures minimal stress on downstream components during ESD events. The ultra-low capacitance of 4.0 pF helps maintain signal integrity, making it suitable for high-frequency data lines.
Designed to comply with IEC 61000-4-2 and RoHS standards and qualified to the stringent automotive AEC-Q101 standard, the PESD2CANFD27U-QBZ reliably operates in a wide temperature range from -65 °C up to 150 °C. It provides superior protection even under harsh automotive and industrial operating conditions.
Compact 3-pin DFN1110D-3 surface-mount package with dimensions Length 1.1 mm, Width 0.47 mm, Height 1 mm. Reverse stand-off voltage VRWM: 27 V and breakdown voltage Vbr: 28 V for robust circuit protection. Ultra-low capacitance Cd: 4.0 pF to minimize signal distortion.
Maximum peak pulse current Ippm: 1.8 A with clamping voltage VC of 45 V. Automotive-grade qualification to AEC-Q101 ensures high reliability. Wide operating temperature range from -65 °C to 150 °C for industrial applications.
This diode is ideal for use in automotive network interfaces, industrial control systems, and other electronic circuits requiring fast and effective transient voltage suppression. Its small size allows for compact PCB designs without sacrificing performance.
Explore the comprehensive range of semiconductor protection devices available and enhance your product’s robustness with Nexperia’s trusted solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 27 V.
The clamping voltage at a peak pulse current of 1.8 A is 45 V.
This model operates over a wide temperature range from -65 °C to 150 °C.
The diode features an ultra-low capacitance of 4.0 pF, which helps minimize signal distortion.
The DFN1110D-3 package has dimensions of 1.1 mm in length, 0.47 mm in width, and 1 mm in height.
Yes, it complies with RoHS and IEC 61000-4-2 standards, and is qualified to the AEC-Q101 automotive standard.
The minimum breakdown voltage of this diode is 28 V.
This model has a 3-pin configuration.
The maximum peak pulse current this diode can handle is 1.8 A.
It is designed for surface mounting.
This diode is suitable for automotive network interfaces, industrial control systems, and other electronic circuits requiring transient voltage suppression.
The side wettable flanks are designed to improve board inspection and facilitate automated assembly.
