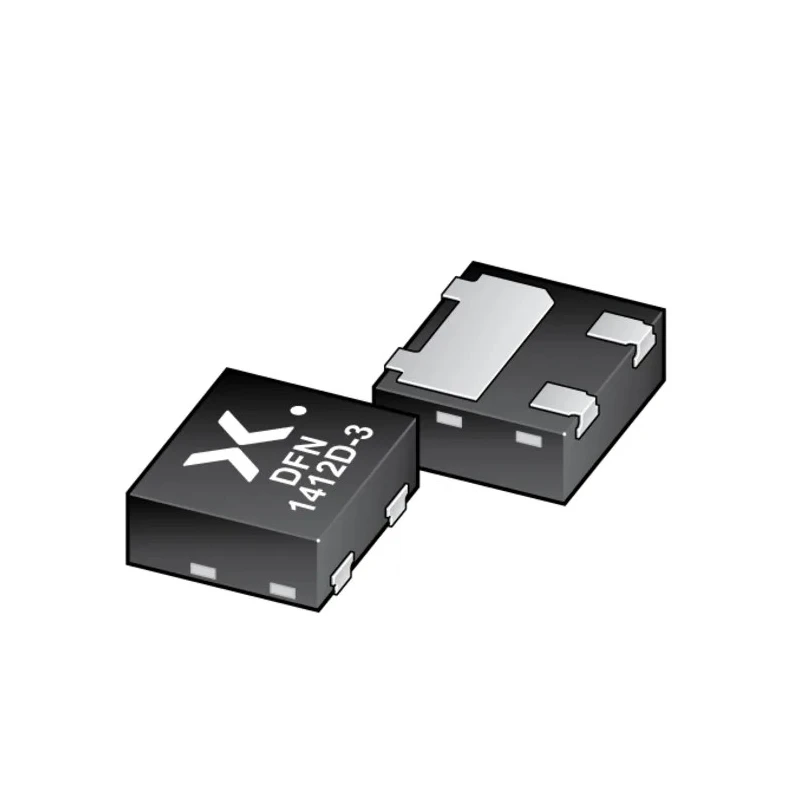

Nexperia Bi-Directional ESD Protection Diode, 3-Pin DFN1412D-3 Package, 24 V Reverse Stand-off Voltage PESD2CANFD24V-QCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.2mm |
| Length | 1.4mm |
| Model | PESD2CANFD24V-QCZ |
| Width | 0.47mm |
| Mount Type | Surface |
| Series | PESD2CANFD24V-QC |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 42V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25.5V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 2.6A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- The device features a low clamping voltage of 42 V to protect sensitive circuits effectively.
- Supports a maximum peak pulse current of 2.6 A for transient surge suppression.
- Compact ultra-small DFN1412D-3 package with side wettable flanks for enhanced PCB mounting reliability.
- Offers low capacitance of 6 pF, making it suitable for high-speed data lines and automotive networks.
- Qualified to AEC-Q101 automotive standards ensuring quality and reliability in harsh environments.
- Compliant with IEC 61000-4-2 and RoHS standards for environmental and electrostatic discharge protection.
Product Description
Nexperia PESD2CANFD24V-QCZ is a bi-directional ESD protection diode designed for the safeguarding of two automotive in-vehicle network bus lines against electrostatic discharges. Encased in a compact DFN1412D-3 surface-mount package with side wettable flanks, it enables reliable PCB assembly and enhances manufacturing yields.
This device has a minimum breakdown voltage of 25.5 V and a maximum reverse stand-off voltage of 24 V, offering robust protection under normal operation conditions. It can handle a peak pulse current of up to 2.6 A and features a low clamping voltage of 42 V to effectively clamp surge voltages.
With a low capacitance of 6 pF, this diode is well suited for high-frequency data communication lines and automotive applications, where signal integrity is critical. It operates reliably over a wide temperature range from -65°C to 150°C and complies with the stringent automotive AEC-Q101 standard.
The PESD2CANFD24V-QCZ diode meets international standards including IEC 61000-4-2 for electrostatic discharge immunity and RoHS compliance for environmental safety. Its ultra-small dimensions (1.4 mm length, 0.47 mm width, and 1.2 mm height) make it ideal for space-constrained applications in the automotive and industrial sectors.
Low clamping voltage ensures effective transient voltage suppression. High peak pulse current rating provides enhanced surge protection. Automotive standard compliance guarantees reliability in demanding environments. Low capacitance supports high-speed data signal integrity.
Compact surface mount package facilitates miniaturized PCB designs. Wide operating temperature range from -65°C to 150°C.
This diode is a reliable choice for engineers and manufacturers designing robust protection into automotive bus systems, industrial communication interfaces, and other sensitive electronic circuits. For further information and design resources, Nexperia's technical documents and design tools are easily accessible.
Explore related ESD Protection Diodes and other semiconductor devices for enhanced Electrostatic Discharge protection solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of the PESD2CANFD24V-QCZ is 24 V.
It features a low clamping voltage of 42 V, which helps in effectively clamping surge voltages.
This model can handle a maximum peak pulse current of 2.6 A for transient surge suppression.
The dimensions of the DFN1412D-3 package are 1.4 mm in length, 0.47 mm in width, and 1.2 mm in height.
It operates reliably over a wide temperature range from -65°C to 150°C.
Yes, it is qualified to AEC-Q101 automotive standards, ensuring quality and reliability in harsh environments.
The PESD2CANFD24V-QCZ has a low capacitance of 6 pF, making it suitable for high-speed data lines.
It complies with IEC 61000-4-2 for electrostatic discharge immunity and RoHS standards for environmental safety.
This model uses a surface mount type for PCB assembly, which enhances manufacturing yields.
The PESD2CANFD24V-QCZ has a total of 3 pins.
The minimum breakdown voltage is 25.5 V, providing robust protection under normal operating conditions.
This diode is designed for safeguarding automotive in-vehicle network bus lines against electrostatic discharges and is suitable for sensitive electronic circuits.
