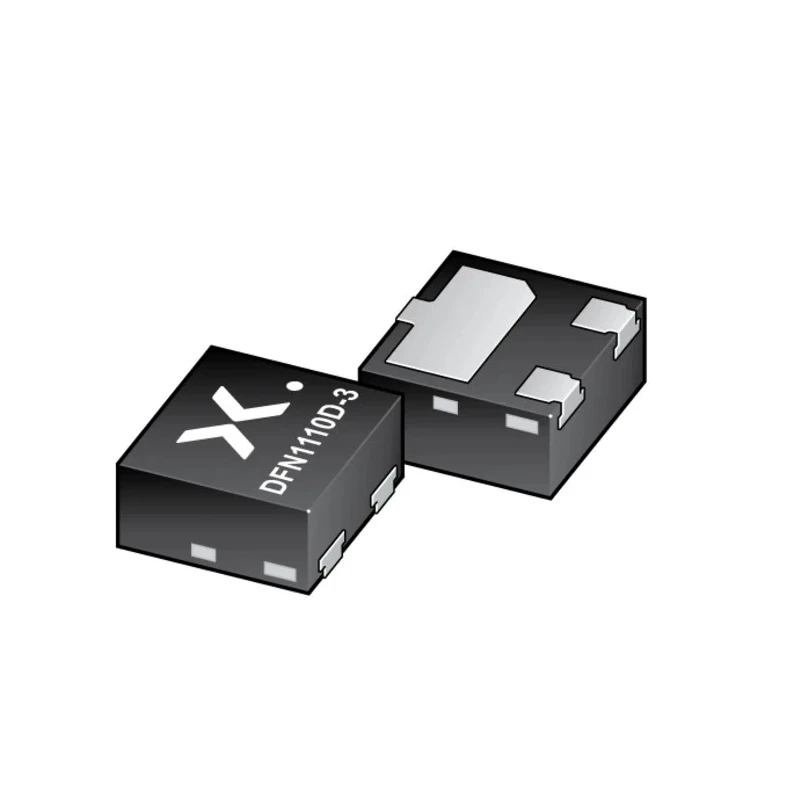

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1110D-3 PESD2CANFD24V-QBZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 1.1mm |
| Model | PESD2CANFD24V-QBZ |
| Width | 0.48mm |
| Mount Type | Surface |
| Series | PESD2CANFD24V-QB |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 3 |
| Clamping Voltage VC | 42V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25.5V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 1.9A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Provides bi-directional ESD protection with a minimum breakdown voltage of 25.5V.
- Operates with a maximum reverse stand-off voltage of 24V and low leakage current of 50nA.
- Features a low clamping voltage of 42V at a peak pulse current of 1.9A.
- Packaged in an ultra small 3-pin DFN1110D-3 surface mount package.
- Supports operating temperatures from -65°C to 150°C.
- Meets AEC-Q101 automotive standard and RoHS compliance.
- Low capacitance of approximately 6 pF ensures signal integrity.
- Designed specifically to protect automotive in-vehicle network bus lines from electrostatic discharge damage.
Product Description
Nexperia PESD2CANFD24V-QBZ is a bi-directional ESD protection diode designed for robust ESD safeguarding of automotive in-vehicle network bus lines. Packaged in a compact 3-pin DFN1110D-3 surface mount package, this device combines high performance with minimal PCB footprint.
The diode features a minimum breakdown voltage of 25.5V and maximum reverse stand-off voltage of 24V. Its low leakage current of 50nA and low capacitance of approximately 6 pF help maintain signal integrity in sensitive automotive electronics applications.
With a clamping voltage of 42V at 1.9A peak pulse current, this diode offers effective transient voltage suppression. Wide operating temperature range from -65°C up to 150°C and qualification to the AEC-Q101 automotive standard ensure suitability for harsh automotive environments.
Compliance with RoHS directives and IEC 61000-4-2 standard confirms environmentally safe manufacturing and reliable high-voltage ESD protection up to 23 kV.
Applications for this diode include protection of CAN bus, LIN bus, and other automotive communication lines from damaging electrostatic discharge events, making it essential for automotive electronics manufacturing, maintenance, and design.
Provides bi-directional ESD protection with a minimum breakdown voltage of 25.5V. Operates at maximum reverse stand-off voltage of 24V with low leakage current. Has a clamping voltage of 42V at peak pulse current of 1.9A.
Compact 3-pin DFN1110D-3 surface mount package with dimensions 1.1mm×1mm×0.48mm. Wide operating temperature from -65°C to 150°C for automotive environments. Meets AEC-Q101 automotive standard and IEC 61000-4-2 ESD protection standard.
Low capacitance of ~6 pF ensures minimal impact on signal lines. Ideal for protecting two automotive in-vehicle network bus lines from ESD. Explore more ESD Protection Diodes and automotive-grade semiconductor components in EnvMart's Electronics & Electricals category.
