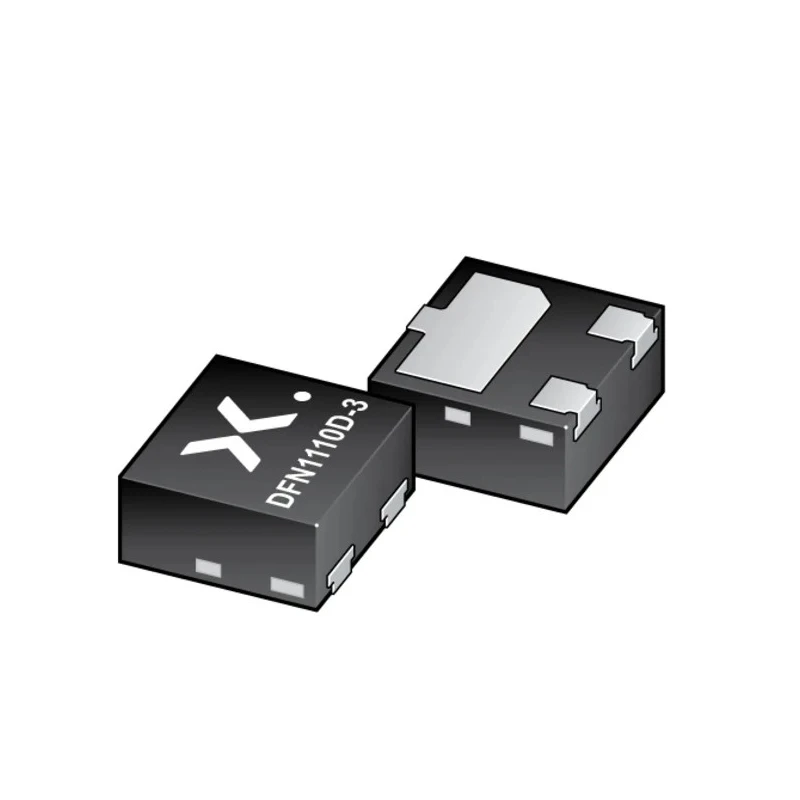

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1110D-3 PESD2CANFD27V-QBZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 1.1mm |
| Model | PESD2CANFD27V-QBZ |
| Width | 0.48mm |
| Mount Type | Surface |
| Series | PESD2CANFD27V-QB |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 44V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28V |
| Maximum Reverse Stand-off Voltage Vwm | 27V |
| Maximum Peak Pulse Current Ippm | 2.5A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- This diode offers a minimum breakdown voltage of 28 V.
- It supports a maximum reverse stand-off voltage of 27 V.
- With a clamping voltage of 44 V, it protects against voltage spikes effectively.
- The device provides ESD protection up to 20 kV according to IEC 61000-4-2 standards.
- It operates within a temperature range of -65°C to 150°C, suitable for automotive environments.
- The compact DFN1110D-3 leadless surface-mount package has dimensions of 1.1 mm length, 1.0 mm height, and 0.48 mm width.
- Capacitance is low at 6 pF, ensuring minimal signal interference.
- The diode is AEC-Q101 qualified for automotive applications.
Product Description
Nexperia PESD2CANFD27V-QBZ is a bi-directional ESD Protection Diode housed in an ultra small DFN1110D-3 leadless SMD plastic package with side wettable flanks. It is designed specifically to protect automotive in-vehicle network bus lines from electrostatic discharge damage, meeting rigorous automotive standards such as AEC-Q101.
This device features a minimum breakdown voltage of 28 V and a maximum reverse stand-off voltage of 27 V, making it effective against transient voltage spikes. It offers a low clamping voltage of 44 V at peak pulse current, enabling efficient suppression of voltage surges.
The diode supports ESD protection up to 20 kV as per IEC 61000-4-2 and ISO 10605 standards, providing robust safeguarding for sensitive electronic components. Its low capacitance of 6 pF allows it to maintain signal integrity in automotive communication lines.
The operating temperature range from -65°C to 150°C suits harsh automotive environments, ensuring reliable performance. The compact DFN1110D-3 package (1.1 mm x 1.0 mm x 0.48 mm) facilitates space-saving PCB designs with side wettable flanks for improved soldering reliability.
Typical uses include protection of automotive bus systems, communications lines, and sensitive semiconductor devices in industrial and automotive applications. This device complies with IEC 61000-4-2 and is RoHS compliant, contributing to environmentally friendly design.
This diode offers a minimum breakdown voltage of 28 V. It supports a maximum reverse stand-off voltage of 27 V. With a clamping voltage of 44 V, it protects against voltage spikes effectively. The device provides ESD protection up to 20 kV according to IEC 61000-4-2 standards.
It operates within a temperature range of -65°C to 150°C, suitable for automotive environments. The compact DFN1110D-3 leadless surface-mount package has dimensions of 1.1 mm length, 1.0 mm height, and 0.48 mm width. Capacitance is low at 6 pF, ensuring minimal signal interference.
The diode is AEC-Q101 qualified for automotive applications. Maximum peak pulse current capacity is 2.5 A. Maximum reverse leakage current is just 50 nA, ensuring energy efficiency.
For industrial and automotive semiconductor protection needs, the Nexperia PESD2CANFD27V-QBZ offers a reliable, compact, and efficient ESD protection solution. Explore more in our semiconductor diode selections and enhance your automotive circuit safety.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode offers a minimum breakdown voltage of 28 V.
It supports a maximum reverse stand-off voltage of 27 V.
The clamping voltage is 44 V, which helps protect against voltage spikes effectively.
It provides ESD protection up to 20 kV according to IEC 61000-4-2 standards.
It operates within a temperature range of -65°C to 150°C, suitable for automotive environments.
The compact DFN1110D-3 package has dimensions of 1.1 mm length, 1.0 mm height, and 0.48 mm width.
The capacitance is low at 6 pF, ensuring minimal signal interference.
The maximum peak pulse current capacity is 2.5 A.
The maximum reverse leakage current is 50 nA, ensuring energy efficiency.
Yes, it is AEC-Q101 qualified for automotive applications.
This model uses a surface mount type for installation.
It complies with IEC 61000-4-2 and is RoHS compliant, contributing to environmentally friendly design.
