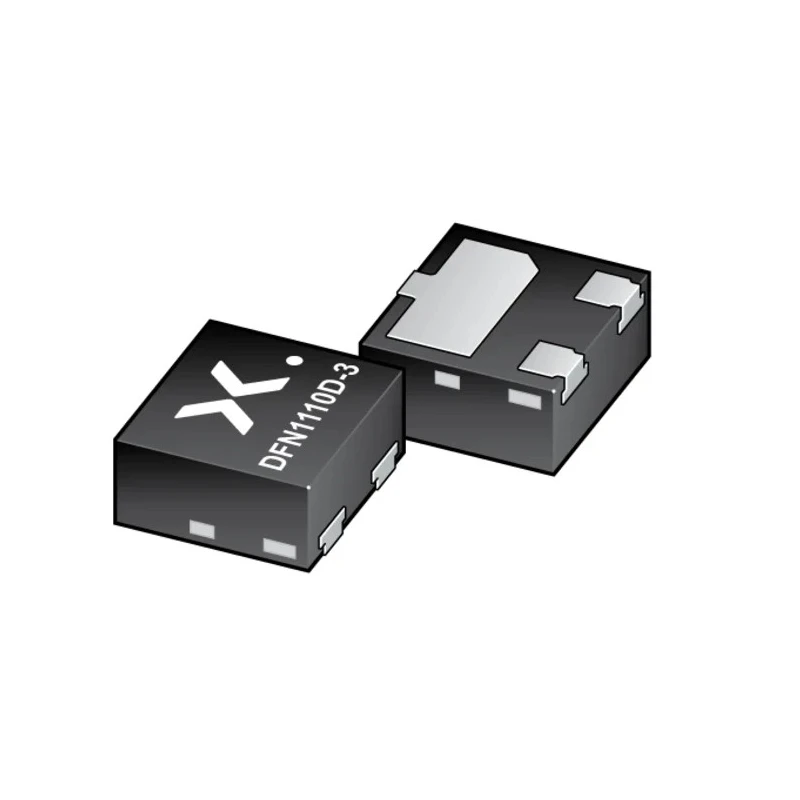

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1110D-3, 27 V Reverse Stand-off, 1.8 A Peak Pulse PESD2CANFD27U-QBZ

The Nexperia PESD2CANFD27U-QBZ is a bi-directional ESD Protection Diode designed to safeguard automotive in-vehicle network bus lines and other sensitive electronics from damaging electrostatic discharges and transient voltage spikes. Packaged in a small 3-Pin DFN1110D-3 surface mount device, this diode provides robust protection with a reverse stand-off voltage of 27 V and a minimum breakdown voltage of 28 V, making it ideal for automotive and industrial electronics applications.

This ESD diode features a low clamping voltage of 34 V at the peak pulse current, ensuring minimal voltage stress on protected circuits during transient events. It can absorb peak pulse currents up to 1.8 A with a maximum clamping voltage of 45 V, providing effective surge suppression for sensitive bus lines and data signals.

Qualified to automotive standard AEC-Q101, this device guarantees high reliability in harsh automotive environments. The operating temperature range from -65°C to +150°C supports various industrial and automotive applications operating under extreme temperature conditions.

The diode's ultra-compact physical dimensions - length of 1.1 mm, height of 1.0 mm, and width of 0.47 mm - fit well in high-density printed circuit board layouts, while its leadless DFN1110D-3 package with side wettable flanks enhances solder joint integrity and manufacturability.

Compliance with RoHS and IEC 61000-4-2 standards ensures that the diode meets international environmental and electrostatic discharge protection requirements. Supports bi-directional ESD protection suitable for automotive network bus lines.

Has a reverse stand-off voltage of 27 V and a breakdown voltage beginning at 28 V. Features a low clamping voltage of 34 V at peak pulse current, enabling effective surge absorption. Capable of handling a maximum peak pulse current of 1.8 A with a clamping voltage up to 45 V.

Automotive AEC-Q101 qualified, ensuring reliability under harsh conditions. Operates effectively from -65°C up to a maximum of 150°C. Ultra-small footprint with dimensions 1.1 mm length, 1.0 mm height, and 0.47 mm width for high-density PCB layouts.

Complies with RoHS and IEC 61000-4-2 standards for environmental and ESD protection requirements. Designed for surface mount technology with side wettable flanks for enhanced solder joint reliability.

This diode's reliable and compact design makes it suitable for use in automotive electronics, industrial equipment, communication devices, and other commercial electronics requiring robust ESD surge protection. EnvMart customers looking for high-quality ESD protection components will find this device fully meets stringent automotive and industrial standards.
