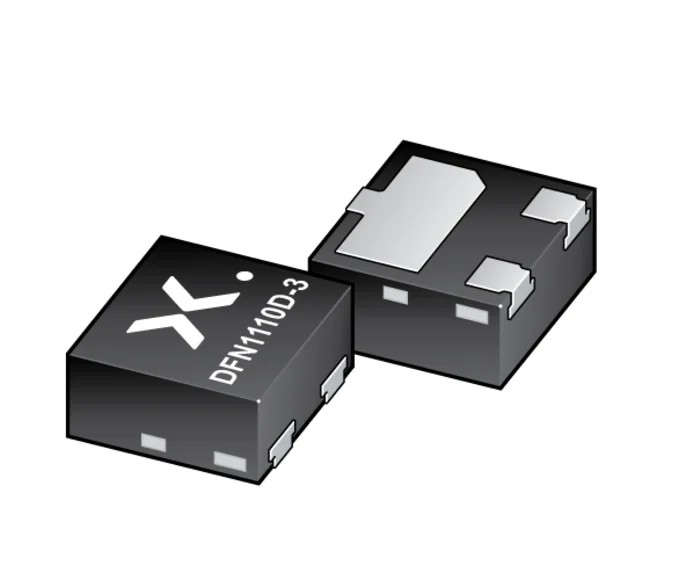

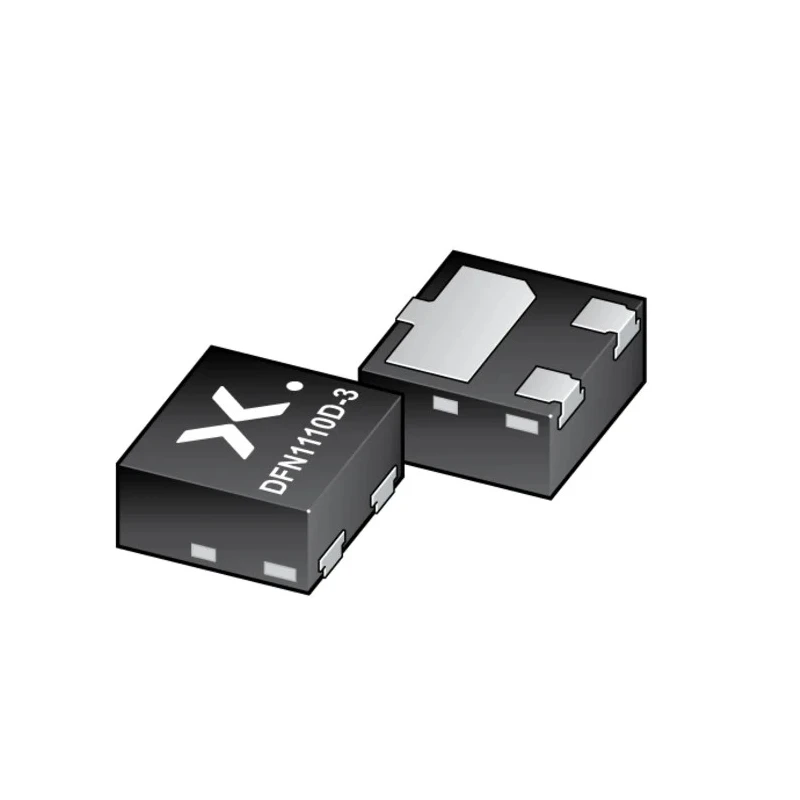

Nexperia Bi-Directional ESD Protection Diode 24V 3-Pin DFN1110D-3 PESD2CANFD24V-QBZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 1.1mm |
| Model | PESD2CANFD24V-QBZ |
| Width | 0.48mm |
| Mount Type | Surface |
| Series | PESD2CANFD24V-QB |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 3 |
| Clamping Voltage VC | 42V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25.5V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 1.9A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Bi-directional ESD protection diode for automotive in-vehicle network bus lines.
- Minimum breakdown voltage of 25.5 V with maximum reverse stand-off voltage of 24 V.
- Low capacitance of approximately 6 pF ensuring minimal signal distortion.
- Capable of clamping voltage of 42 V and peak pulse current of 1.9 A.
- Operates within a temperature range from -65°C to 150°C.
- Complies with RoHS and IEC 61000-4-2 standards for ESD protection.
- Qualified to Automotive AEC-Q101 standard for robust automotive performance.
- Ultra-small DFN1110D-3 surface mount package with dimensions 1.1 mm × 1.0 mm × 0.48 mm.
Product Description
Nexperia PESD2CANFD24V-QBZ is a high-performance Bi-Directional ESD Protection Diode housed in an ultra-compact DFN1110D-3 package featuring three pins and side wettable flanks for robust PCB mounting. This device is engineered to safeguard sensitive electronic circuits, particularly automotive in-vehicle network bus lines, against electrostatic discharge and transient voltage spikes.
The diode offers a minimum breakdown voltage of 25.5 V and a maximum reverse stand-off voltage of 24 V, delivering effective protection without interfering with signal integrity. With a low capacitance of 6 pF, it ensures minimal impact on high-speed data lines. It can clamp transient voltage up to 42 V at a peak pulse current of 1.9 A, making it suitable for harsh automotive and industrial environments.
Rated for operation across an extensive temperature range from -65°C to 150°C, this diode complies with stringent standards such as RoHS and IEC 61000-4-2, ensuring reliability and environmental compliance. Moreover, it is AEC-Q101 qualified, certifying its suitability for demanding automotive applications where quality and durability are critical.
The device comes in a 1.1 mm length, 1.0 mm height, and 0.48 mm width DFN1110D-3 package, supporting efficient surface mounting and compact designs. Its maximum reverse leakage current is limited to 50 nA to reduce power loss and improve efficiency.
Typical applications include protection of communication and data lines in automotive electronics, industrial controls, and other sensitive semiconductor components vulnerable to electrostatic events. This diode ensures prolonged device life and operational stability in complex electronic systems.
Bi-directional ESD protection for automotive and industrial buses. Low capacitance and leakage for high-speed signal paths. High peak pulse current capability for robust surge protection. Wide operating temperature range with automotive qualification.
Compact, surface mount DFN1110D-3 package for space-saving PCB layouts.
This product is ideal for engineers and designers seeking reliable ESD protection components for industrial, automotive, and consumer electronic applications. Explore the Nexperia PESD2CANFD24V-QBZ diode for dependable transient voltage suppression and enhanced device protection.
For more products like this, browse EnvMart's Semiconductor and ESD Protection Diode categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 25.5 V.
The maximum reverse stand-off voltage for this diode is 24 V.
It has a clamping voltage of 42 V.
The maximum peak pulse current rating is 1.9 A.
This diode operates within a temperature range from -65°C to 150°C.
The dimensions of the DFN1110D-3 package are 1.1 mm in length, 1.0 mm in height, and 0.48 mm in width.
This diode complies with RoHS and IEC 61000-4-2 standards for ESD protection.
Yes, it is qualified to the Automotive AEC-Q101 standard.
The maximum reverse leakage current is limited to 50 nA.
This diode features a 3-pin configuration.
It supports surface mounting.
It is suitable for protecting communication and data lines in automotive electronics and industrial controls.
