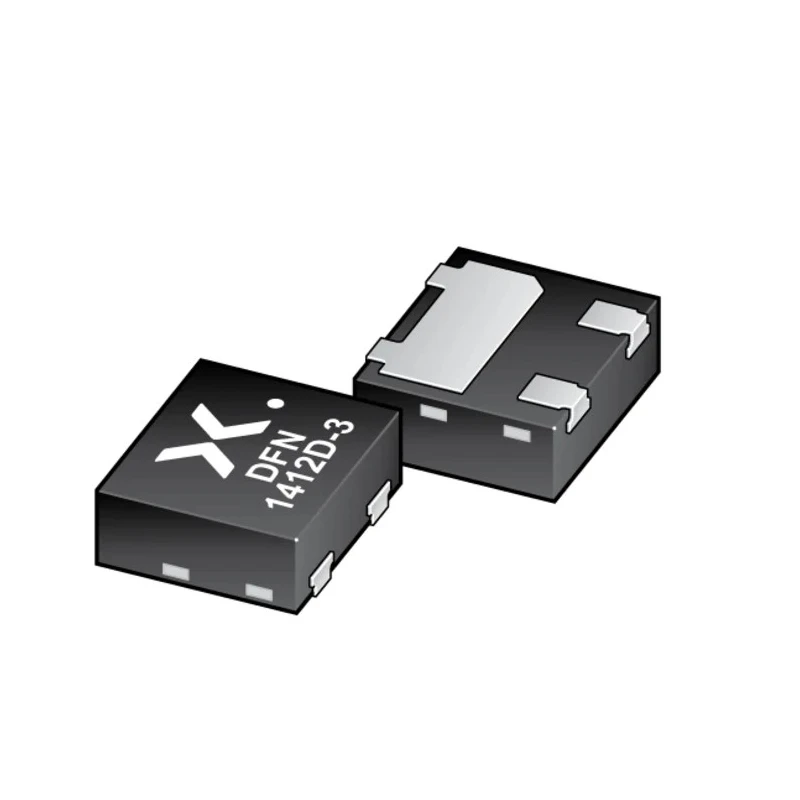

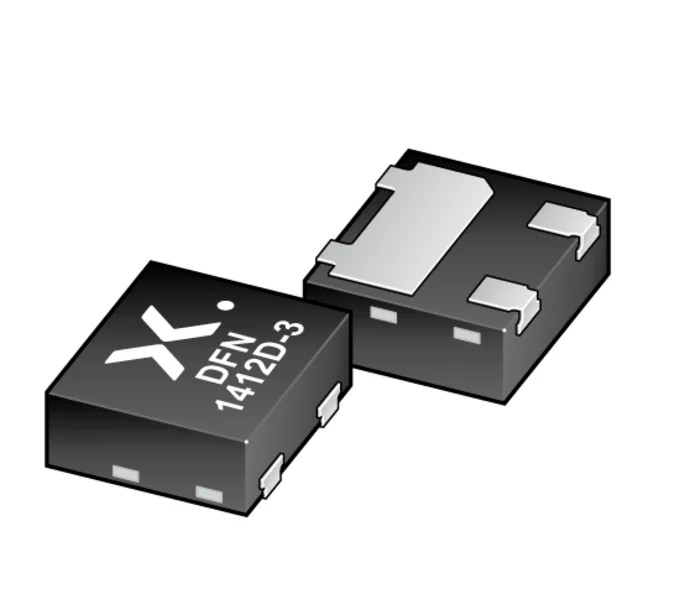

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1412D-3, 24V Reverse Stand-Off, 1.9A Peak Pulse PESD2CANFD24U-QCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.2mm |
| Length | 1.4mm |
| Model | PESD2CANFD24U-QCZ |
| Width | 0.48mm |
| Mount Type | Surface |
| Series | PESD2CANFD24U-QB |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 3 |
| Clamping Voltage VC | 43V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25.5V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 1.9A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- This diode offers bi-directional ESD protection with a low capacitance of 3.5 pF.
- It features a maximum reverse stand-off voltage of 24 V suitable for automotive applications.
- The device supports a maximum peak pulse current of 1.9 A for surge transients.
- Housed in a compact DFN1412D-3 surface mount package measuring 1.4 x 1.2 x 0.48 mm.
- Operates reliably over a temperature range from -65°C to 150°C.
- Offers a low clamping voltage of 43 V ensuring effective transient voltage suppression.
- Compliant with IEC 61000-4-2 and RoHS standards and qualified to automotive AEC-Q101 requirements.
- Designed with side wettable flanks for enhanced PCB solderability and inspection.
Product Description
Nexperia PESD2CANFD24U-QCZ Bi-Directional ESD Protection Diode in a 3-Pin DFN1412D-3 surface mount package provides essential protection for automotive in-vehicle network bus lines against electrostatic discharge and voltage transients.
Its ultra-small leadless SMD package with side wettable flanks supports compact PCB designs and reliable solder joints, making it ideal for automotive and industrial electronics.
The device exhibits a maximum reverse stand-off voltage of 24 V and a minimum breakdown voltage of 25.5 V, enabling it to clamp voltage spikes effectively. With a maximum peak pulse current of 1.9 A and a low clamping voltage of 43 V at IPP 1A, it safeguards sensitive semiconductor components from damage during high-voltage transient events.
This diode is capable of ESD protection up to 15 kV as per IEC 61000-4-2 and ISO 10605 testing standards, meeting stringent automotive quality and reliability demands through AEC-Q101 qualification. Its operating temperature range from -65°C to 150°C suits harsh environmental conditions encountered in automotive and industrial applications.
Typical use cases include automotive communication systems, industrial control electronics, and other applications requiring robust electrostatic discharge and transient voltage suppression within a compact footprint.
Bi-Directional ESD protection up to 15 kV IEC 61000-4-2. Compact DFN1412D-3 package for space-saving surface mounting. Low capacitance of 3.5 pF ensures signal integrity on data lines. Wide operating temperature range from -65°C to 150°C.
AEC-Q101 qualified for automotive reliability standards. Low leakage current of 50 nA minimizes power loss. Compliant with RoHS and IEC 61000-4-2 standards. Designed for automotive in-vehicle network bus line protection.
Explore EnvMart for a comprehensive range of semiconductor protection components and automotive-grade discrete devices by Nexperia and other leading manufacturers. Find reliable solutions suited for industrial, automotive, and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 24 V.
It supports a maximum peak pulse current of 1.9 A for surge transients.
The DFN1412D-3 package measures 1.4 mm in length, 1.2 mm in width, and 0.48 mm in height.
The clamping voltage at a peak pulse current of 1 A is 43 V.
It operates reliably over a temperature range from -65°C to 150°C.
It is compliant with RoHS and IEC 61000-4-2 standards.
Yes, it is qualified to automotive AEC-Q101 requirements.
This diode has a low capacitance of 3.5 pF.
The minimum breakdown voltage is 25.5 V.
It is designed with side wettable flanks for enhanced PCB solderability and inspection.
It is suitable for automotive communication systems, industrial control electronics, and applications requiring robust ESD protection.
The maximum reverse leakage current is 50 nA.
