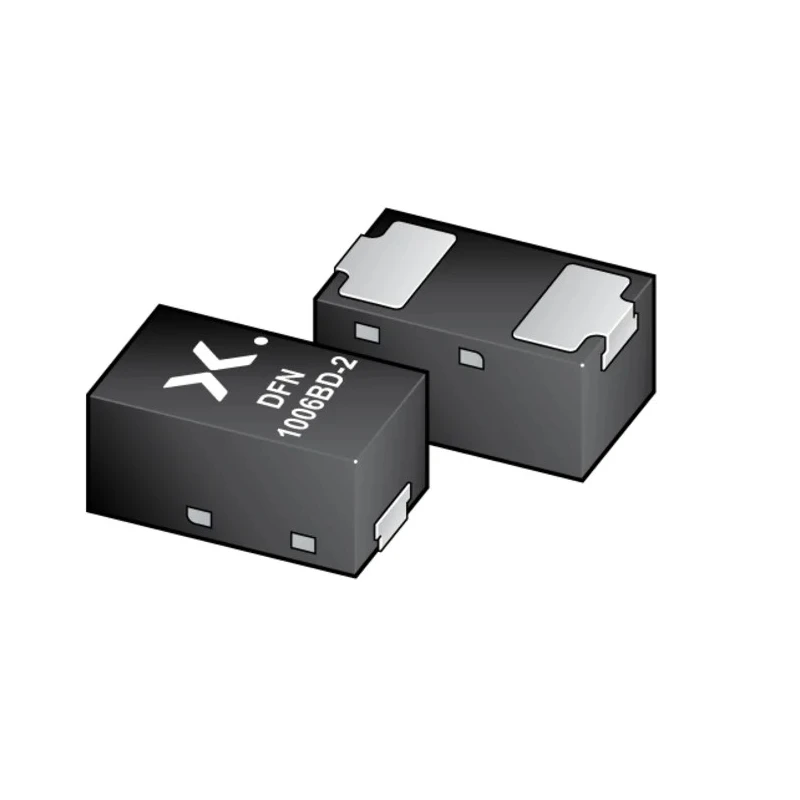

Nexperia Bi-Directional ESD Protection Diode 2-Pin DFN1006BD-2, 27 V Reverse Stand-off Voltage, 3 A Peak PESD1IVN27-LSYL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.6mm |
| Length | 1mm |
| Model | PESD1IVN27-LSYL |
| Width | 0.47mm |
| Mount Type | Surface |
| Series | PESD1IVN27-LS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 2 |
| Clamping Voltage VC | 45V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28V |
| Maximum Reverse Stand-off Voltage Vwm | 27V |
| Maximum Peak Pulse Current Ippm | 3A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Protects in-vehicle network bus lines from electrostatic damage effectively.
- Surface-mounted device in ultra-small 2-pin DFN1006BD-2 package.
- Supports electrostatic discharge up to 30 kV according to IEC 61000-4-2 standard.
- Offers low clamping voltage of 36 V at 3 A peak pulse current.
- Extremely low leakage current below 1 nA for efficient performance.
- Qualified to automotive AEC-Q101 standard ensuring high reliability.
- Operating temperature range from -65°C to 150°C for harsh environments.
- RoHS compliant and meets IEC 61000-4-2 standards for environmental compatibility.
Product Description
The Nexperia PESD1IVN27-LSYL is a bi-directional electrostatic discharge (ESD) protection diode in an ultra-compact DFN1006BD-2 (SOD882BD) surface-mount package featuring side-wettable flanks. It is engineered primarily to safeguard automotive in-vehicle network bus lines from damages caused by electrostatic events.
This device supports a reverse stand-off voltage of 27 V and clamps at 36 V when subjected to a peak pulse current of 3 A, providing robust protection. It withstands ESD pulses up to 30 kV as per IEC 61000-4-2 and ISO 10605 standards, making it highly effective in environments prone to electrostatic interference.
With an ultra-low leakage current below 1 nA, the diode ensures minimal power loss. It is qualified according to the stringent automotive AEC-Q101 standard, guaranteeing reliability in automotive and harsh industrial conditions. The operating temperature range between -65°C and 150°C broadens its application in diverse environments.
The compact footprint with dimensions of 1 mm in length, 0.6 mm in height, and 0.47 mm in width makes it suitable for space-constrained designs. RoHS compliance and adherence to IEC 61000-4-2 standards underscore its environmentally compliant design.
Protects sensitive automotive circuits from high-voltage ESD events. Compact surface-mount package saves PCB space and allows for automated assembly. Meets automotive industry quality and reliability standards. Extends device and system lifetime in industrial and automotive applications.
Operates reliably across wide temperature ranges encountered in vehicular environments.
This product is ideal for use in automotive, industrial electronics, and other environments requiring reliable ESD protection. Explore our Electronics & Electricals category for more semiconductor and diode solutions.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The reverse stand-off voltage of this model is 27 V.
It supports a maximum peak pulse current of 3 A.
The clamping voltage is 36 V when subjected to a peak pulse current of 3 A.
The dimensions of the DFN1006BD-2 package are 1 mm in length, 0.6 mm in height, and 0.47 mm in width.
The operating temperature range is from -65°C to 150°C.
It is RoHS compliant and meets the IEC 61000-4-2 standards.
Yes, it is qualified to the automotive AEC-Q101 standard, ensuring high reliability in automotive environments.
The maximum reverse leakage current is below 1 nA.
This model uses a surface mount type.
It is designed to protect in-vehicle network bus lines from electrostatic damage.
It can withstand ESD pulses up to 30 kV according to IEC 61000-4-2 and ISO 10605 standards.
It is a bi-directional ESD protection diode.
