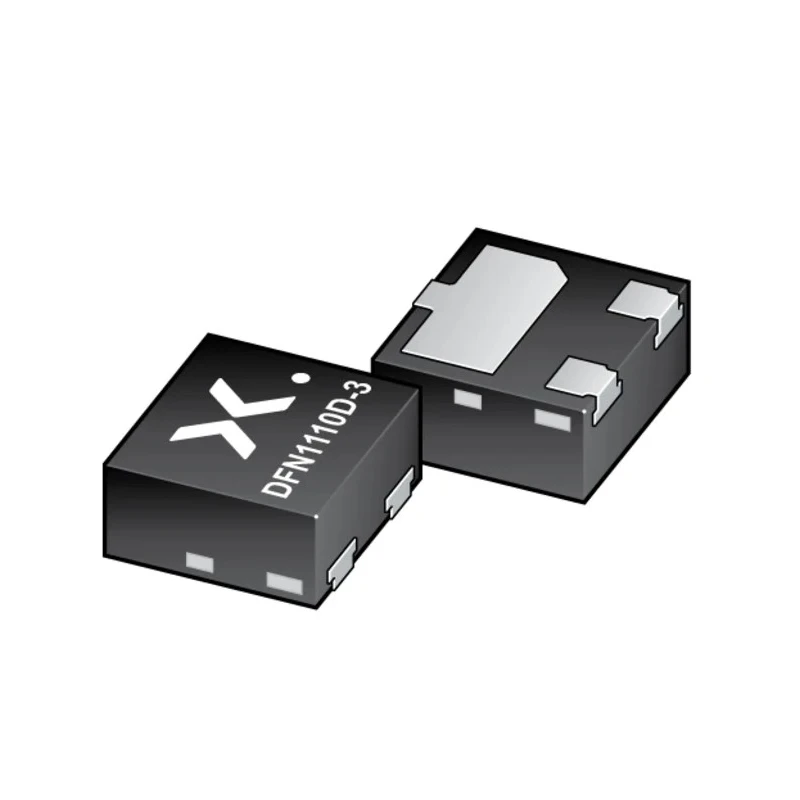

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1110D-3 PESD2CANFD24U-QBZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 1.1mm |
| Model | PESD2CANFD24U-QBZ |
| Width | 0.48mm |
| Mount Type | Surface |
| Series | PESD2CANFD24U |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 43V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25.5V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 1.4A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Bi-Directional ESD protection diode in a compact surface mount DFN1110D-3 package.
- Minimum breakdown voltage of 25.5 V ensuring robust voltage tolerance.
- Supports maximum reverse stand-off voltage of 24 V and peak pulse current of 1.4 A.
- Low clamping voltage of 43 V for effective surge suppression.
- Wide operating temperature range from -65°C to 150°C for automotive-grade reliability.
- Extremely low reverse leakage current of 50 nA minimizes leakage losses.
- Low capacitance of 3.5 pF minimizes signal interference on data lines.
- Compliant with IEC 61000-4-2 and RoHS standards for safety and environmental compliance.
Product Description
Nexperia PESD2CANFD24U-QBZ is a high-performance Bi-Directional Electrostatic Discharge (ESD) protection diode designed in a compact 3-pin DFN1110D-3 leadless surface mount plastic package. This device is engineered to safeguard automotive in-vehicle network data lines and other sensitive electronic circuits from damage resulting from ESD events.
The diode features a minimum breakdown voltage of 25.5 V and a maximum reverse stand-off voltage of 24 V, providing strong clamping action with a maximum clamping voltage of 43 V at peak pulse current of 1.4 A. It offers low capacitance of 3.5 pF, making it ideal for use on high-speed data lines with minimal signal distortion.
Designed for harsh environments, the diode supports a broad operating temperature range from -65°C to 150°C, meeting automotive and industrial operating requirements. The extremely low reverse leakage current of 50 nA reduces power losses and enhances the overall efficiency of protected systems.
This device complies with international standards including IEC 61000-4-2 for electrostatic discharge immunity and RoHS environmental directives. Additionally, it is AEC-Q101 qualified, ensuring it meets stringent automotive quality standards.
The ultra-compact DFN1110D-3 package with side wettable flanks enables reliable PCB assembly and inspection, making it well-suited for modern automated electronic manufacturing processes.
Bi-Directional ESD protection in a space-saving surface mount package. Robust voltage rating ensures reliable circuit protection. Low capacitance preserves signal integrity on data lines. Wide temperature range supports automotive and industrial applications.
Complies with IEC 61000-4-2 and RoHS standards. AEC-Q101 qualification for automotive usage.
This Nexperia ESD protection diode is ideal for protecting automotive in-vehicle network bus lines, consumer electronics, telecommunications equipment, and industrial control systems requiring robust ESD protection. For more products in the semiconductor and ESD Protection Diode categories, explore the EnvMart catalog.
