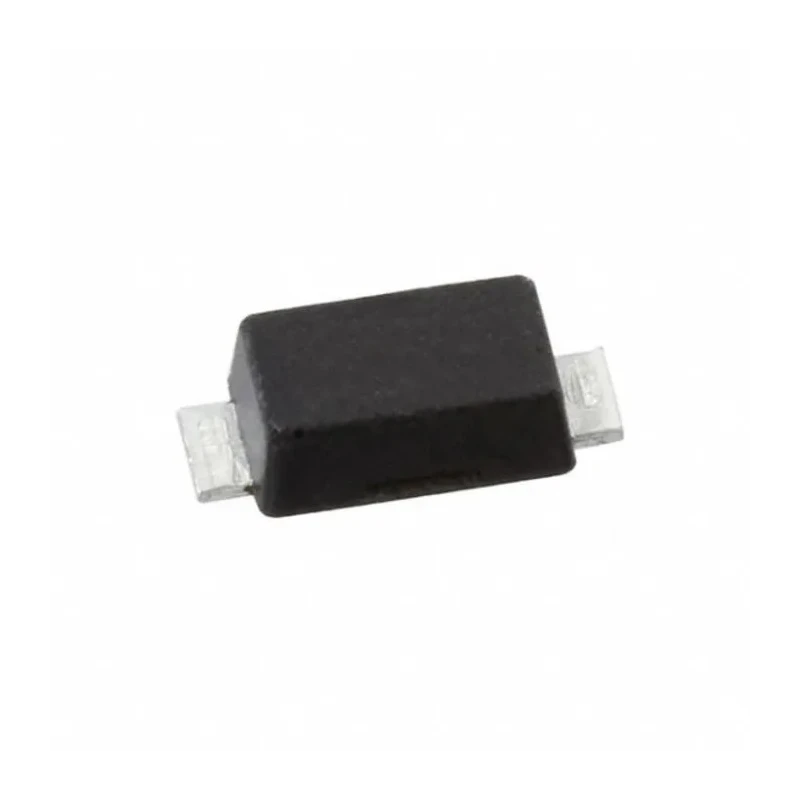

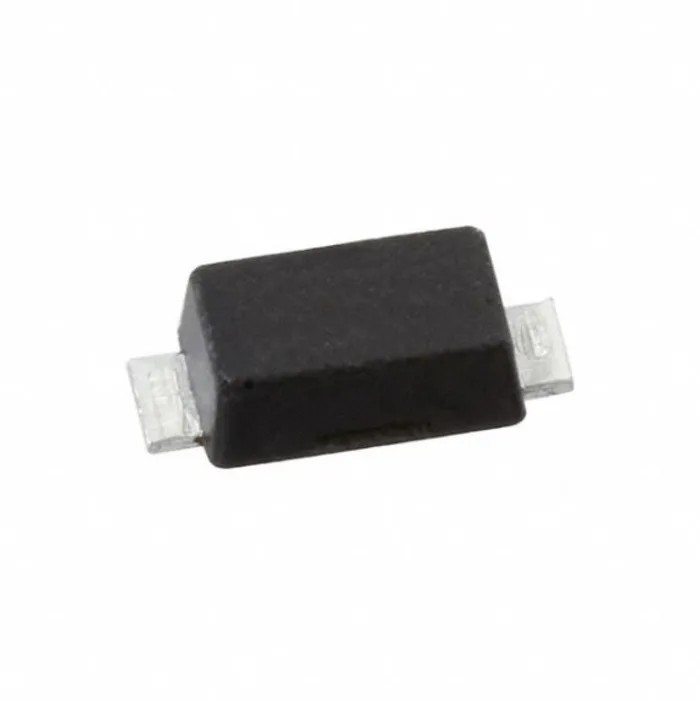

STMicroelectronics 200 V 1 A Ultrafast Recovery Rectifier & Schottky Diode SOD-123FL STTH1R02ZFY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STTH1R02ZFY |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123FL |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- This diode features a maximum continuous forward current of 1 A.
- It has a peak reverse repetitive voltage rating of 200 V.
- The maximum forward voltage is 1 V ensuring low conduction losses.
- Operating temperature ranges from -40°C to 175°C.
- Peak non-repetitive forward surge current is rated at 25 A.
- It employs a surface mount technology with a compact SOD-123FL package that saves space.
- The part is RoHS compliant and ECOPACK2 certified for environmental safety.
- It is especially designed for reverse battery protection in automotive circuits.
Product Description
STMicroelectronics STTH1R02ZFY is a 200 V, 1 A ultrafast recovery rectifier and Schottky diode housed in a compact SOD-123FL surface mount package. It is engineered primarily for energy recovery and reverse battery protection functions in automotive applications. This device offers very low conduction losses and negligible switching losses, making it highly efficient for power-sensitive environments.
The diode supports a continuous forward current up to 1 A and a peak reverse repetitive voltage of 200 V, ensuring robust performance under harsh electrical conditions. It can withstand peak non-repetitive forward surge currents as high as 25 A, which provides excellent transient tolerance. Its maximum forward voltage is just 1 V, which helps minimize power dissipation.
Designed to operate in extreme environments, the device supports a wide operating temperature range from -40°C to 175°C, suitable for automotive and industrial conditions. This rectifier diode is RoHS compliant and certified under ECOPACK2 environmental standards, adhering to the latest regulations for reduced hazardous substances.
The STTH1R02ZFY diode features fast switching capabilities with minimal forward and reverse recovery times, enhancing overall system efficiency and reducing electromagnetic interference risks. Its high junction temperature tolerance further supports reliable long-term operation in demanding applications.
This diode is ideal for integration in automotive energy recovery systems, power converters, and reverse battery protection circuits. Its SOD-123FL package allows for significant PCB space savings, contributing to compact, efficient electronic designs.
Maximum continuous forward current of 1 A. Peak reverse repetitive voltage rating of 200 V. Low forward voltage drop of 1 V reducing conduction losses. Wide operating temperature range from -40°C to 175°C. Surface mount SOD-123FL package for compact PCB layout.
RoHS and ECOPACK2 compliant for environmental safety. Fast switching with negligible switching losses. Designed for automotive reverse battery protection and energy recovery. Peak surge current rating of 25 A for transient resilience.
High junction temperature capability ensures durability. Explore EnvMart for a comprehensive range of semiconductor diodes and similar discrete components engineered for automotive, industrial, and electronic design applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics STTH1R02ZFY diode is 1 A.
This model has a peak reverse repetitive voltage rating of 200 V.
The maximum forward voltage drop for this diode is 1 V, which helps reduce conduction losses.
The operating temperature range for the STTH1R02ZFY is from -40°C to 175°C.
The peak non-repetitive forward surge current rating for this diode is 25 A.
It uses a surface mount SOD-123FL package, which is compact and saves PCB space.
Yes, it is RoHS compliant and certified under ECOPACK2 for environmental safety.
It is designed primarily for automotive applications, particularly for reverse battery protection and energy recovery functions.
This model features fast switching capabilities with negligible switching losses, enhancing overall system efficiency.
The STMicroelectronics STTH1R02ZFY diode is manufactured in India.
The low forward voltage drop of 1 V minimizes power dissipation, which is beneficial for power-sensitive applications.
This diode is manufactured by STMicroelectronics.
