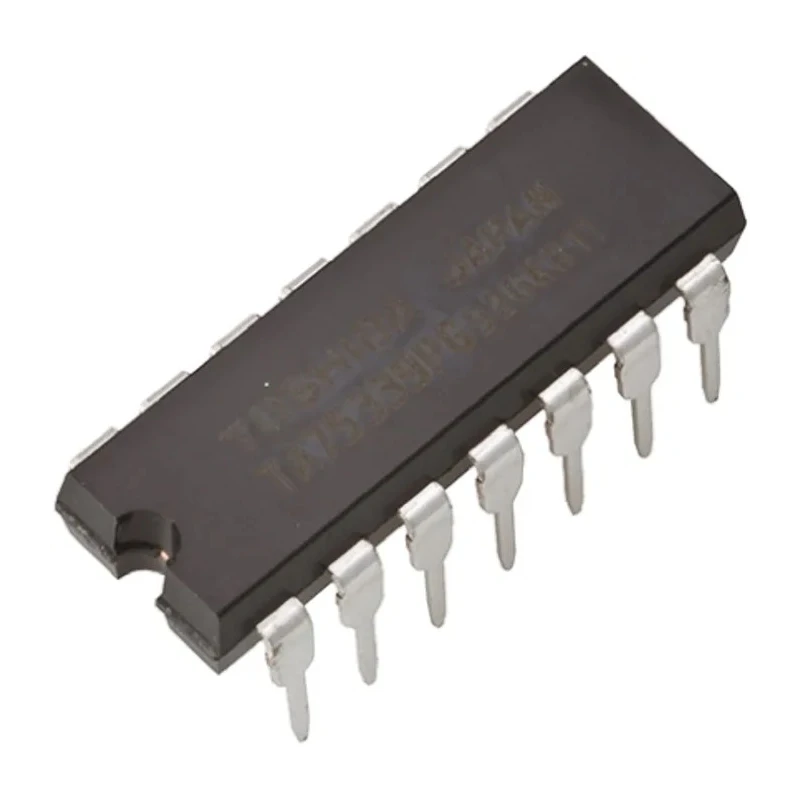

Toshiba 4 2-Input NAND Schmitt Trigger Input Logic Gate 14-Pin PDIP TC4093BP(N,F)

Toshiba TC4093BP(N,F) is a high-performance 4 2-Input NAND Schmitt Trigger Input Logic Gate housed in a 14-Pin PDIP package. It features through-hole mount type packaging suited for PCB assembly in diverse electronic and industrial applications. The device incorporates four independent NAND gates, each with two Schmitt trigger inputs for enhanced signal integrity and noise immunity.

Operating over a wide temperature range from -40°C to 85°C, and a supply voltage range of 3V to 18V, this logic gate supports various operating environments and design requirements. It delivers a maximum propagation delay of 80ns at a capacitive load, enabling fast switching performance critical in timing-sensitive circuits.

The output current capacity of ±4mA at high and low logic levels ensures adequate drive to subsequent circuit stages. The 14-pin PDIP package offers standard dimensions with a length of 19.25mm and height of 3.5mm, compatible with through-hole PCB designs.

Manufactured in Japan, the TC4093BP(N,F) belongs to the robust 4000 logic family known for reliable operation in industrial semiconductor circuits. This makes it apt for use in industrial automation, embedded system design, power and control electronics, and logic signal processing.

Engineers and designers will find the Toshiba TC4093BP(N,F) beneficial for applications demanding NAND logic with Schmitt-trigger input functionality, providing stable, clean digital signals even in noisy environments.

Contains four Logic Gates, each with two inputs and Schmitt trigger functionality. Operates over a wide temperature range from -40°C to 85°C. Supports supply voltages between 3V and 18V for versatile applications. Maximum propagation delay time of 80ns ensures fast switching performance.

Pin count of 14 suits standard PDIP mounting in circuit designs. Output current ranges up to ±4mA at high and low levels for sufficient drive capacity. Compatible with the 4000-series logic family providing flexibility in digital circuits.

Manufactured in Japan with high-quality semiconductor standards. Ideal for industrial, electronic component, and semiconductor applications requiring NAND logic with noise immunity. Explore our broad selection of semiconductor logic ICs at EnvMart for your electronic system designs and industrial applications.
