| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1.02mm |
| Model | PMEG3002AEL,315 |
| Width | 0.62mm |
| Mount Type | Surface |
| Series | PMEG3002AEL |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-882 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 3A |
| Maximum Forward Voltage Vf | 480mV |
| onsemi 30 V 200 mA Diode Schottky 2-Pin SOD-923 NSR0230P2T5GBrand | onsemi |

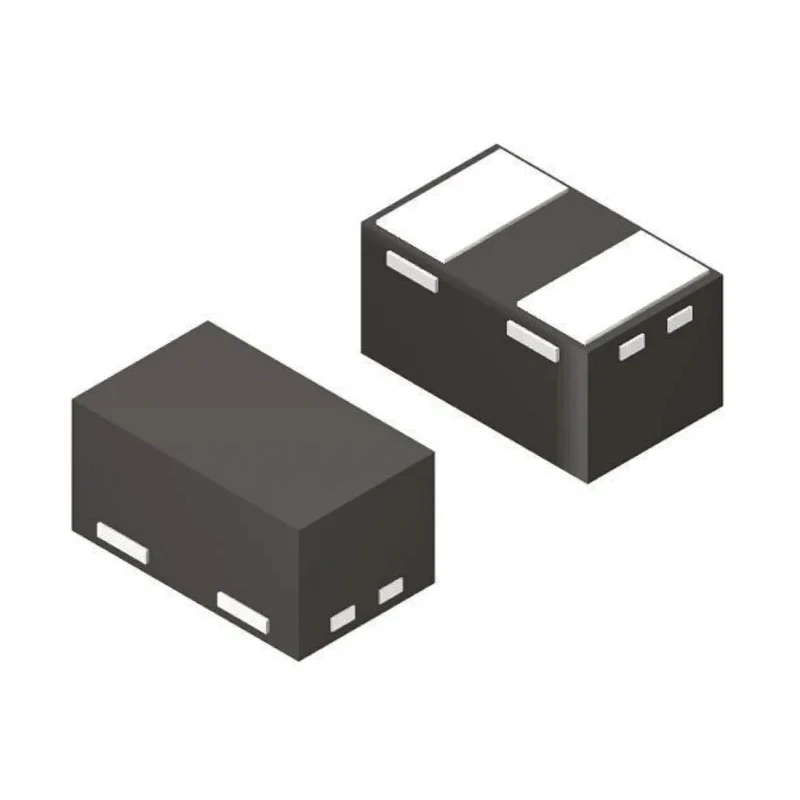

Nexperia PMEG3002AEL,315 is a high-efficiency Schottky diode designed for surface mount technology with a compact 2-pin SOD-882 package. It features a maximum continuous forward current of 200 mA and a peak reverse voltage of 30 V, making it suitable for low voltage, high frequency applications.
This diode offers a low forward voltage drop of 480 mV, reducing power loss and improving circuit efficiency. It supports a peak non-repetitive forward surge current of 3 A, ensuring reliable operation under transient conditions.

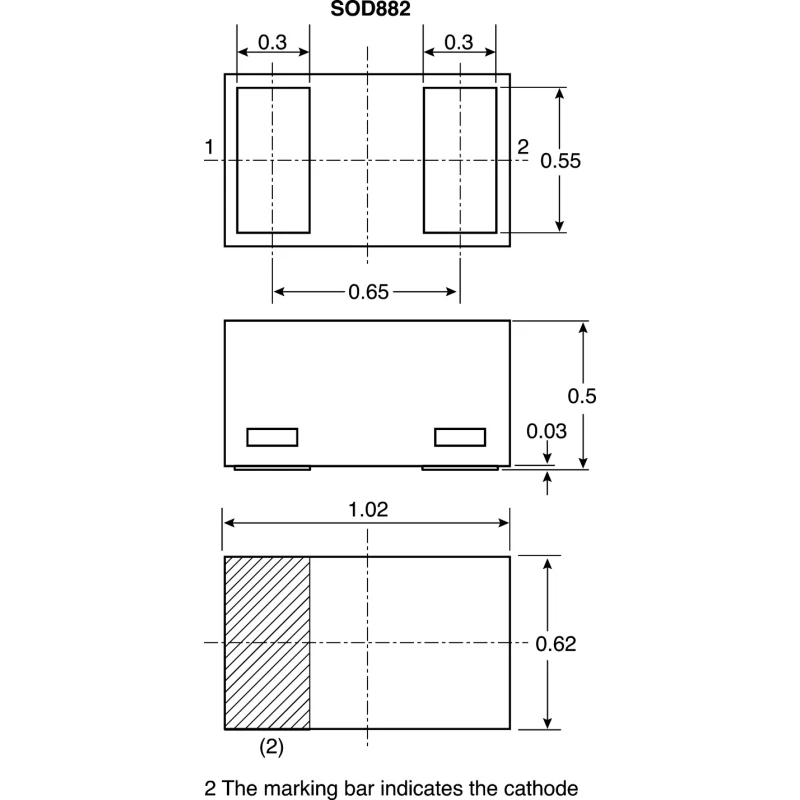

With an operating temperature range from -65°C to 150°C, the PMEG3002AEL,315 is robust enough for use in demanding industrial, automotive, and consumer electronics environments. Its ultra-small footprint (1.02 mm length, 0.62 mm width, and 0.47 mm height) enables compact PCB designs.
The diode's low leakage current of 50 µA and low capacitance characteristics make it ideal for switching power supplies, DC to DC converters, and rectification in various power management and protection circuits. Its single diode configuration is optimized for rapid switching and low losses in power electronics.
Compact SOD-882 package for surface mount design. Maximum forward current 200 mA with peak non-repetitive surge up to 3 A. Low forward voltage drop of 480 mV to enhance power efficiency. Wide temperature tolerance from -65°C to 150°C for industrial usage.
Low leakage current and capacitance for fast switching applications. Single diode configuration suitable for rectification and power management.
This product is well suited for use in industrial electronics, power supplies, telecommunications, automotive electronics, and general semiconductor applications. Its small size and reliable electrical characteristics make it a versatile component in discrete semiconductor design.
