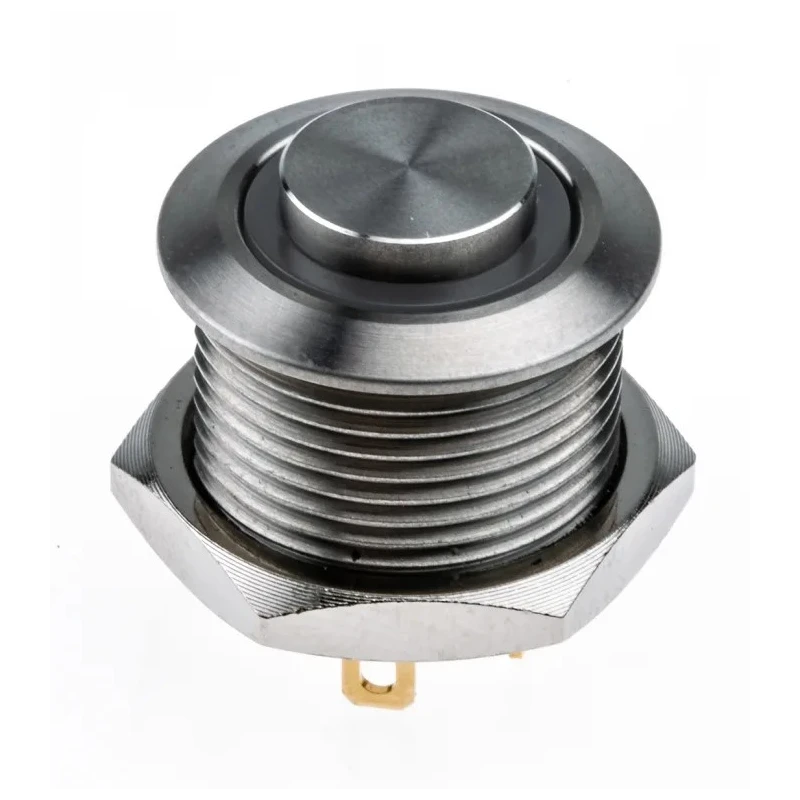

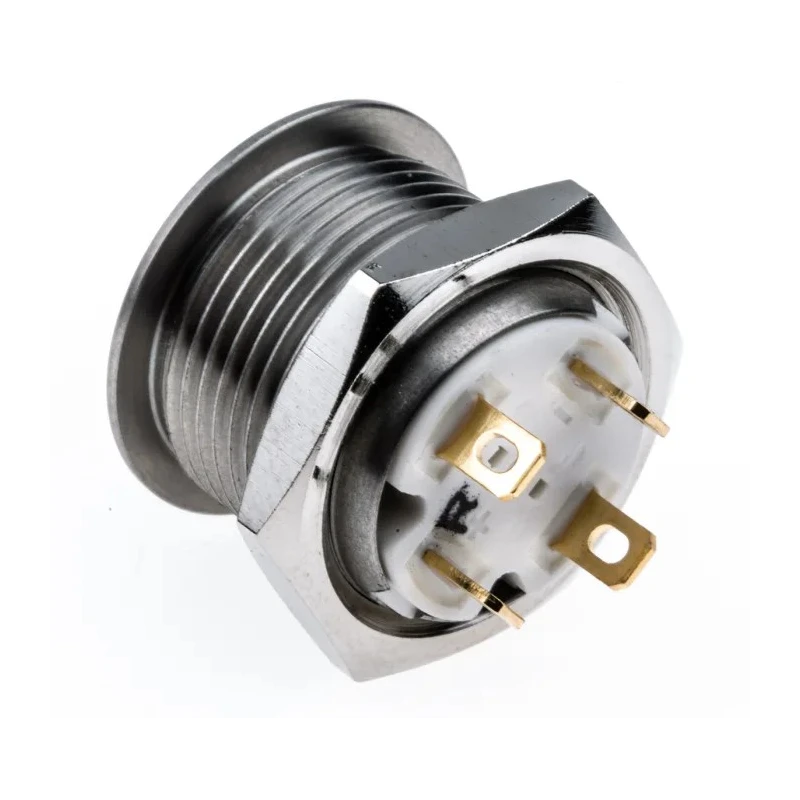

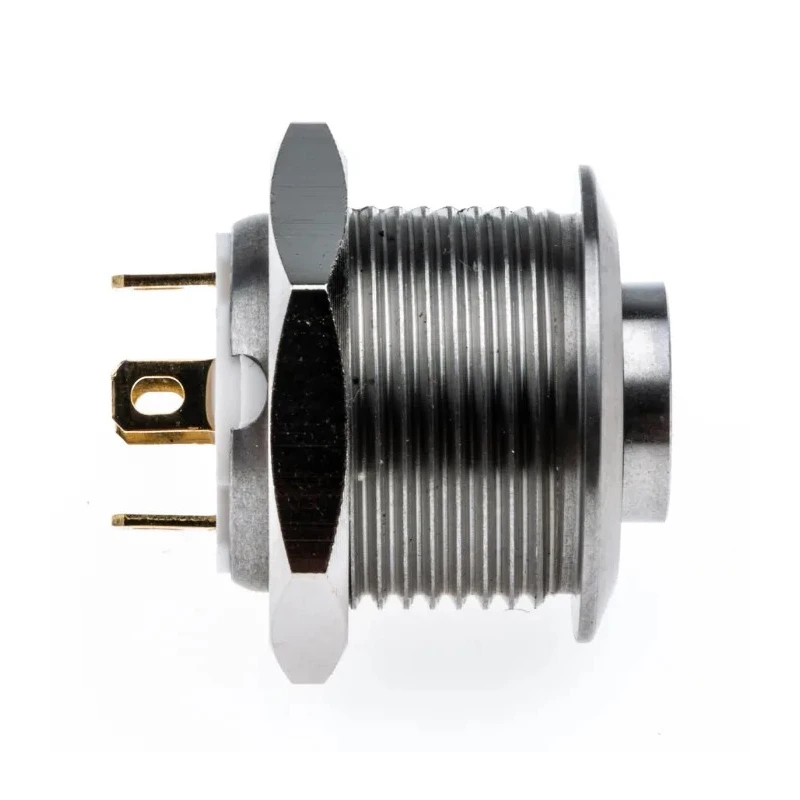

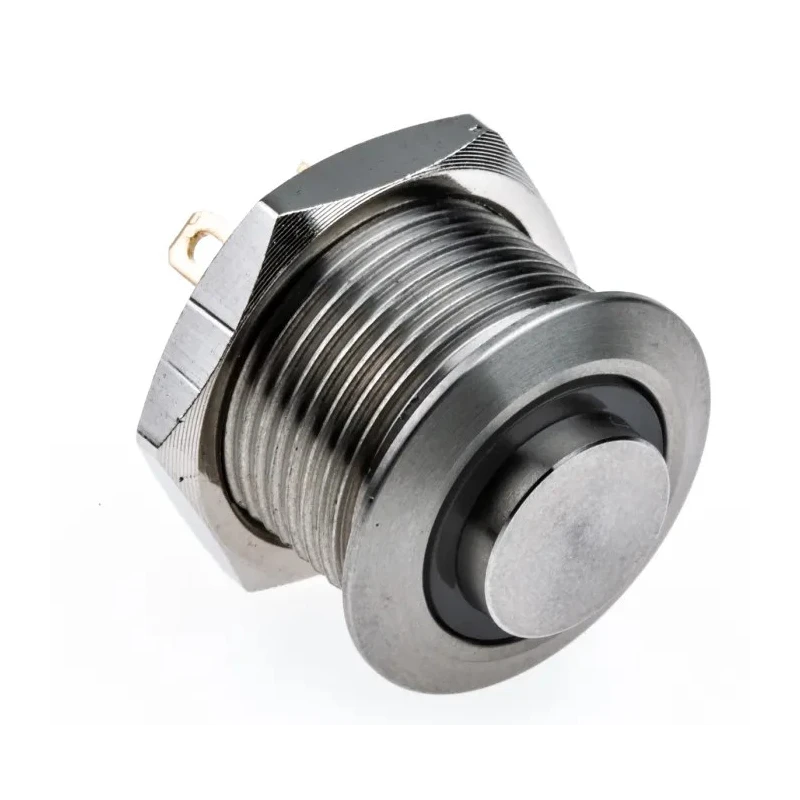

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 16 mm Cutout, SPST, Red LED, IP67, 36 V dc 175-9127

RS PRO 175-9127 is an illuminated momentary push button switch engineered for robust panel mounting applications requiring a 16 mm cutout. This switch features a single pole single throw (SPST) contact configuration with a bright red LED illumination for visual status indication. It is rated IP67, providing excellent protection against dust ingress and water immersion, making it reliable for harsh industrial environments.

The actuator style is round, facilitating easy and ergonomic operation. With a solder terminal type, this switch ensures solid and long-lasting electrical connections. The unit operates with a maximum contact DC voltage of 36 V and supports up to 2A contact current, suitable for moderate electrical loads.

Designed to operate within a temperature range from -20°C to 70°C, this push button is built to withstand a wide range of ambient conditions. Compliance with UL 94 V-0 and V-2 standards confirms its high flame retardant properties, enhancing safety during use.

The RS PRO metal construction offers light weight, high strength, corrosion resistance, and effective heat dissipation, ensuring long operational lifetime. Its application scope includes industrial control instruments, medical equipment, security monitoring systems, vehicle peripherals, and audio-visual devices.

This Push Button Switch is manufactured in Taiwan, Province Of China, ensuring stringent quality control and reliable performance for demanding commercial and industrial uses. Features a bright red LED for clear indication.

Rated IP67 for dust-tight and water immersion protection. Operates at a maximum contact DC voltage of 36 V with a contact current of 2A. Switch actuator style is round with solder terminal type for reliable connections. Suitable for operating temperatures from -20°C to 70°C.

Designed to UL 94 V-0 and UL 94 V-2 standards for flame retardance. Ideal for industrial control, medical, security, vehicle, and audiovisual equipment applications. Explore similar products and enhance your setup with professional-grade components available at EnvMart.
