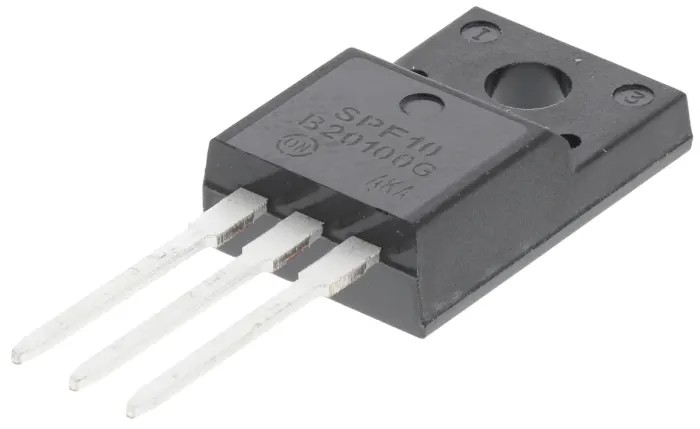

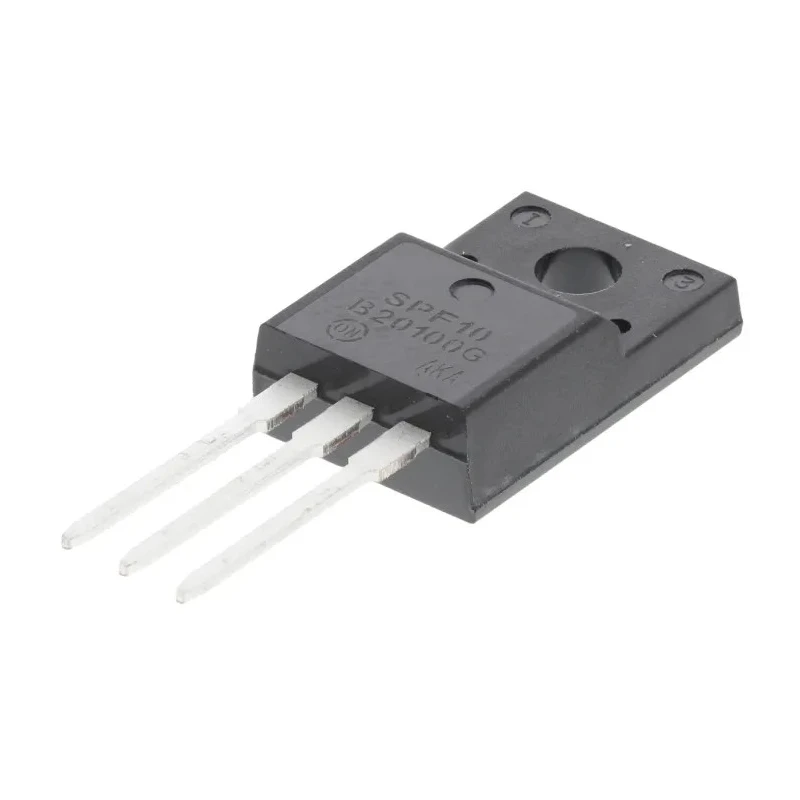

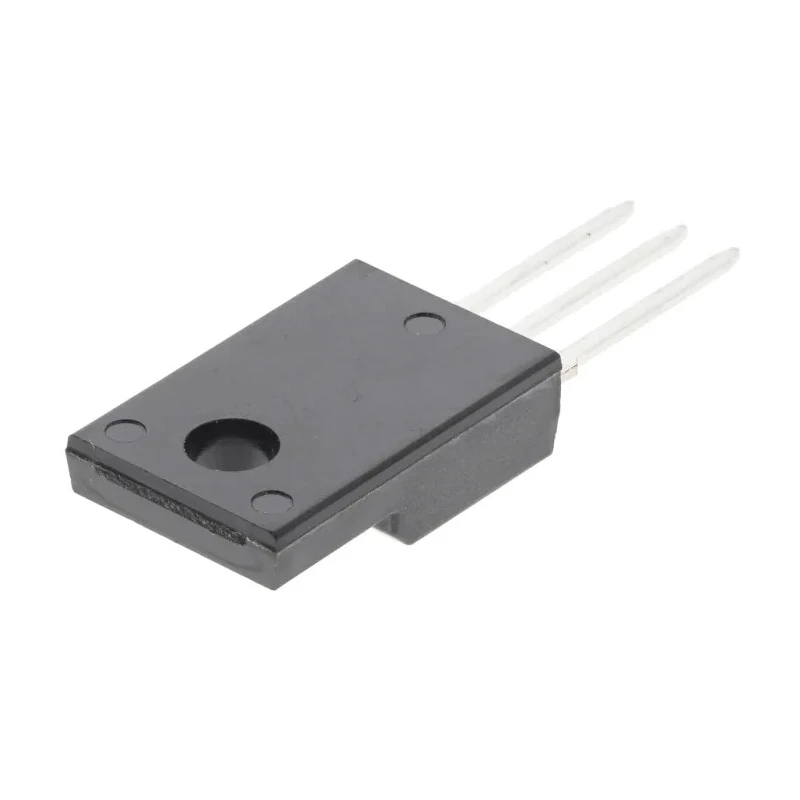

onsemi 100 V 20 A Schottky Diode, Through Hole, 3-Pin TO-220F Package MBRF20100CTG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 9.24mm |
| Length | 10.63mm |
| Model | MBRF20100CTG |
| Width | 4.9mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220F |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 950mV |
| onsemi 100V 20A, Dual Schottky Diode, 3-Pin TO-220 MBRF20100CTBrand | ON Semiconductor |
Key Features
- Through-hole mount type for easy PCB assembly.
- Maximum continuous forward current of 20 A.
- Peak reverse repetitive voltage of 100 V for robust operation.
- Common cathode diode configuration.
- Low forward voltage drop of 950 mV improves efficiency.
- Operating temperature range from -65°C to 175°C.
- Peak non-repetitive forward surge current of 150 A.
- 3-pin configuration in TO-220F package for industrial and power electronics applications.
Product Description
onsemi MBRF20100CTG is a high-performance Schottky barrier diode designed with a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 100 V. The diode is housed in a 3-pin TO-220F package and is suitable for through-hole mounting, making it ideal for power electronics and industrial applications requiring efficient rectification and low forward voltage drop.
This diode features a common cathode configuration and exhibits a low forward voltage drop of 950 mV, which enhances efficiency in power supply circuits. It operates reliably in a wide temperature range from -65°C to 175°C, supporting demanding environments encountered in automotive and industrial use.
The MBRF20100CTG can withstand a peak non-repetitive forward surge current of 150 A, providing robustness against transient currents. Its compact size with dimensions of 10.63 mm length, 9.24 mm height, and 4.9 mm width enables space-efficient PCB layout.
This component is well-suited for applications such as power rectification, freewheeling diodes in power converters, and load dump protection in automotive electronics. The three-pin TO-220F configuration facilitates easy integration into discrete semiconductor circuits.
Through-hole mount type for robust mechanical installation. Maximum continuous forward current: 20 A for high-load performance. Peak reverse repetitive voltage: 100 V ensures safety margin. Low forward voltage decreases power loss.
Wide operating temperature range for durability. Compact TO-220F package eases PCB design. Common cathode diode configuration for versatile circuit design. High surge current handling for transient tolerance. Industrial and automotive suitable diode.
For industrial, electronics manufacturing, and power conversion applications, onsemi MBRF20100CTG offers reliable, efficient, and high-performance Schottky Diode functionality. Browse more semiconductor and diode products on EnvMart for seamless integration into your designs.
