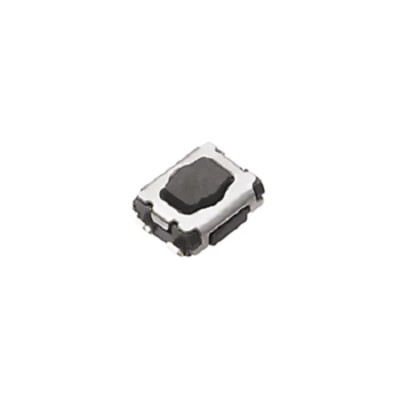

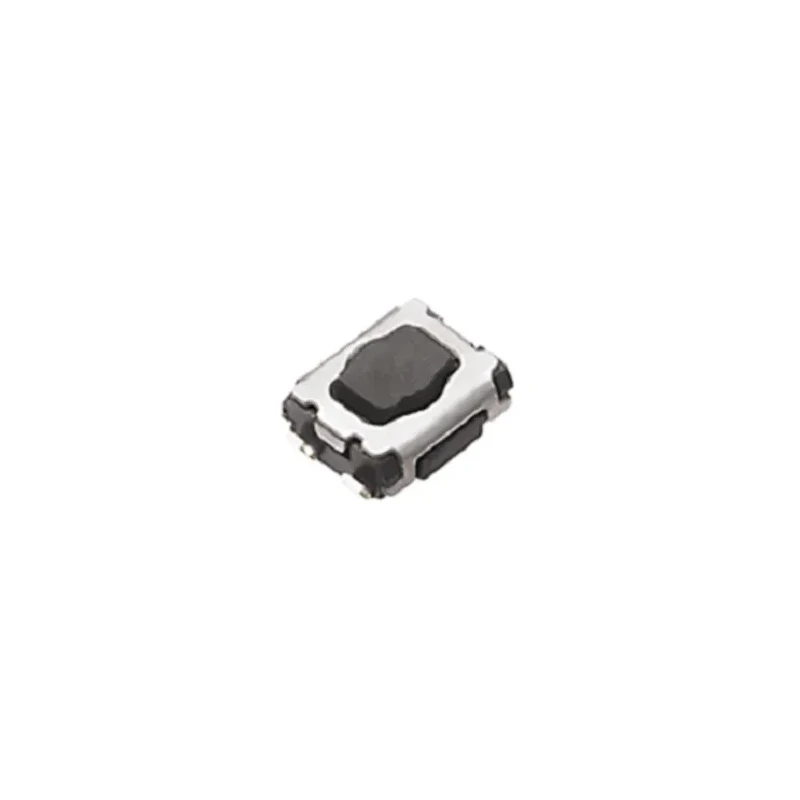

Panasonic Grey Tactile Switch Push Plate SPST 20mA 15V DC Surface Mount EVPAAU02Q
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 1.7mm |
| Model | EVPAAU02Q |
| Mount Type | Surface |
| Series | EVPA |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Terminal type | J Bend |
| Switch Operation | Push-On |
| Actuator Colour | Grey |
| Actuator Length | 2.2mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 7N |
| Mechanical Life | 100000Cycles |
Key Features
- Surface mount design suitable for compact assemblies.
- Grey push plate actuator with straight orientation for reliable tactile feedback.
- High mechanical life rated at 100000 cycles ensuring durability.
- Operating force of 7 N for precise switch operation.
- Maximum operating temperature of 85°C for varied environments.
- Compact height of 1.7 mm enabling low-profile integration.
- Contact configuration is single-pole single-throw (SPST) with J bend terminals.
- Electrical rating supports up to 20mA DC current at 15V DC.
Product Description
Panasonic EVPAAU02Q tactile switch push plate is a high-quality surface mount switch designed for electronics and electrical applications where precise tactile feedback is required. Its push-on snap action SPST configuration with a grey push plate actuator of 2.2 mm length delivers reliable operation in compact assemblies.
The switch supports a contact voltage of 15V DC and a contact current of 20mA, making it suitable for low power circuits including keyless entry systems and portable electronic equipment control interfaces. The actuator's straight orientation and surface mount design enable efficient positioning on circuit boards.
Engineered for longevity, this tactile switch offers a mechanical life of 100000 cycles, ensuring extended service life under repeated use. The operating force of 7N gives users tactile confirmation while maintaining ease of use.
With a maximum operating temperature rating of 85°C and a compact height of 1.7 mm, the switch is adaptable to demanding industrial, laboratory, consumer electronics, and instrumentation environments. The Panasonic EVPAAU02Q is manufactured in Japan, reflecting strict quality standards.
Surface mount for compact circuit assembly integration. SPST contact configuration with J bend terminals. Push plate actuator in grey color, 2.2 mm length. Electrical rating up to 20mA 15V DC. Mechanical life of 100000 operation cycles.
Operating force: 7N for reliable tactile feedback. Compact height of 1.7 mm to fit small form factors. Suitable for portable electronics, keyless entry, and control panels. Rated for operation in temperatures up to 85°C.
Explore EnvMart's wide range of Tactile Switches and electronic components suitable for industrial automation, consumer electronics manufacturing, and engineering projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a contact voltage of 15V DC and a contact current of 20mA.
It has a mechanical life rated at 100,000 cycles, ensuring longevity under repeated use.
The operating force for this unit is 7N, providing reliable tactile feedback during operation.
This switch can operate at a maximum temperature of 85°C, making it suitable for various environments.
It features J bend terminals, which are common for surface mount applications.
The switch has a compact height of 1.7 mm, allowing for low-profile integration in assemblies.
It utilizes a push plate actuator with a straight orientation for efficient operation.
This tactile switch is suitable for low power circuits, including keyless entry systems and portable electronic equipment control interfaces.
The actuator is grey in color and has a length of 2.2 mm.
It has a single-pole single-throw (SPST) contact configuration, which is standard for many switches.
This tactile switch is manufactured in Japan, reflecting strict quality standards.
It supports a surface mount design, making it suitable for compact circuit assembly integration.
