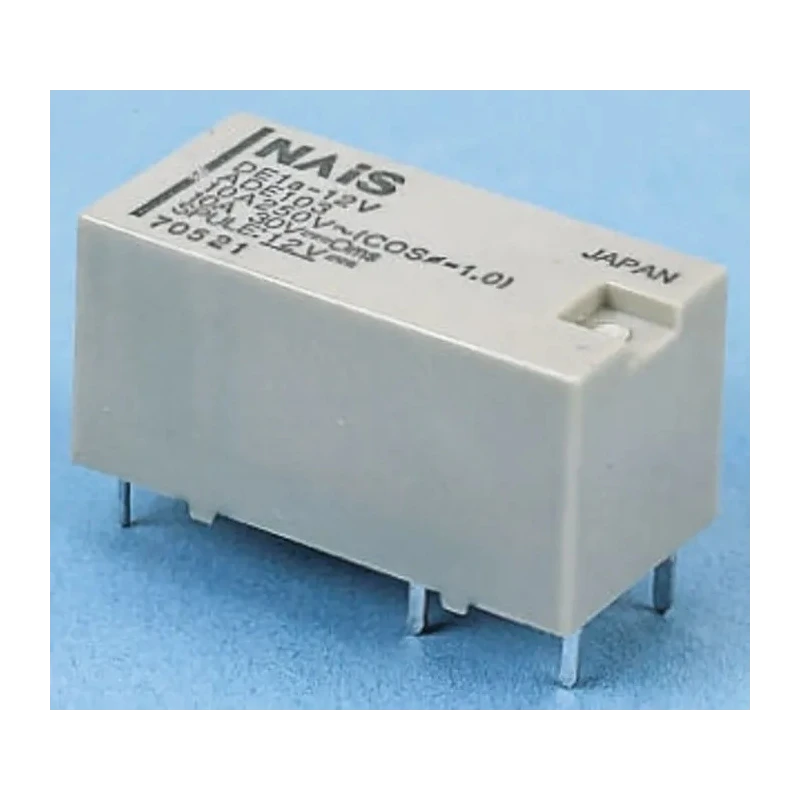

Panasonic PCB Power Relay 12V dc Coil 16A Switching Current DPST DE1A1B12D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 12.5mm |
| Length | 25mm |
| Model | DE1A1B12D |
| Width | 12.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | DE |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 440V dc |
| Switching AC Voltage | 440V ac |
Key Features
- Suitable for PCB mounting with through hole terminal type.
- Compact DE series relay designed for safe and reliable switching.
- Switching power capacity of 2kVA with 440V AC/DC rating.
- Operating temperature range from -40°C to 70°C.
- Coil resistance of 720 ohms ensures stable operation.
- Silver alloy contact material provides durability and enhances conductivity.
Product Description
Panasonic DE1A1B12D PCB Power Relay is engineered for high-performance electrical switching with a 12V dc coil and 16A switching current in a DPST contact configuration. This relay is part of the DE series compact relays that allow direct control for strip lights, air conditioning, and other industrial applications.
Designed specifically for PCB mounting via through hole terminals, it offers galvanic separation between inputs and outputs with an 8 mm leakage path and safe aerial distance. The linked contacts enhance safety by avoiding malfunction and ensuring that breaking contacts cannot be closed simultaneously.
This power relay supports switching AC and DC voltages up to 440V and switching power of 2kVA, making it suitable for various industrial automation and control tasks. Its operating temperature ranges from -40°C to 70°C, allowing for use in harsh environments. The coil resistance is 720 ohms, providing efficient coil operation.
The contact material is made of silver alloy for excellent conductivity and wear resistance, while the compact dimensions (25mm length, 12.5mm width and height) support space-saving PCB designs.
Suitable for PCB mounting with through hole terminals. Compact DE series design for efficient control. High switching power rating of 2kVA at 440V AC/DC. Robust operating temperature range from -40°C to 70°C. Silver alloy contacts ensure high conductivity and durability.
Galvanic separation and linked contacts enhance safety. This Panasonic power relay is ideal for industrial, electrical automation, HVAC control, and manufacturing processes requiring reliable relay switching on printed circuit boards.
Explore the range of Power Relays on EnvMart for advanced electrical control solutions.
