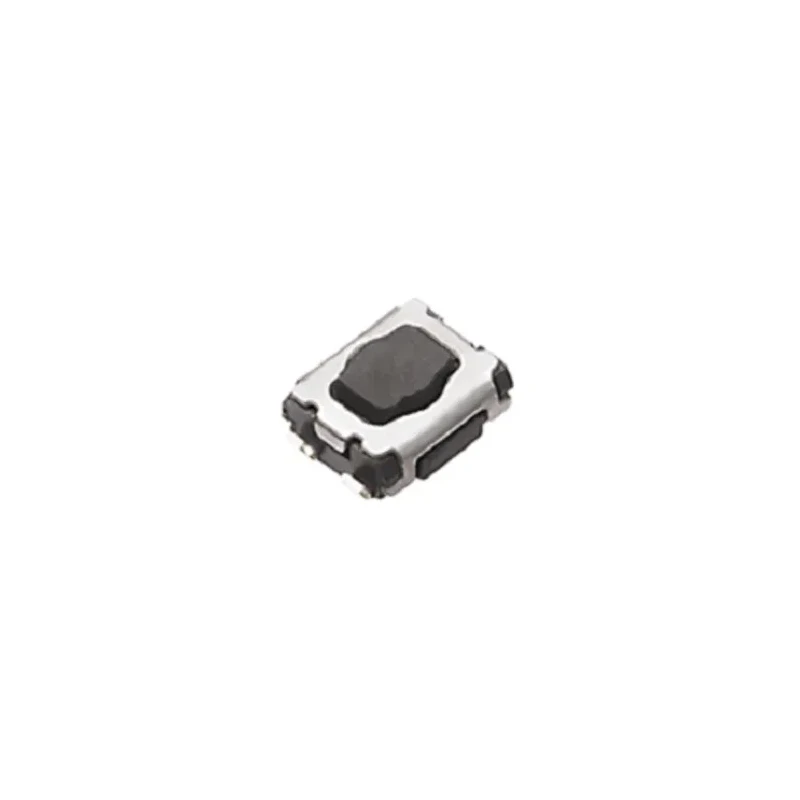

Panasonic Grey Tactile Switch Push Plate SPST 20mA 15V DC Surface Mount EVPAAN02Q

Free Delivery in India | Lowest Global Shipping Charges

Panasonic Grey Tactile Switch Push Plate SPST 20mA 15V DC Surface Mount EVPAAN02Q

Name: Panasonic Grey Tactile Switch Push Plate SPST 20mA 15V DC Surface Mount EVPAAN02Q
Brand: Panasonic
SKU: 176044
Price: 0.57 USD
Availability: InStock



Category Tactile Switch Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	1.7mm
Model	EVPAAN02Q
Mount Type	Surface
Series	EVPA
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Terminal type	J Bend
Switch Operation	Push-On
Actuator Colour	Grey
Actuator Length	2.2mm
Contact DC Voltage	15V dc
Actuator Style	Push Plate
Switch Contact Current	20mA
Operating Force	5N

Key Features

The switch has a grey push plate actuator with a length of 2.2 mm.
Operates at a contact DC voltage of 15 V and a contact current of 20 mA.
Surface mount type with J-bend terminal for easy circuit board installation.
Maximum operating temperature is rated up to 85° C allowing reliable performance in various environments.
The switch features a push-on snap action operation style and a compact height of 1.7 mm.
Operating force required is 5 Newtons, providing high tactile feedback.
Designed and manufactured in Japan ensuring quality and durability.

Product Description

Panasonic EVPAAN02Q tactile switch push plate is designed for low voltage, low current switching applications in electronic circuits. The SPST contact configuration ensures a single-pole, single-throw operation with a push-on snap action style featuring a grey-colored actuator in push plate form.

This surface mount tactile switch offers an actuator length of 2.2 mm and a total height of 1.7 mm, enabling usage in compact electronic assemblies. The switch terminals utilize a J-bend type for secure and reliable PCB mounting.

The device is rated for a contact DC voltage of 15 V and a contact current of 20 mA, suitable for resistive load conditions requiring precise on/off switching. Operating force is measured at 5 Newtons, providing a strong tactile feedback for operators.

Panasonic's tactile switch can function in temperature ranges from -40 °C up to 85 °C, allowing use in diverse industrial, commercial, and consumer electronics environments where durability and consistent performance are priorities.

This model is manufactured in Japan, adhering to high standards of quality control and reliability in switch technology. It is widely used in applications including control panels, portable electronic devices, keyless entry systems, and other automation equipment where compact size and tactile feedback are essential.

The switch provides a robust contact configuration (SPST) for reliable electrical connection. Surface mount J-bend terminals facilitate easy PCB integration. The actuator design is a grey push plate with a length of 2.2 mm.

The device withstands a maximum temperature of 85° C ensuring durability under stress. Operating force of 5N offers precise tactile response. Manufactured in Japan indicating high quality standards.

For professionals seeking quality tactile switches for electronic and automation projects, Panasonic Tactile Switches provide a dependable and compact solution. Explore the extensive range of switches available under the Panasonic brand on EnvMart for industrial and commercial applications.
