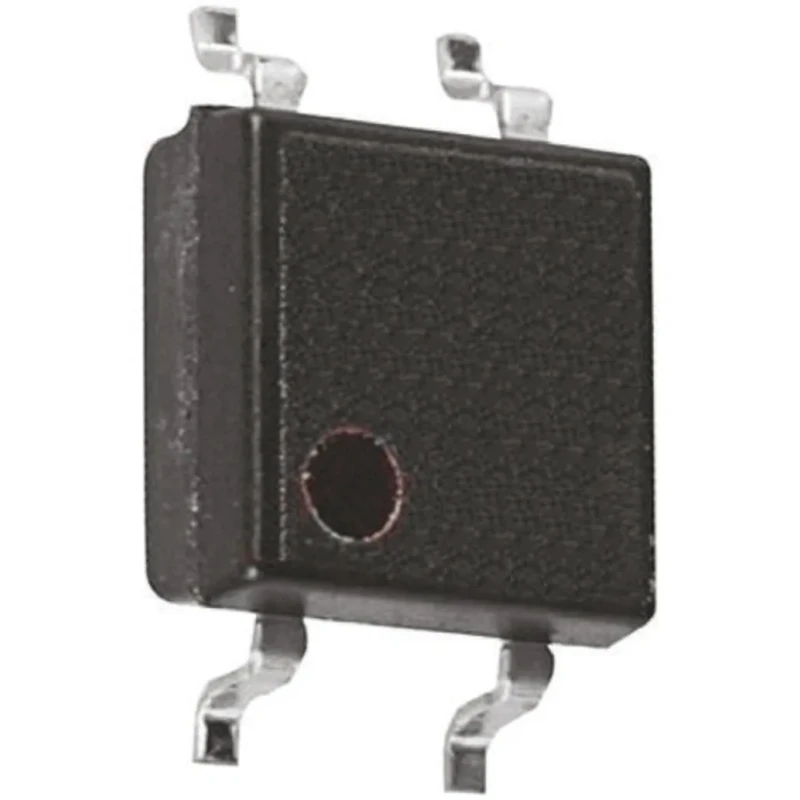

Panasonic GU SOP 1 Series Solid State Relay 0.5 A Load Surface Mount 400 V Load 5V Control AQY210S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.1mm |
| Length | 4.4mm |
| Model | AQY210S |
| Width | 4.3mm |
| Mount Type | Surface |
| Output type | PhotoMOS |
| Series | GU SOP 1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | SOP-4 |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Maximum Load Current | 0.5A |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-6566Brand: PanasonicManufacturers Part No.: AQY210S |
| Maximum Load Voltage | 400V |
| Minimum Control Voltage | 1.14V |
| Maximum Control Voltage | 5V |
| Off State Leakage Current | 1μA |
| On State Resistance | 35Ω |
Key Features
- Maximum load current capacity of 0.5 A ensures reliable switching.
- Surface mount type facilitates compact circuit board assembly.
- Operates with a maximum load voltage of 400 V suitable for diverse loads.
- Minimum control voltage of 1.14 V and maximum control voltage of 5 V for precise control.
- PhotoMOS output type offering low on resistance of 35 Ω for efficient switching.
- Wide operating temperature range from -40°C to 85°C for durability.
- Compact SOP-4 package with dimensions 4.4 mm length, 4.3 mm width, and 2.1 mm height.
- Extremely low off-state leakage current of 1 μA to minimize power loss.
Product Description
Panasonic AQY210S Solid State Relay from the GU SOP 1 Series is designed for low-level analog signal control with a maximum load current rating of 0.5 A and a maximum load voltage of 400 V. This surface mount device uses PhotoMOS output technology to deliver efficient switching with a low on-state resistance of 35 Ω and minimal off-state leakage current of 1 μA, making it suitable for precision electronic applications in industrial automation, electrical control circuits, and signal conditioning.
The compact SOP-4 package has dimensions of 4.4 mm in length, 4.3 mm in width, and 2.1 mm in height, optimizing space on circuit boards. It features a single-pole single-throw (SPST) contact configuration with surface mount terminals, enabling easy integration into surface mounting assembly lines.
Designed to operate across a wide temperature range from -40°C to 85°C, the AQY210S meets stringent durability requirements in demanding environments. It complies with RoHS environmental directives, ensuring safe usage in eco-sensitive applications. Originating from Japan, this product embodies Panasonic's quality and reliability standards.
Applications include electrical automation, control systems, laboratory instrumentation, HVAC systems, industrial machinery, and manufacturing processes requiring silent, vibration-free relay operation with long life expectancy.
Maximum load current capacity of 0.5 A ensures reliable switching. Surface mount type facilitates compact circuit board assembly. Operates with a maximum load voltage of 400 V suitable for diverse loads. Minimum control voltage of 1.14 V and maximum control voltage of 5 V for precise control.
PhotoMOS output type offering low on resistance of 35 Ω for efficient switching. Wide operating temperature range from -40°C to 85°C for durability. Compact SOP-4 package with dimensions 4.4 mm length, 4.3 mm width, and 2.1 mm height.
Extremely low off-state leakage current of 1 μA to minimize power loss. RoHS compliant product respecting environmental standards. Country of origin: Japan ensuring high manufacturing standards.
Discover our comprehensive range of Solid State Relays and related electronic components in the Electronics & Electricals category at EnvMart for industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current capacity of this model is 0.5 A, ensuring reliable switching for various applications.
It operates with a maximum load voltage of 400 V, making it suitable for diverse electrical loads.
The minimum control voltage is 1.14 V and the maximum control voltage is 5 V, allowing for precise control.
This model features a PhotoMOS output type, which provides efficient switching with a low on-state resistance of 35 Ω.
The compact SOP-4 package measures 4.4 mm in length, 4.3 mm in width, and 2.1 mm in height.
It has a wide operating temperature range from -40°C to 85°C, suitable for various environments.
The off-state leakage current is extremely low at 1 μA, which helps minimize power loss.
This relay features a single-pole single-throw (SPST) contact configuration, ideal for simple switching applications.
Yes, the AQY210S complies with RoHS environmental directives, ensuring safe usage in eco-sensitive applications.
It uses surface mount terminals, facilitating easy integration into surface mounting assembly lines.
It is suitable for applications in electrical automation, control systems, laboratory instrumentation, and HVAC systems, among others.
This product originates from Japan, reflecting Panasonic's quality and reliability standards.
