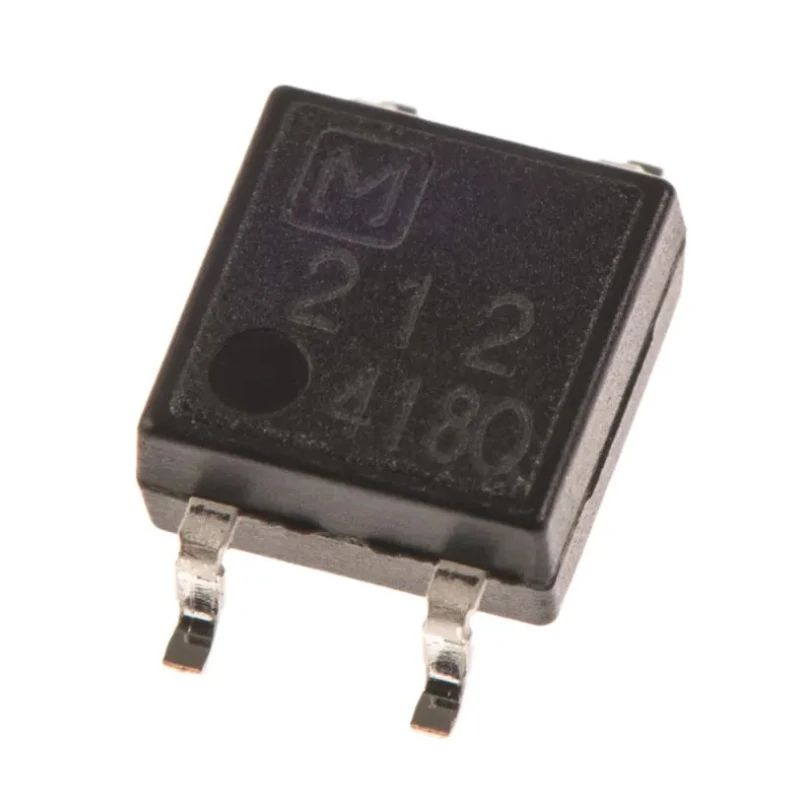

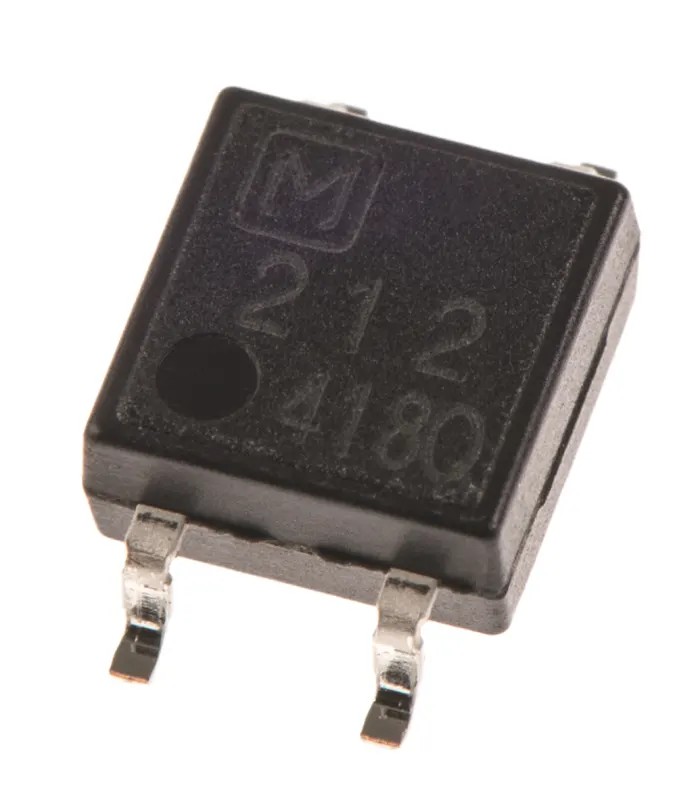

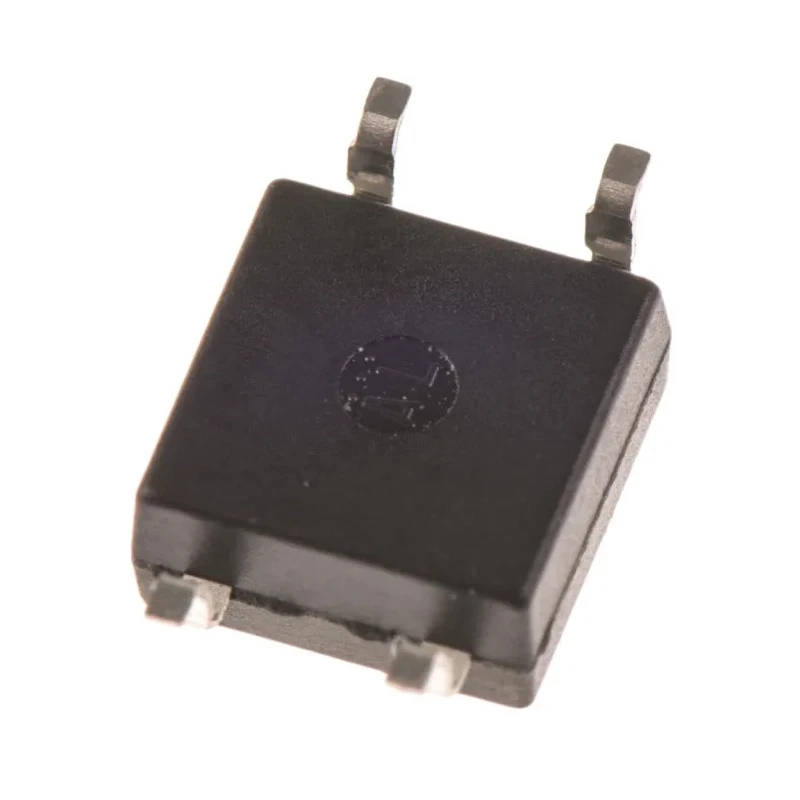

Panasonic GU SOP 1 Series Solid State Relay Surface Mount 1.5 A Load Current 60 V Load Voltage AQY212S
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 2.1mm |
| Length | 4.3mm |
| Model | AQY212S |
| Width | 4.3mm |
| Mount Type | Surface |
| Output type | PhotoMOS |
| Series | GU SOP 1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | SOP-4 |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Maximum Load Current | 1.5A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Control Voltage | 1.14V |
| Maximum Control Voltage | 1.5V |
| Off State Leakage Current | 1μA |
| On State Resistance | 35Ω |
Key Features
- Operates with a control voltage range of 1.14 V to 1.5 V.
- Surface mount package type SOP-4 with compact dimensions of 4.3mm by 4.3mm by 2.1mm height.
- Low off-state leakage current of 1μA ensures minimal power loss.
- Designed for operation in temperature ranges from -40°C to 85°C.
- Employs PhotoMOS technology for reliable solid-state switching.
- Single pole single throw (SPST) contact configuration for simple switching control.
- RoHS compliant, supporting environmental and safety standards.
- Low on-state resistance of 35Ω reducing power dissipation.
Product Description
Panasonic AQY212S solid state relay offers dependable switching for low-level analog signals in surface mount applications. It supports a maximum load current of 1.5 A and can handle load voltages up to 60 V with control voltages between 1.14 V and 1.5 V.
The compact SOP-4 package (4.3mm length, 4.3mm width, 2.1mm height) facilitates integration into space-constrained circuit designs. The relay features a single pole single throw (SPST) contact providing straightforward on/off control.
Its PhotoMOS output type ensures no moving parts for silent operation and longer operational life. The device boasts low on-state resistance of 35Ω and minimal off-state leakage current of 1μA, which significantly reduces power losses and enhances energy efficiency.
Engineered for robust performance, it operates reliably in operational temperatures ranging from -40°C to 85°C, suitable for diverse industrial environments including automation systems, signal conditioning, telecommunications, and control gear.
This solid state relay complies with RoHS environmental regulations, and its construction and quality assurance adhere to Panasonic’s rigorous standards. The product is manufactured in Thailand.
Operates with control voltage from 1.14 V to 1.5 V. Surface mount SOP-4 package for compact installation. Maximum load current of 1.5 A and load voltage of 60 V. Low leakage current and on-state resistance enhance efficiency.
Single pole single throw (SPST) contact configuration. Wide operating temperature range from -40°C to 85°C. PhotoMOS output type ensures reliable solid state switching. RoHS compliant for environmental safety. Manufactured in Thailand ensuring robust quality.
This Panasonic Solid State Relay AQY212S is a preferred choice for industrial automation, industrial control, telecom, and signal processing applications where reliable, compact, and energy-efficient switching is critical. Explore similar relays and solid state switch solutions at EnvMart for precise and durable electronic controls.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum load current of 1.5 A and can handle load voltages up to 60 V.
It operates with a control voltage range of 1.14 V to 1.5 V.
The SOP-4 package has dimensions of 4.3 mm in length, 4.3 mm in width, and 2.1 mm in height.
It features a single pole single throw (SPST) contact configuration for straightforward switching control.
It operates reliably in temperature ranges from -40°C to 85°C.
The on-state resistance is 35Ω, which helps reduce power dissipation.
The off-state leakage current is 1μA, ensuring minimal power loss.
Yes, it complies with RoHS environmental regulations, supporting safety standards.
It employs PhotoMOS technology, which ensures reliable solid-state switching without moving parts.
The terminal type is surface mount, suitable for compact installations.
It is manufactured in Thailand, adhering to Panasonic's quality standards.
It is suitable for applications in industrial automation, signal conditioning, telecommunications, and control gear.
