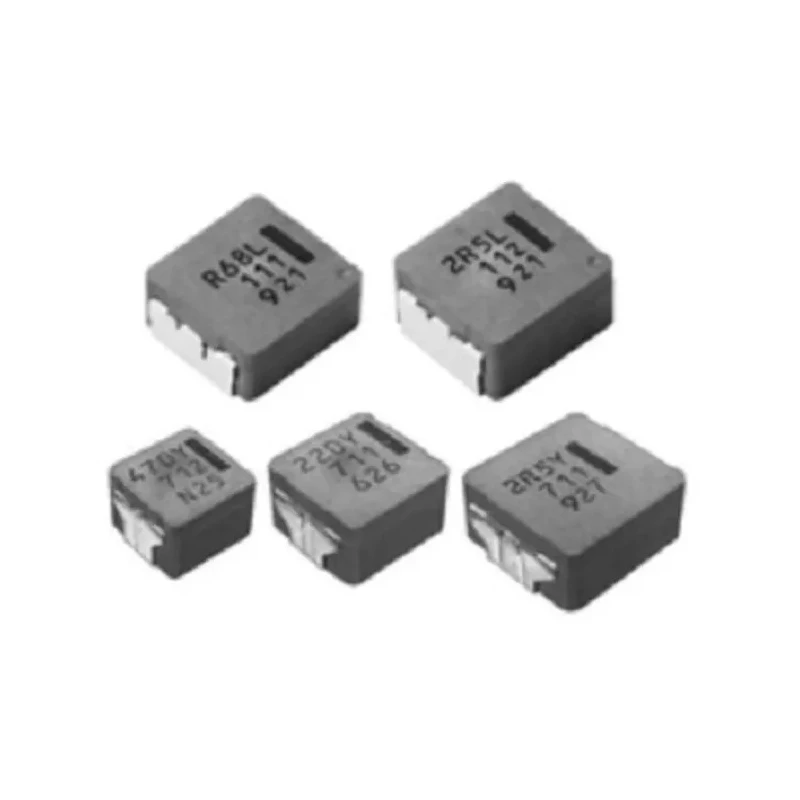

Panasonic Shielded Wirewound Surface Mount Inductor Metal Composite Core 2.5 μH ±20 % 19.6 A Idc ETQP6M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 6mm |
| Length | 10.9mm |
| Model | ETQP6M |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | ETQP6M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 2.5μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 19.6A |
| Pin Count | 2 |
| Maximum DC Resistance | 5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a metal composite core for high heat resistance and reliability.
- Constructed with wirewound inductance and shielded design for stability.
- Suitable for operation up to 150°C including self-heating.
- Offers an inductance tolerance of ±20% and low maximum DC resistance of 5 mΩ.
- Compliant with RoHS and automotive standard AEC-Q200.
- Provides high vibration resistance through integral construction.
- Ideal for noise filtering in high temperature and peak current applications.
- Packaged in surface mount tape and reel format for easy PCB mounting.
Product Description
Panasonic ETQP6M shielded wirewound Surface Mount Inductor with metal composite core provides reliable inductance of 2.5 μH with ±20% tolerance and supports a high DC current of 19.6 A. Designed for demanding industrial and automotive applications, it operates reliably up to 150°C including self-generated heat.
This inductor features a shielded construction and a ferrous alloy magnetic material core, offering excellent inductance stability and low audible noise. The metal composite core enhances heat resistance and mechanical reliability, ensuring high vibration resistance through its integral construction design.
Compliant with RoHS and AEC-Q200 automotive standards, the ETQP6M series is suitable for high temperature environments and peak current noise filtering in power circuits. With maximum DC resistance of only 5 milliohms and a maximum self-resonant frequency of 100 kHz, it supports efficient power management in various electronic devices.
Metal composite core for high heat and mechanical durability. Wirewound construction with shielded design for stable inductance. Meets automotive standard AEC-Q200 and RoHS compliance. Operates up to 150°C, suitable for high temperature circuits.
Low DC resistance and robust vibration resistance. Packaging suitable for automated surface mount assembly (Tape & Reel).
This inductor is ideal for electronic power and noise filtering applications in industrial equipment, automotive electronics, telecommunications, and consumer electronics requiring compact, reliable inductors capable of handling high current loads.
Explore more inductive components and other electronic passive components on EnvMart for comprehensive industrial and electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ETQP6M inductor has an inductance value of 2.5 μH with an inductance tolerance of ±20%.
This model can handle a maximum DC current of 19.6 A.
The dimensions of the ETQP6M are 10.9 mm in length, 10 mm in depth, and 6 mm in height.
The maximum operating temperature for this inductor is 150°C, including self-heating.
The ETQP6M uses a metal composite core, which provides high heat resistance and mechanical reliability.
The termination style of this inductor is surface mount, suitable for automated assembly.
The maximum DC resistance of the ETQP6M is 5 mΩ.
Yes, the ETQP6M is compliant with RoHS and the automotive standard AEC-Q200.
The maximum self-resonant frequency of the ETQP6M is 100 kHz.
This inductor is suitable for noise filtering in high temperature and peak current applications, particularly in automotive and industrial electronics.
The ETQP6M is packaged in tape and reel format, making it easy for PCB mounting.
The ETQP6M features a wirewound construction with a shielded design for stability and low audible noise.
