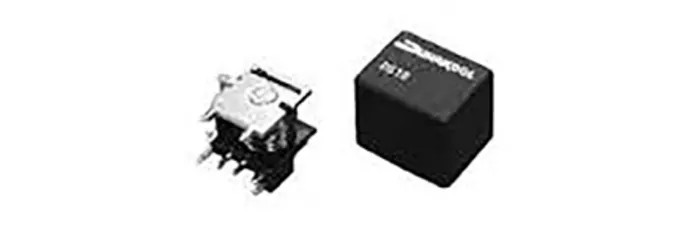

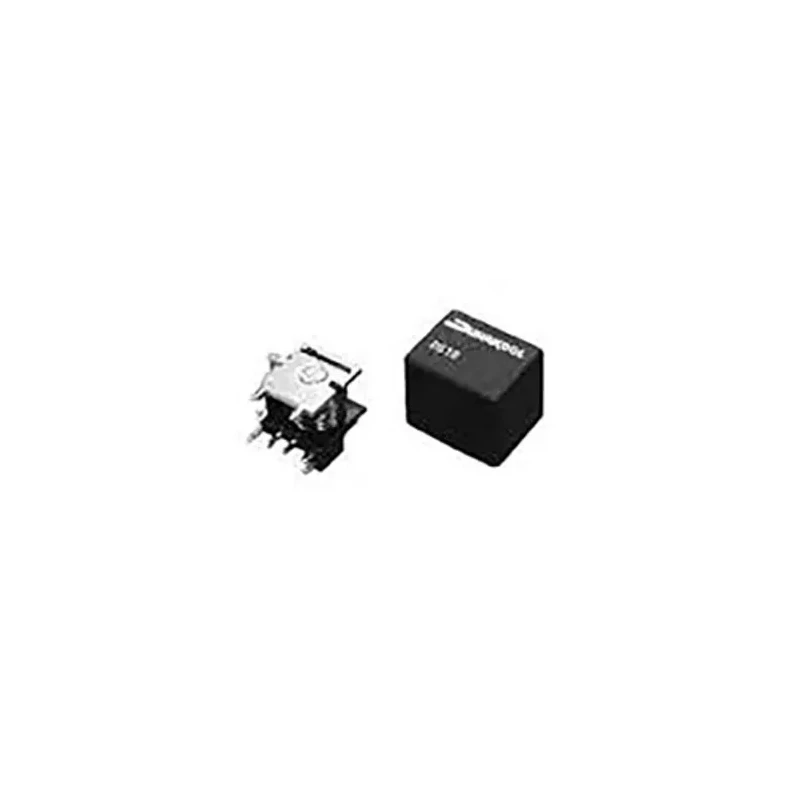

Durakool PCB Automotive Relay 12V DC Coil Voltage 60A Switching Current SPNO DG19-3021-35-1012-11
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 21.4mm |
| Length | 26.5mm |
| Model | DG19-3021-35-1012-11 |
| Depth | 21.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | DG19 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPNO |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Number of Poles | 1 |
| Coil Resistance | 90Ω |
| Coil Power | 1.5W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- The relay utilizes a 1.5W coil power for efficient operation.
- Coil resistance is precisely 90 ohms ensuring stable coil performance.
- Features a single pole, normally open contact configuration.
- Equipped with PCB terminals suitable for secure PCB mounting.
- Operates reliably between -40°C to 125°C temperature range.
- Isolation voltage between coil and contact is rated at 500Vrms for safety.
- Contact material is durable silver alloy for enhanced conductivity and longevity.
- Constructed for high resistance to inrush current, suitable for automotive and industrial relay use.
Product Description
Durakool DG19-3021-35-1012-11 PCB Automotive Relay is a miniature power relay designed for general purpose automotive and industrial applications. It features a 12V DC coil voltage with a SPNO contact configuration that supports a high switching current of 60A, ensuring reliable performance under demanding conditions.
The relay coil consumes 1.5W of power and has a coil resistance of 90 ohms. It is designed to withstand operating temperatures ranging from -40°C up to 125°C, making it suitable for varying environmental conditions typically encountered in automotive and industrial settings.

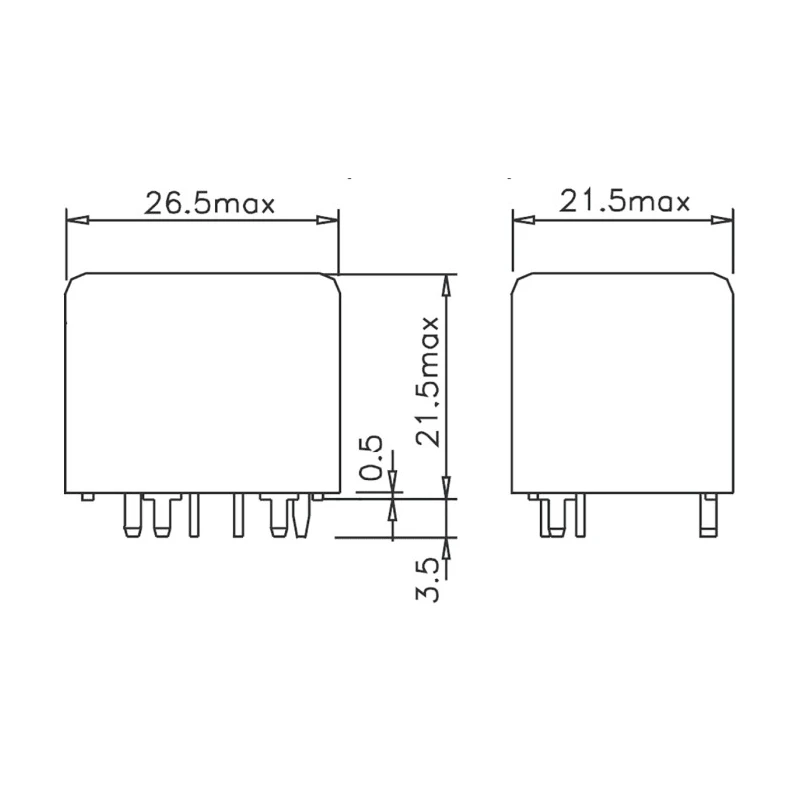

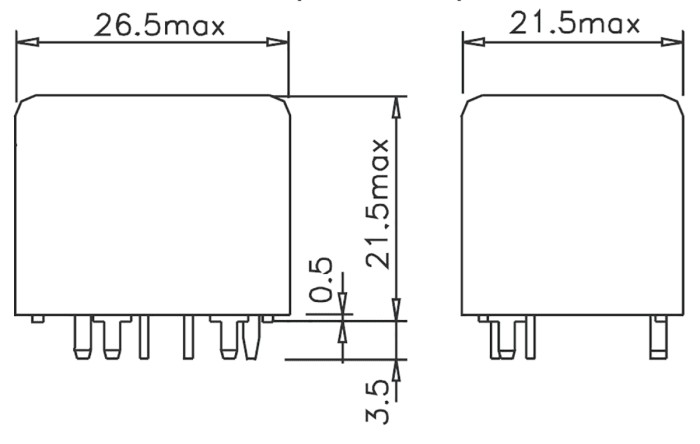

This relay is designed for PCB mounting with PCB terminal contacts, making integration into circuit boards straightforward and secure. Its compact size (26.5mm length, 21.4mm height, 21.5mm depth) allows space-efficient installations.
The contact material is high-quality silver alloy, providing excellent conductivity and long service life. The relay also offers 500Vrms isolation between coil and contacts, enhancing electrical safety and reliability. Its high resistance to inrush current makes it particularly robust for automotive control systems and industrial automation.
Typical applications include automotive control modules, industrial control systems, and signal conditioning circuits where high current switching on a PCB is required. The DG19 series relays are available in open, dust cover, and sealed configurations, all compliant with RoHS standards.
The relay operates with 1.5W coil power ensuring energy efficiency. Single pole, normally open contacts permit straightforward circuit control. PCB mounting capability allows for compact electronic assembly. Wide operating temperature ensures versatility across environments.
Silver alloy contacts maximize conductivity and durability. High isolation voltage enhances application safety and system integrity. Compact dimensions support space-saving designs. Robust against inrush currents, ideal for automotive and industrial relay needs.
RoHS compliant, meeting environmental and safety standards.
Choose Durakool PCB Automotive Relay DG19-3021-35-1012-11 for dependable switching performance in automotive and industrial electrical circuits. Browse the Electronics & Electricals category for more relays and contactors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 60A.
The coil consumes 1.5W of power during operation.
The relay has a length of 26.5mm, a height of 21.4mm, and a depth of 21.5mm.
It features a single pole, normally open (SPNO) contact configuration.
The coil resistance is rated at 90 ohms.
It operates reliably between -40°C to 125°C.
It is equipped with PCB terminals suitable for secure PCB mounting.
The contact material is a durable silver alloy, enhancing conductivity and longevity.
The isolation voltage between the coil and contacts is rated at 500Vrms.
Typical applications include automotive control modules, industrial control systems, and signal conditioning circuits.
Yes, it is RoHS compliant, meeting environmental and safety standards.
