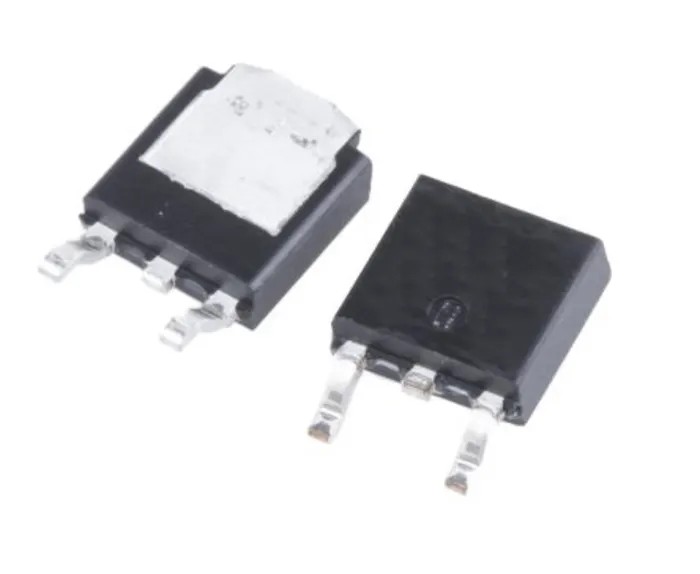

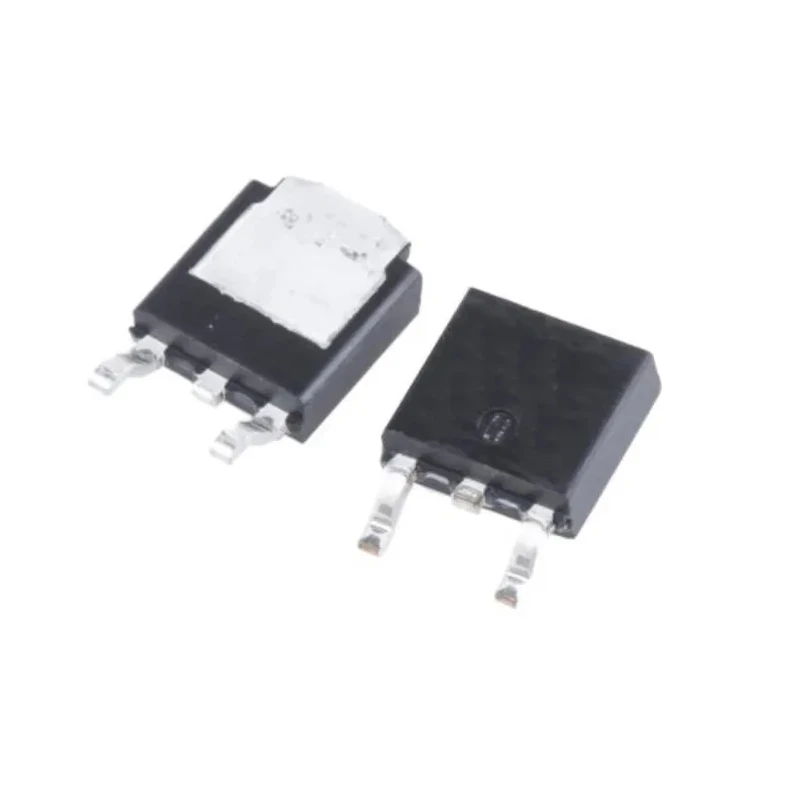

onsemi Silicon Carbide (SiC) 650 V 11.6 A Schottky Diode Surface Mount 3-Pin TO-252 Package FFSD0865B-F085
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | FFSD0865B-F085 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | EliteSiC |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | Pb-Free, RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 11.6A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 160A |
| Peak Non-Repetitive Forward Surge Current Ifsm | 42A |
| Maximum Forward Voltage Vf | 2.4V |
Key Features
- Silicon Carbide (SiC) technology enables superior switching performance with no reverse recovery current.
- Maximum operating junction temperature of 175°C ensures high thermal reliability.
- Peak reverse repetitive voltage rating of 650 V and maximum forward voltage of 2.4 V.
- Designed to automotive standard AEC-Q101 for HEV-EV onboard chargers and DC-DC converters.
- Peak non-repetitive surge current capacity of 42 A for transient conditions.
- Positive temperature coefficient allows easy paralleling in power circuits.
- Lead-free and RoHS compliant for environmental safety.
- Single diode configuration in DPAK package type for surface mounting.
Product Description
onsemi FFSD0865B-F085 is a Silicon Carbide (SiC) Schottky Diode, designed for high-efficiency power electronics requiring low loss and high switching speed. It features a peak reverse repetitive voltage of 650 V and a maximum continuous forward current rating of 11.6 A within a compact TO-252 DPAK 3-pin surface mount package.
The EliteSiC technology eliminates reverse recovery current and improves switching characteristics which are temperature independent, resulting in superior thermal performance and increased system efficiency. This makes the diode especially suitable for automotive applications such as HEV and EV onboard chargers, and DC-DC converters where ruggedness and reliability are critical.
The diode supports a peak non-repetitive forward surge current of up to 42 A, while the maximum operating junction temperature reaches 175 °C. Its positive temperature coefficient enhances safe paralleling of devices in power circuits. With Pb-Free and RoHS compliance, it meets environmental and regulatory standards.
The compact mechanical dimensions of 6.73 mm length, 6.22 mm width, and 2.39 mm height make it well suited for modern PCB layouts requiring surface mount technology. The device is qualified to the automotive standard AEC-Q101 ensuring it meets rigorous quality standards for transport applications.
Silicon Carbide (SiC) technology enables highest efficiency and reduced electromagnetic interference (EMI). No reverse recovery or forward recovery losses increase switching frequency capability. Positive temperature coefficient ensures device reliability in parallel operations.
Complies with Pb-Free and RoHS environmental directives. Automotive-grade AEC-Q101 qualification for demanding vehicle electronics. Compact DPAK TO-252 surface mount package with 3 pins. Applications include automotive onboard chargers, DC-DC converters and power supplies.
This FFSD0865B-F085 Schottky Diode by onsemi represents advanced power semiconductor technology suitable for industrial, automotive, and commercial electronic designs demanding high efficiency and thermal management.
Browse more semiconductors and Schottky Diodes at EnvMart for your next power electronics project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this Schottky diode is 11.6 A.
The peak reverse repetitive voltage rating is 650 V.
The maximum operating junction temperature for this model is 175 °C.
This diode uses a TO-252 package type for surface mounting.
The diode has a height of 2.39 mm, a length of 6.73 mm, and a width of 6.22 mm.
This diode complies with the automotive standard AEC-Q101.
The peak non-repetitive forward surge current capacity is 42 A.
This diode is Pb-Free and RoHS compliant, meeting environmental safety standards.
This diode is a Schottky rectifier type.
The minimum operating temperature of this diode is -55 °C.
This diode has 3 pins.
The maximum forward voltage rating is 2.4 V.
