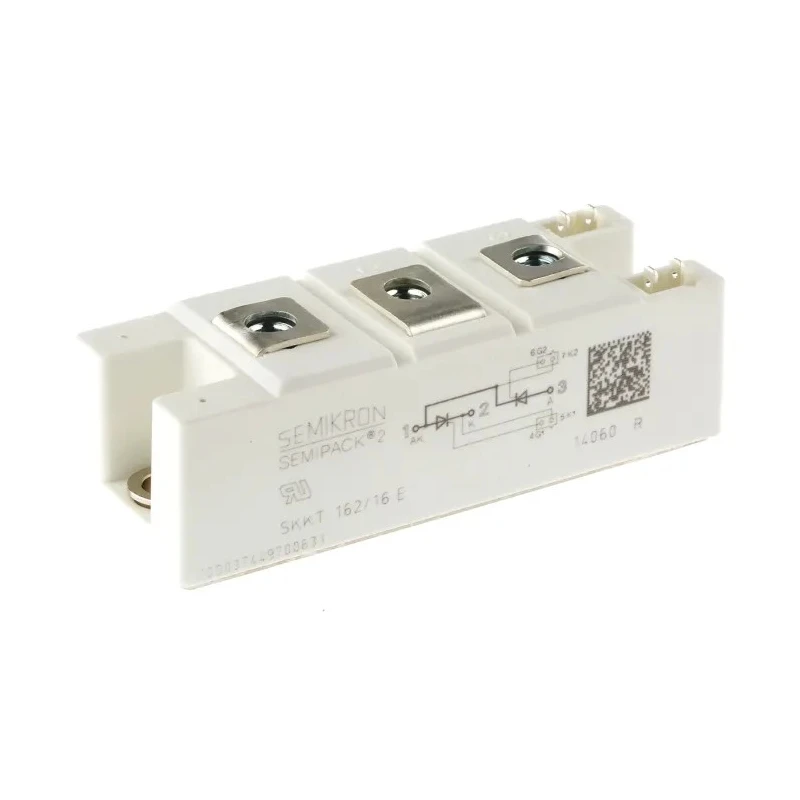

Semikron Danfoss Dual Thyristor Module SEMIPACK2 1600 V, 156 A, 150 mA Gate Trigger Current, 5.4 kA Surge SKKT 162/16 E

Semikron Danfoss SKKT 162/16 E is a high-performance dual thyristor module from the SEMIPACK2 series, designed to provide reliable silicon-controlled rectifier (SCR) switching in demanding industrial applications.

This module features a rated average on-state current of 156 A and a repetitive peak reverse voltage of 1600 V, suited for high power switching environments. It houses SCR thyristors encapsulated in an electrically isolated base plate for enhanced safety and heat dissipation.

The device supports a surge current capacity of 5.4 kA and requires a maximum gate trigger current of 150 mA and voltage of 2 V, enabling precise control and fast switching capabilities. It operates in harsh temperature conditions ranging from -40°C to 125°C, reliable for use in rugged settings such as battery chargers, welding machines, regulated power supplies, and speed or temperature control applications.

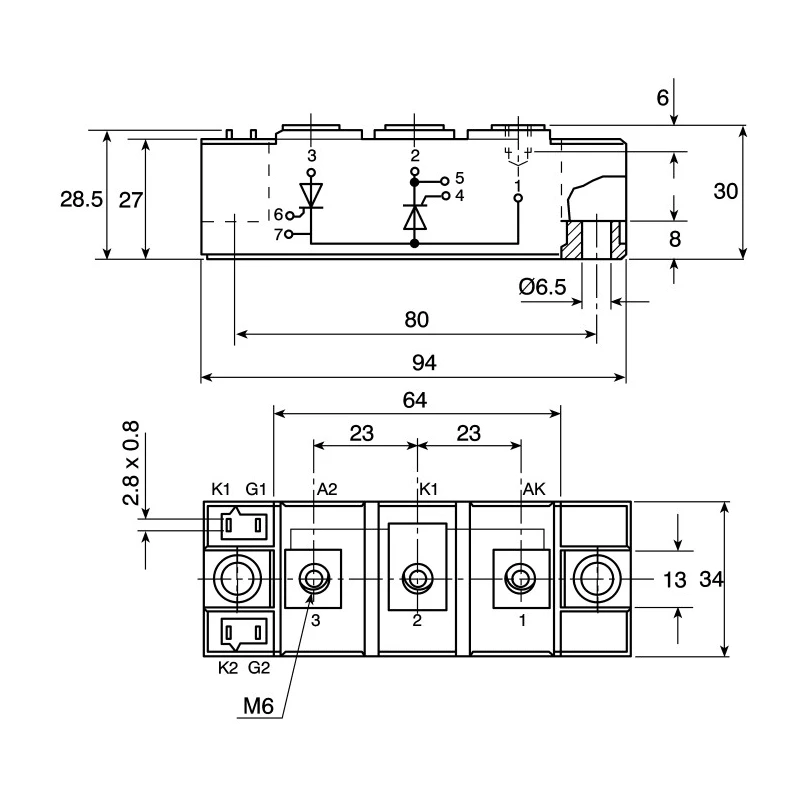

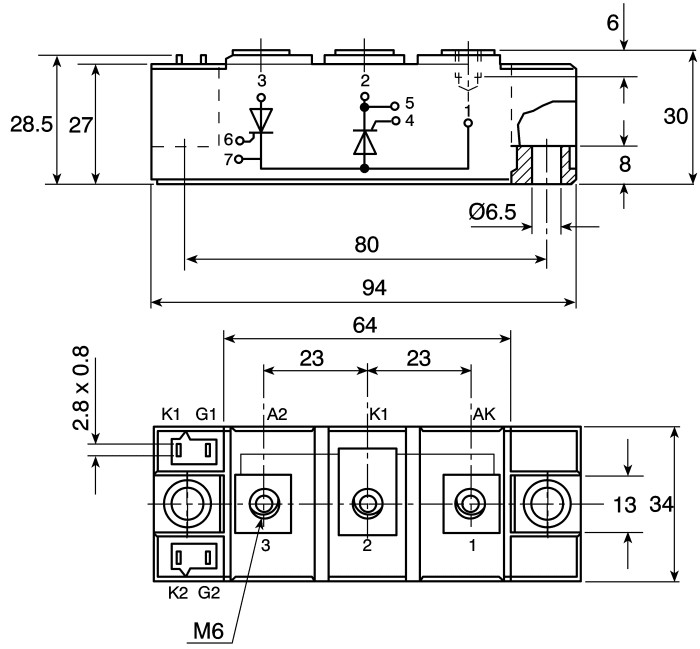

Its panel mount type and 7-pin count design facilitate straightforward installation and connectivity. The module has a maximum holding current of 400 mA and a peak on-state voltage of 1.6 V, optimizing conduction efficiency and reducing losses.

Manufactured in Slovakia, this product is classified as new and does not carry additional certifications or automotive standards. The SKKT 162/16 E module is part of the recognized SEMIPACK2 family, widely used in industrial and electronic systems requiring dependable and robust power control.

Encapsulated dual SCR thyristor module for power electronics. 1600 V repetitive peak reverse voltage withstand capability. 156 A rated average on-state current for high load performance. 150 mA maximum gate trigger current for responsive switching.

Operating temperature range from -40°C to 125°C for reliability. Panel mount configuration with a 7-pin electrical connection. Peak on-state voltage of 1.6 V for efficient conduction. Surge current rating of 5.4 kA for transient tolerance.

Manufactured in Slovakia maintaining high-quality standards.

This Semikron Danfoss SKKT 162/16 E dual Thyristor Module is suited for industrial, manufacturing, power conversion, and electronic control systems. The SEMIPACK2 package ensures safe, efficient operation under heavy electrical loads. For detailed technical implementation, design engineers should consult the product datasheet and implementation guides available from Semikron Danfoss.
