Semikron Danfoss Dual Thyristor Module 1600 V, 40 A, SCR, SEMIPACK1 Package SKKT 42B16 E

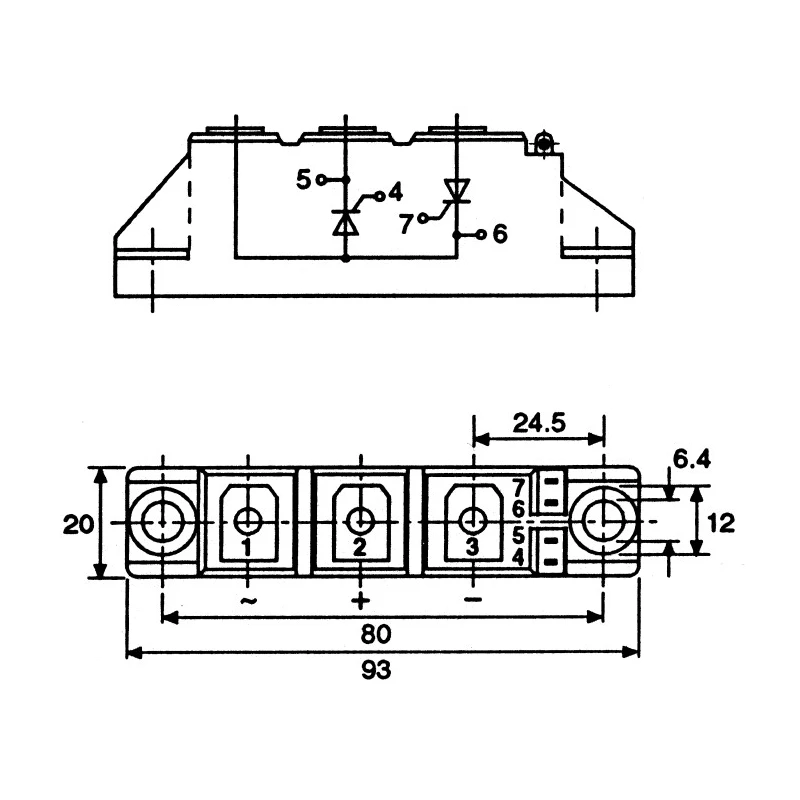

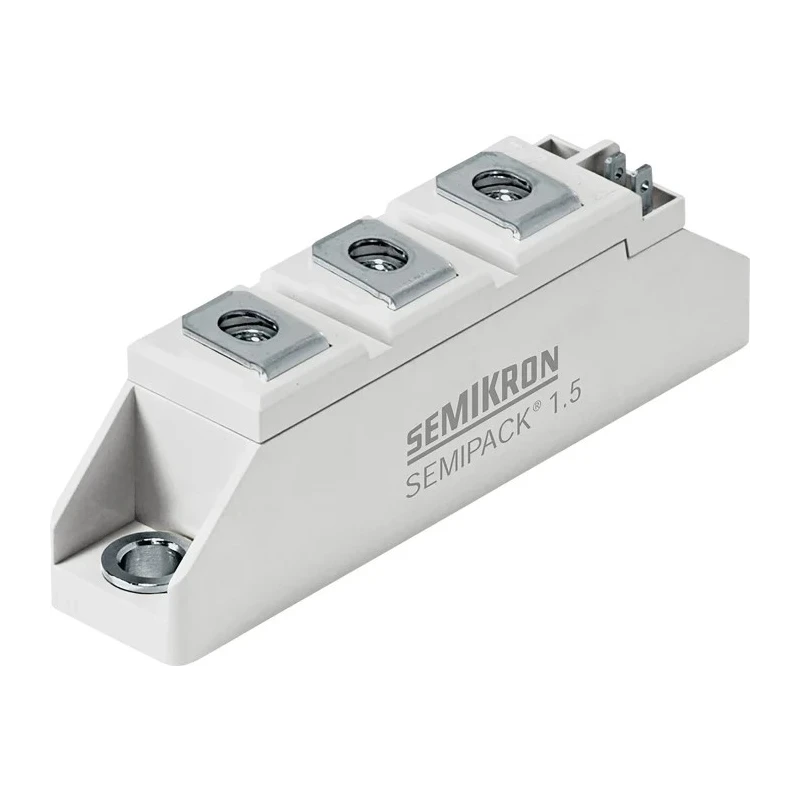

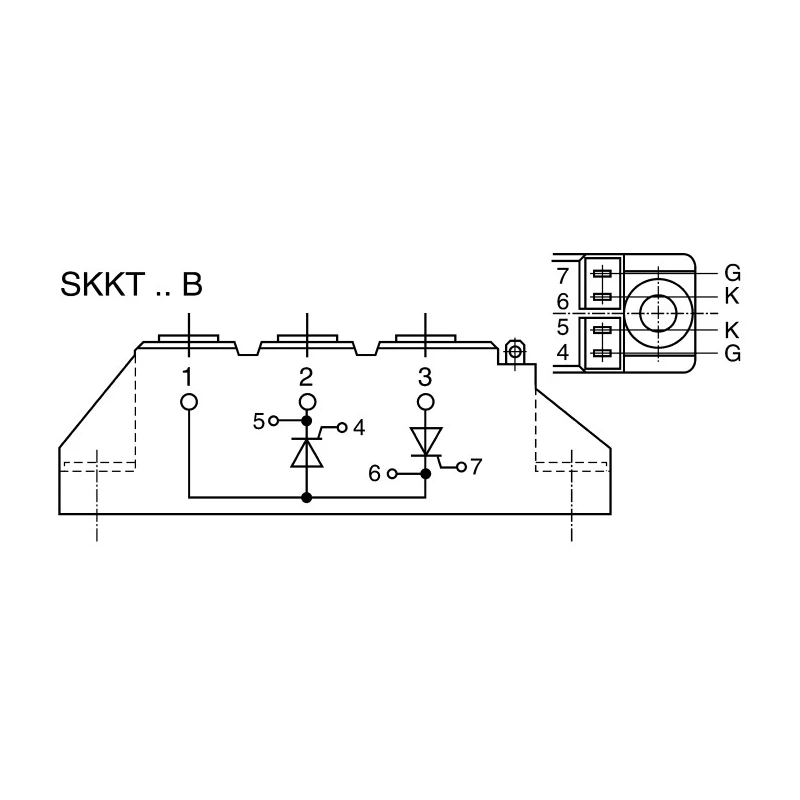

Semikron Danfoss SKKT 42B16 E is a dual thyristor module designed to handle power control applications with high reliability and efficiency. This SCR module features a rated average on-state current of 40 A and a repetitive peak reverse voltage of 1600 V, housed within a SEMIPACK1 package optimized for panel mounting. The module has a 7-pin configuration enabling easy integration into various electrical circuits.

The device includes key parameters such as a maximum gate trigger current of 150 mA and a gate trigger voltage of 3 V, ensuring precise firing control. Its surge current rating of 1 kA allows it to withstand transient overloads typical in industrial environments. Operating temperature range from -40°C to 125°C makes it suitable for harsh and demanding conditions.

This Thyristor Module exhibits a peak on-state voltage of 1.95 V and a repetitive peak off-state current of 15 mA, providing excellent conduction with minimal losses. Its maximum holding current is 250 mA, contributing to reliable bistable switching operation.

Typical applications for the SKKT 42B16 E module include battery chargers, welders, plating equipment, regulated power supplies, temperature regulation systems, and speed control circuits. The device is an UL recognized component, evidencing compliance with safety and reliability standards in industrial automation and power electronics.

Users will appreciate its encapsulated module design with electrically isolated base plate for safe and easy mounting. The product supports various industrial sectors such as manufacturing, laboratory instrumentation, HVAC control systems, and electrical power regulation.

Explore the Semikron Danfoss category at EnvMart for a wide range of semiconductor modules designed to meet diverse industrial needs and specifications. This SCR thyristor features a panel mount type for secure installation.

Maximum gate trigger current is 150 mA and gate trigger voltage is 3 V. Surge current rating of 1 kA ensures capability for high transient loads. Operates reliably from -40°C up to 125°C ambient temperature. Module has 7 pins with a maximum holding current of 250 mA for stable conduction.

Designed with peak on-state voltage of 1.95 V and repetitive peak off-state current of 15 mA. UL recognized component suitable for industrial power electronics applications. Discover more reliable power modules and electronics components in the Semiconductor section on EnvMart.
