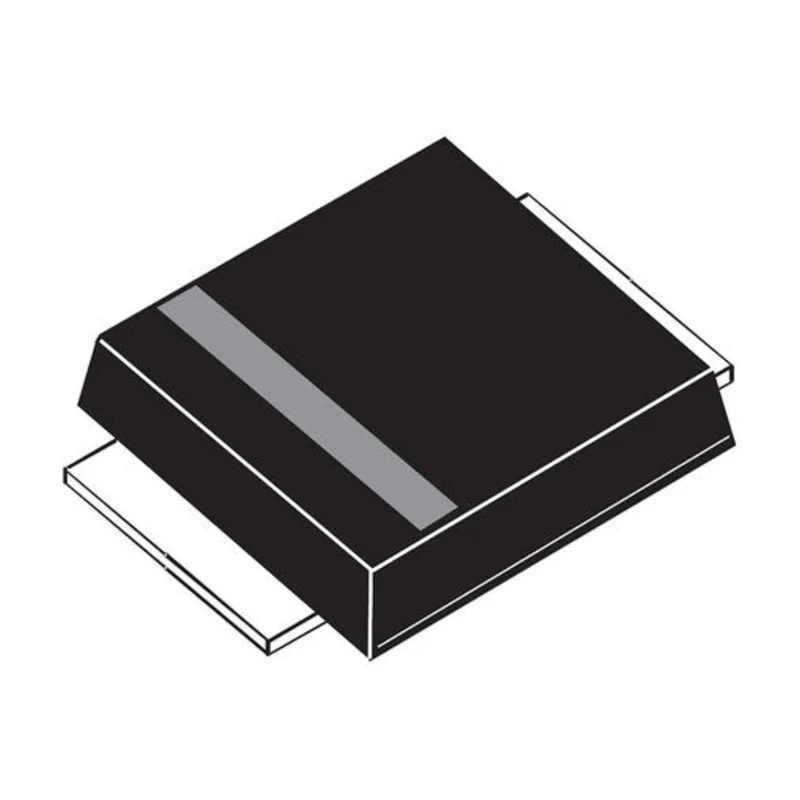

STMicroelectronics Schottky Diode 100 V 3 A Surface Mount SMB Package STPS3H100UF
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 3.95mm |
| Model | STPS3H100UF |
| Width | 4.6mm |
| Mount Type | Surface |
| Series | STPS3H100 |
| Maximum Operating Temperature | 175°C |
| Package Type | SMB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.63V |
Key Features
- This diode features a maximum continuous forward current of 3 A.
- It offers a peak reverse repetitive voltage of 100 V.
- The maximum forward voltage is 0.63 V to ensure efficient operation.
- It supports a peak non-repetitive forward surge current of 75 A.
- Operating temperature range spans from -65°C to 175°C.
- The diode has a single diode configuration with two pins for easy PCB mounting.
- Physical dimensions include a length of 3.95 mm, width of 4.6 mm, and height of 1.1 mm.
- Designed without automotive standards or special approvals.
Product Description
STMicroelectronics STPS3H100UF Schottky Diode is a high-performance surface-mount diode housed in an SMB package, rated for 100 V peak reverse voltage and 3 A maximum continuous forward current. It provides reliable low forward voltage drop of 0.63 V for energy-efficient rectification in electronic circuits.
This single Schottky diode offers a peak non-repetitive forward surge current of 75 A, making it suitable for transient load conditions. It operates efficiently over a wide temperature range from -65°C to 175°C, ensuring stability in industrial, power supply, automotive (non-automotive certified), and consumer electronics applications.
The compact SMB package with 2 pins measures approximately 3.95 mm in length, 4.6 mm in width, and 1.1 mm in height, facilitating easy surface mounting on PCBs with consistent performance.
STPS3H100UF is ideal for use in switching power supplies, power converters, freewheeling diodes in DC-DC converters, and other applications requiring fast switching and low forward voltage drop.
This diode features a maximum continuous forward current of 3 A. Peak reverse repetitive voltage rating of 100 V. Low forward voltage drop of 0.63 V. Single diode configuration with 2 pins for surface mount. Wide operating temperature range from -65°C to 175°C.
Peak non-repetitive forward surge current of 75 A. Compact SMB package dimensions of 3.95 x 4.6 x 1.1 mm (LxWxH).
This STMicroelectronics Schottky diode is commonly used in industrial electronic assemblies, telecommunications hardware, power conversion circuits, and embedded systems requiring durability and efficient rectification.
Browse EnvMart's extensive electronics component catalog for more high-quality discrete semiconductors and rectifiers suited for diverse industrial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics Schottky diode is 3 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop is 0.63 V, ensuring efficient operation.
The diode supports a peak non-repetitive forward surge current of 75 A.
The physical dimensions of the SMB package are approximately 3.95 mm in length, 4.6 mm in width, and 1.1 mm in height.
It operates over a wide temperature range from -65°C to 175°C.
This diode has a single diode configuration with 2 pins for easy surface mounting.
It is designed for surface mounting, making it suitable for PCB applications.
This diode is suitable for use in switching power supplies, power converters, and freewheeling diodes in DC-DC converters.
This model is a Schottky rectifier, known for its low forward voltage drop.
The peak reverse current is rated at 1 mA.
The country of origin for this diode is India.
