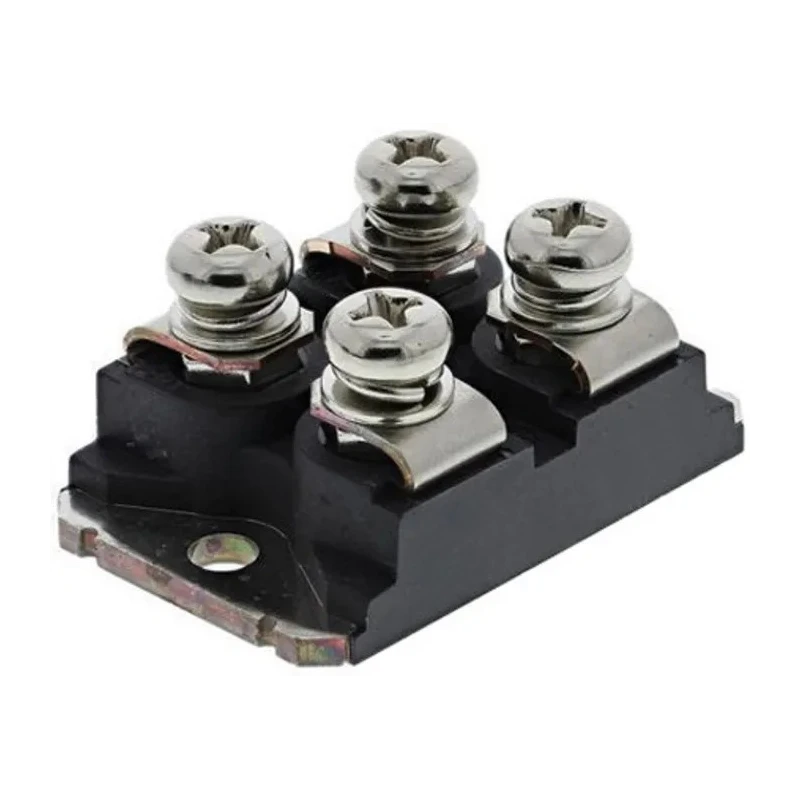

Vishay Ultra Fast 4-Pin SOT-227 Diode 600 V 160 A VS-UFL230FA60
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 12.3mm |
| Length | 38.3mm |
| Model | VS-UFL230FA60 |
| Width | 25.7mm |
| Mount Type | Panel |
| Series | VSX |
| Maximum Operating Temperature | 175°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 160A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Isolated |
| Rectifier Type | Ultra Fast |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.5kA |
| Maximum Forward Voltage Vf | 1.66V |
| Peak Reverse Recovery Time trr | 210ns |
Key Features
- Panel mount type for secure installation.
- Ultra fast rectifier with 210 ns peak reverse recovery time.
- Maximum forward voltage of 1.66 V ensures efficient conduction.
- Operates from -55°C to 175°C temperature range.
- Peak non-repetitive forward surge current of 1.5 kA for high surge conditions.
- Isolated diode configuration suitable for varied electronic applications.
- Peak reverse current value of 100 μA for low leakage.
Product Description
Vishay VS-UFL230FA60 is an ultra fast diode designed for high performance electronic and power applications. Featuring a 4-pin SOT-227 package, this diode supports a maximum continuous forward current of 160 A and a peak reverse voltage of 600 V, making it suitable for demanding industrial and power electronics environments.
This diode is panel mount type, enabling easy and secure installation. The ultra fast rectifier technology ensures a swift peak reverse recovery time of 210 ns, improving switching efficiency and reducing power loss.
Operating temperature ranges from -55°C to 175°C allows reliable functioning in harsh environments. Its maximum forward voltage drop of 1.66 V ensures efficient current conduction with minimal losses. The diode also withstands high surge currents up to 1.5 kA, providing robustness against transient spikes.
Dimensionally, it measures 38.3 mm in length, 25.7 mm in width, and 12.3 mm in height, suitable for compact electronic designs. The isolated diode configuration enhances flexibility in circuit arrangements.
Panel mount type for secure installation. Ultra fast rectifier with 210 ns peak reverse recovery time. Maximum forward voltage of 1.66 V ensures efficient conduction. Operates reliably between -55°C and 175°C. Peak non-repetitive forward surge current up to 1.5 kA.
Isolated diode configuration. Compact SOT-227 package dimensions. Low peak reverse current of 100 μA.
This diode is widely utilized in industrial, power supply, and electronic circuit applications requiring fast switching and high current capability. It supports efficient power management and enhanced circuit protection functionalities.
Made in Philippines, this Vishay Diode upholds high manufacturing standards, suitable for rigorous commercial and industrial use. Explore Vishay products and related semiconductor devices for specialized electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-UFL230FA60 diode is 160 A.
This diode has a peak reverse voltage rating of 600 V.
The peak reverse recovery time for this ultra fast rectifier is 210 ns.
The dimensions of the SOT-227 package are 38.3 mm in length, 25.7 mm in width, and 12.3 mm in height.
It operates reliably within a temperature range of -55°C to 175°C.
The maximum forward voltage drop for the Vishay VS-UFL230FA60 is 1.66 V.
The peak non-repetitive forward surge current is rated at 1.5 kA.
The peak reverse current value is 100 μA.
This diode supports a panel mount type for secure installation.
The diode features an isolated configuration, enhancing flexibility in circuit arrangements.
This diode is widely utilized in industrial, power supply, and electronic circuit applications requiring fast switching and high current capability.
This diode is manufactured in the Philippines.
