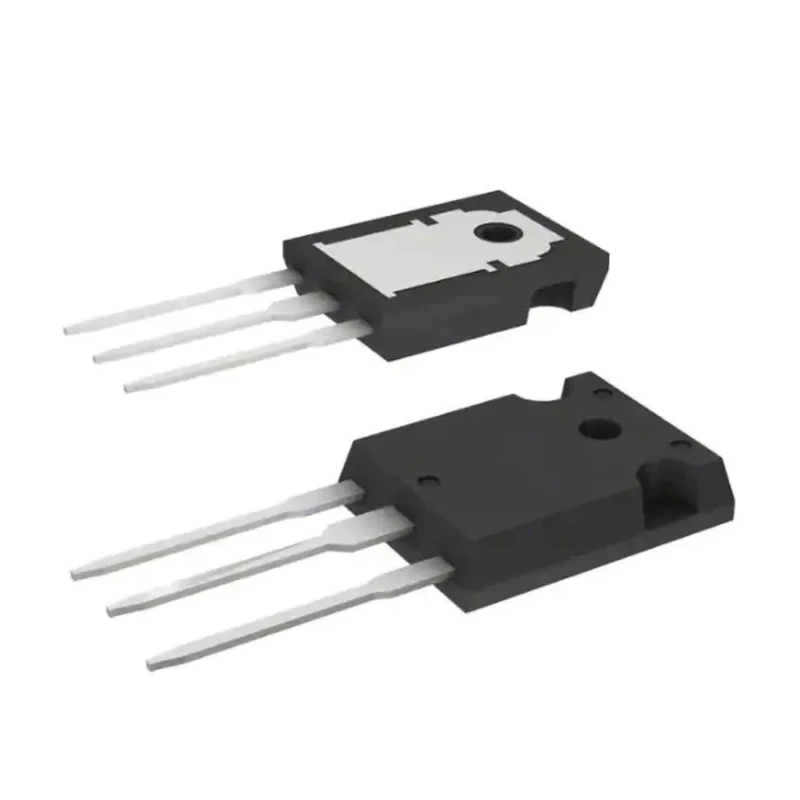

STMicroelectronics 60 V 30 A High Voltage Dual Schottky Rectifier Diode 3-Pin TO-247 STPS3060CW
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STPS3060CW |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STPS3060C |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | High Voltage |
| Peak Reverse Current Ir | 100mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1.05V |
Key Features
- This diode features a maximum continuous forward current of 30 A for robust performance.
- It has peak reverse repetitive voltage rating of 60 V ensuring reliable voltage handling.
- The device supports low forward voltage drop of 1.05 V to improve efficiency.
- Peak non-repetitive forward surge current is rated at 200 A to protect against transient events.
- It is manufactured with a TO-247 through-hole package for ease of mounting and thermal management.
- Operating temperature ranges from -65°C to 150°C enabling stable operation in harsh environments.
- The diode configuration is a 2x common cathode pair suitable for dual rectification applications.
- It exhibits negligible switching losses and low capacitance for high frequency circuitry.
Product Description
STMicroelectronics STPS3060CW is a high voltage dual Schottky rectifier diode packaged in a TO-247 3-pin through-hole format. It is engineered for use in medium voltage switchmode power supplies and power converters requiring high-frequency operation with minimal switching losses.
This diode model has a maximum continuous forward current rating of 30 amperes and a peak reverse repetitive voltage of 60 volts. The low forward voltage drop of 1.05 volts contributes to higher efficiency by reducing conduction losses during operation.
The peak non-repetitive forward surge current capability of 200 amperes ensures robustness against transient energy spikes often seen in industrial circuits. Its operating temperature range of -65° Celsius to 150° Celsius supports reliable performance in demanding environments.
Constructed as a 2x common cathode pair, the STPS3060CW configuration is ideal for dual rectification tasks in power supply designs. The device also benefits from low capacitance and negligible switching losses, making it well suited for high-frequency power conversion applications where low noise is critical.
With no automotive certification, this diode targets industrial, laboratory, manufacturing, and commercial electrical use cases where dependable high voltage rectification is needed. Packaging in a TO-247 format facilitates straightforward mounting and efficient heat dissipation.
This diode features a 30 A continuous current rating. Peak reverse repetitive voltage is 60 V. Forward voltage drop is minimized at 1.05 V for efficiency. Built to withstand 200 A peak non-repetitive surge current. Operates across a wide temperature range from -65°C to 150°C.
Packaged in sturdy TO-247 through-hole style. Configured as a 2x common cathode pair. Designed for low noise, high frequency power converters. Excellent reverse avalanche surge capability enhances durability. New product condition, made in India.
Explore further electronic components in the Semiconductor and Schottky Diode categories at EnvMart to find complementary parts for efficient power management solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 30 A.
It has a peak reverse repetitive voltage rating of 60 V.
The forward voltage drop is minimized at 1.05 V, contributing to higher efficiency.
This diode can withstand a peak non-repetitive forward surge current of 200 A.
The operating temperature range is from -65°C to 150°C.
It is packaged in a TO-247 through-hole format, facilitating straightforward mounting.
This model has a pin count of 3.
The diode configuration is a 2x common cathode pair, suitable for dual rectification applications.
The dimensions are 20.15 mm in height, 15.75 mm in length, and 5.15 mm in width.
It is designed for medium voltage switchmode power supplies and power converters requiring high-frequency operation.
The peak reverse current rating is 100 mA.
This diode is manufactured in India.
