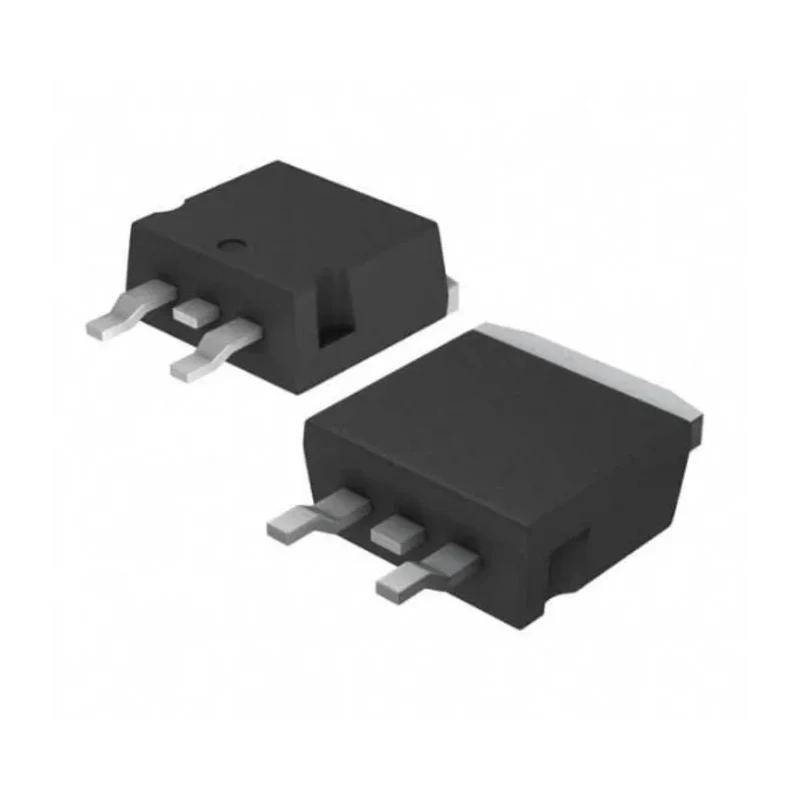

STMicroelectronics High Voltage 170 V 20 A Dual Center Tap Schottky Diode Surface Mount TO-263 Package STPS20170CG-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 4.35mm |
| Length | 10.55mm |
| Model | STPS20170CG-TR |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | STPS20170C |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 170V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | High Voltage |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 990mV |
Key Features
- The diode features a high reverse voltage capability of 170 V.
- It supports a maximum continuous forward current of 20 A.
- Package type is TO-263 providing reliable surface mount soldering.
- Peak non-repetitive forward surge current is rated at 180 A for transient conditions.
- The diode has a low maximum forward voltage drop of 990 mV.
- Operating temperature range can go from -65°C up to 175°C.
- Configuration includes two common cathode pairs optimized for high frequency switching.
- The package is insulated with a voltage withstand of 2000 VRMS sine.
Product Description
STMicroelectronics STPS20170CG-TR is a high voltage Schottky rectifier diode designed for industrial and electronic applications requiring efficient high-frequency switching. Featuring a surface mount TO-263 package, it supports a continuous forward current of 20 A and a peak reverse repetitive voltage of 170 V, making it ideal for power supply rectification.
The diode's configuration as a dual center tap with two common cathode pairs maximizes current handling and switching speed. Its maximum forward voltage of 990 mV ensures efficient conduction, while the peak non-repetitive forward surge current rating of 180 A allows for short duration high current events without damage.
This device operates reliably in a wide temperature range from -65°C to 175°C, supporting demanding thermal environments in industrial and power electronics. Its TO-263 insulated package offers enhanced voltage withstand of 2000 VRMS sine and easy surface mountability on PCB assemblies.
Typical use cases include switched mode power supplies, high-frequency rectification, power management systems, and industrial electronics where robust, high voltage diode performance is essential.
The diode provides high reverse voltage protection up to 170 V. Continuous forward current rating of 20 A supports medium to high power levels. Surface mount TO-263 package ensures compact and reliable installation. Peak surge current capability of 180 A for transient overload conditions.
Wide operating temperature range from -65°C to 175°C. Dual diode common cathode pair configuration for optimized circuit design. Insulated package withstands 2000 VRMS sine voltage. Low forward voltage drop increases efficiency and reduces thermal losses.
This product combines the trustworthy STMicroelectronics build quality with technical features suited for applications in power electronics, industrial control systems, and consumer electronic devices. Environmentally RoHS compliant, it meets current regulatory standards.
Explore our electronics and semiconductor category to discover more STMicroelectronics components and power semiconductor solutions for your projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage rating of this diode is 170 V.
It supports a maximum continuous forward current of 20 A.
This model comes in a surface mount TO-263 package.
The peak non-repetitive forward surge current is rated at 180 A.
The operating temperature range is from -65°C to 175°C.
It has a low maximum forward voltage drop of 990 mV.
The diode features a dual center tap configuration with two common cathode pairs.
The dimensions of the TO-263 package are 10.55 mm in length, 9.35 mm in width, and 4.35 mm in height.
The peak reverse current is rated at 15 mA.
The insulated package can withstand up to 2000 VRMS sine voltage.
It is suitable for applications in switched mode power supplies, high-frequency rectification, and power management systems.
Yes, this product is RoHS compliant, meeting current regulatory standards.
