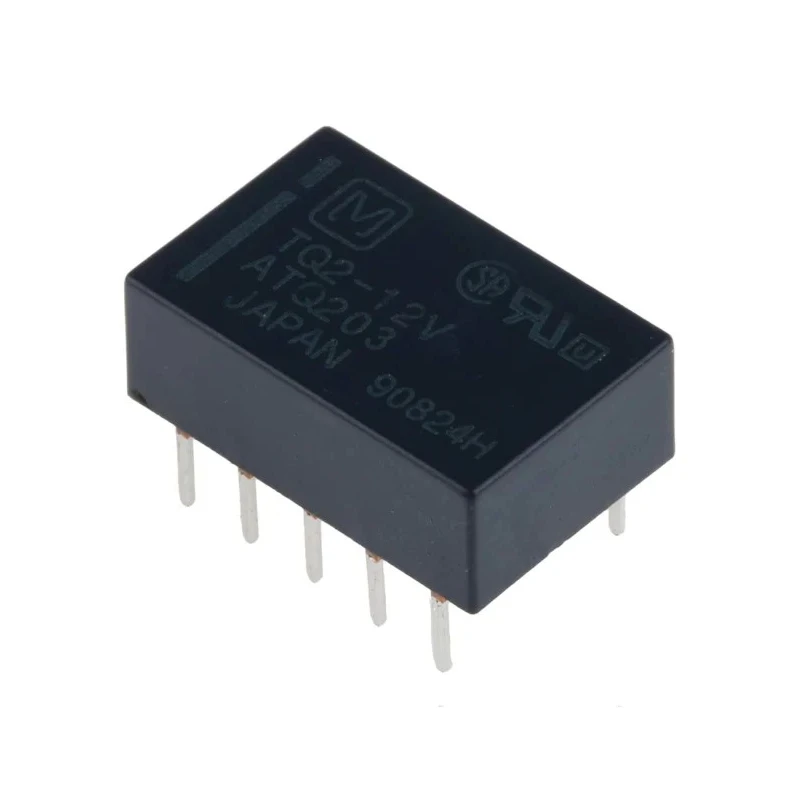

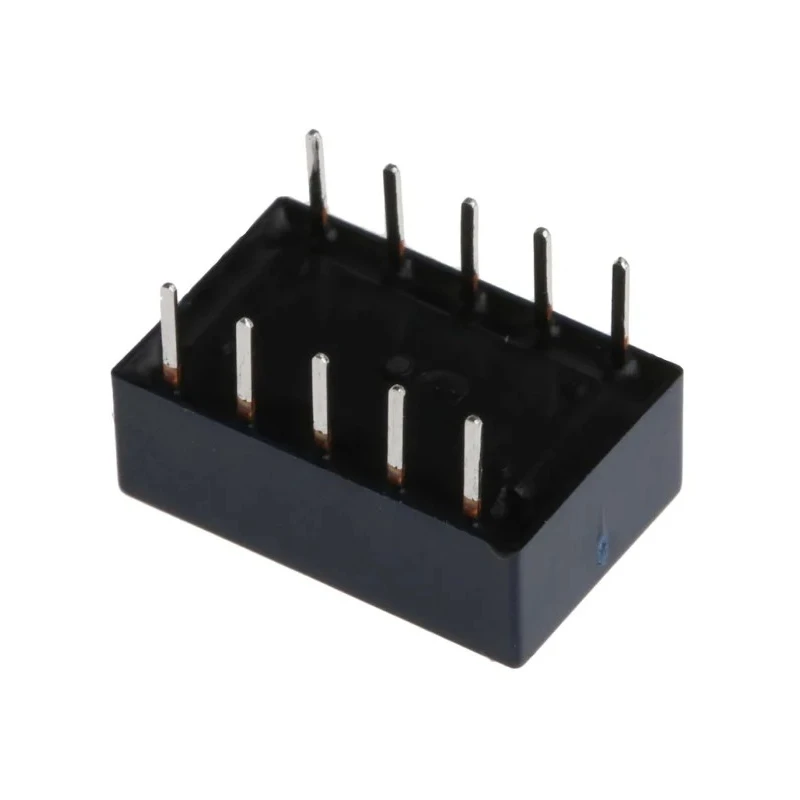

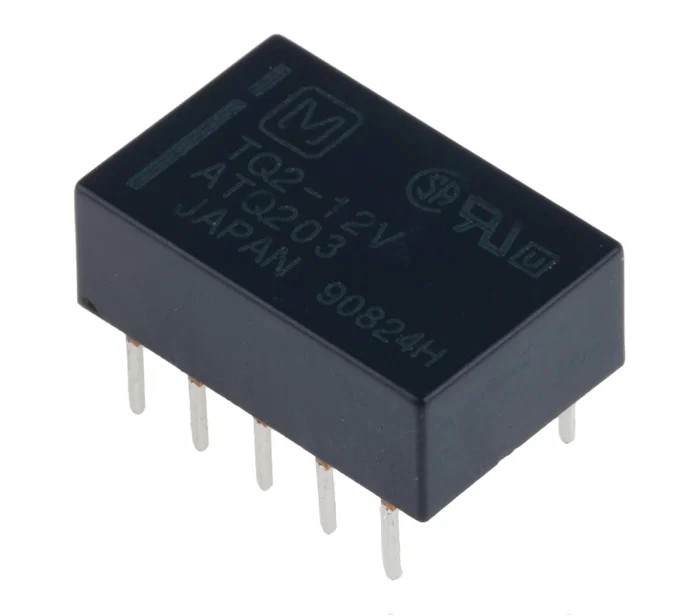

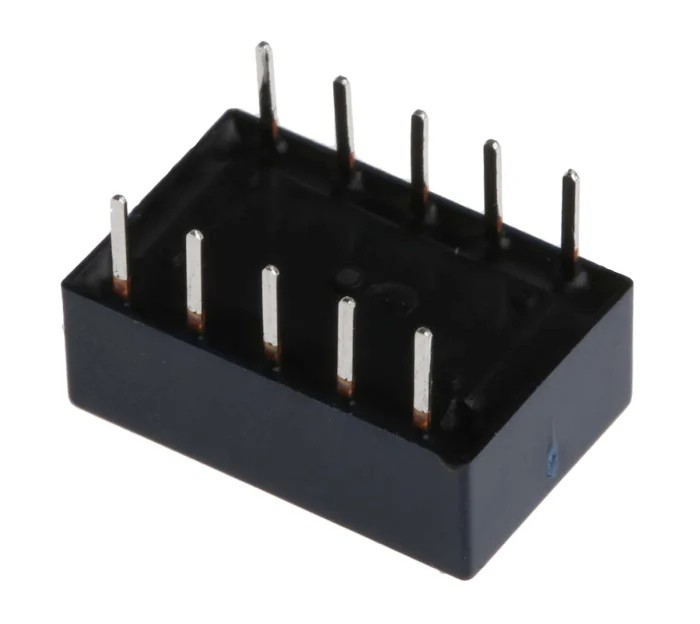

Panasonic Signal Relay PCB Mount, 12V DC Coil Voltage, DPDT Contact Configuration TQ2-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 14mm |
| Model | TQ2-12V |
| Width | 9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TQ2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1028Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 140mW |
| Panasonic PCB Signal Relay, 12V dc Coil, DPDTBrand | Panasonic |
Key Features
- Features a low profile surface mount design with a height of 5mm.
- Coil power consumption is low at 140mW ensuring efficient operation.
- Supports switching AC voltage up to 125V AC and DC voltage up to 220V DC.
- Gold plated contact material reduces contact resistance and enhances reliability.
- Operates reliably between -40°C to 70°C temperature range.
- Terminal type is solder designed for PCB mounting applications.
- Contact resistance is a low 50 milliohms ensuring good electrical performance.
- Compact dimensions measuring 14mm length by 9mm width.
Product Description
Panasonic TQ2-12V is a high sensitivity signal relay designed for PCB mounting applications with a 12V DC coil voltage and DPDT contact configuration. This relay features a compact flat body and low profile surface-mount terminals optimized for automatic mounting on Surface Mount Devices (SMD). It is ideal for use in communication applications, measurement equipment, and quality assurance systems where reliable switching and compact size are required.
The relay supports switching AC voltages up to 125V AC and DC voltages up to 220V DC with a coil power of just 140mW, promoting energy-efficient operation. The gold-plated contacts contribute to low contact resistance of 50 milliohms, enhancing the relay's durability and electrical performance. Coil resistance is specified at 1028 ohms.
Designed to withstand a broad ambient temperature range from -40°C to +70°C, the TQ2-12V relay performs reliably in industrial and laboratory environments. Its solder terminal type ensures robust PCB mounting. The relay complies with RoHS environmental regulations and is manufactured in Japan, reflecting high quality standards.
This relay is particularly suitable for use in industrial automation, electrical control systems, telecommunications equipment, and other sensitive electronic devices requiring precise and reliable switching functionality. The compact size and specialized mounting design allow integration into dense circuit assemblies, improving space efficiency and performance.
Low profile and compact design measures 14mm length, 9mm width, and 5mm height. Extremely low thermal electromotive force (~2μV) benefits precision measurement applications. Surface mount package compatible with automated assembly processes.
Contact material gold plated for enhanced contact durability and conductivity. Applications include communication equipment, QA testing machinery, and measurement instrumentation.
Choose Panasonic TQ2-12V Signal Relays for high-quality, long-lasting PCB mounted switching solutions. Browse the Electronics & Electricals category on EnvMart for additional relay types and accessories to complement your setup.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It features a DPDT (Double Pole Double Throw) contact configuration.
It supports a maximum switching DC voltage of 220V.
The contact resistance is 50 milliohms, ensuring good electrical performance.
The dimensions of the relay are 14mm in length, 9mm in width, and 5mm in height.
The coil power consumption is 140mW, promoting energy-efficient operation.
It operates reliably within a temperature range of -40°C to +70°C.
It features solder terminals designed for PCB mounting applications.
Yes, it complies with RoHS environmental regulations.
The coil resistance is specified at 1028 ohms.
The contacts are made of gold-plated material, which reduces contact resistance.
It is suitable for communication applications, measurement equipment, and quality assurance systems.
