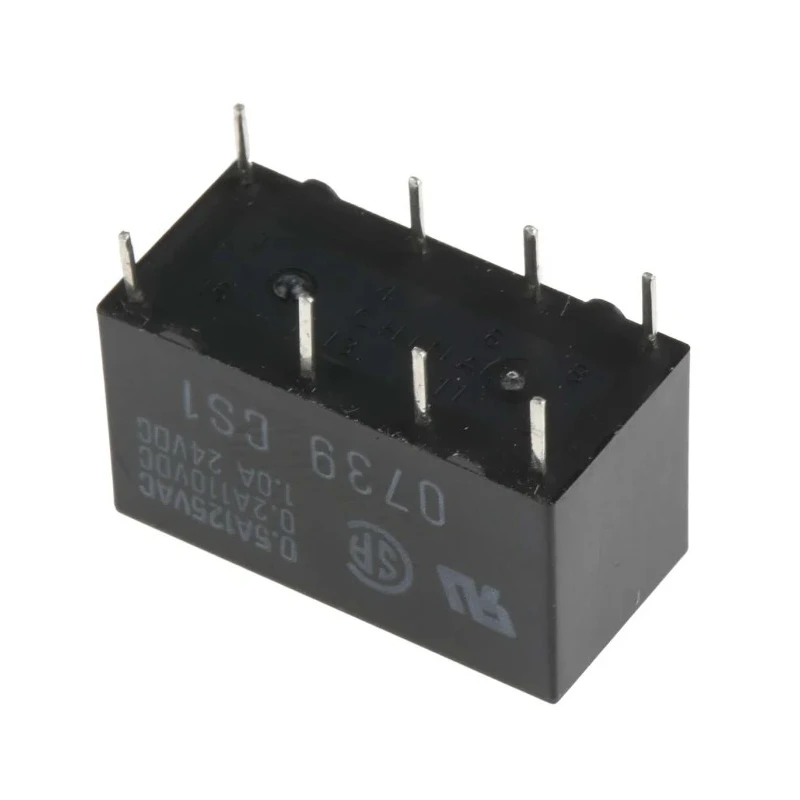

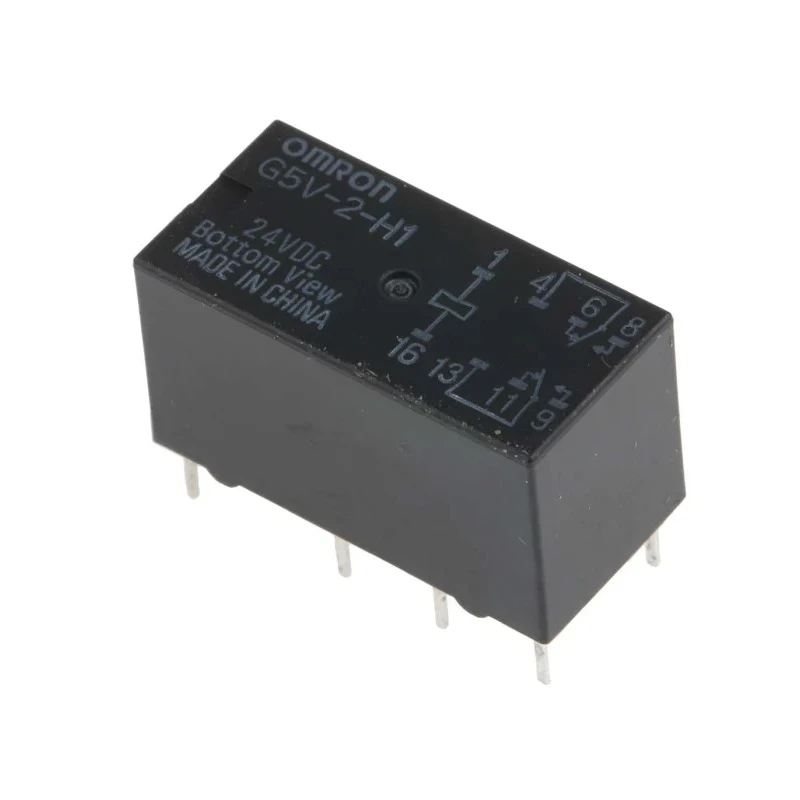

Omron PCB Signal Relay, 24V DC Coil, 1A Switching Current, DPDT G5V-2-H1 DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11.5mm |
| Length | 20.5mm |
| Model | G5V-2-H1 DC24 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G5V |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2880Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 200mW |
| Omron PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDTBrand | Omron |
Key Features
- Compact PCB mount design suitable for electronic circuits.
- DPDT (Double Pole Double Throw) contact configuration for reliable switching.
- Gold plated contacts ensuring high conductivity and corrosion resistance.
- Operating temperature range from -25°C to 70°C suitable for various environments.
- Coil power consumption is low at 200mW ensuring efficient operation.
- Maximum switching voltage is 125V AC/DC providing flexible installation options.
- Coil resistance of 2880Ω enhances stable relay performance.
- Solder terminal type supports secure mounting on PCB boards.
Product Description

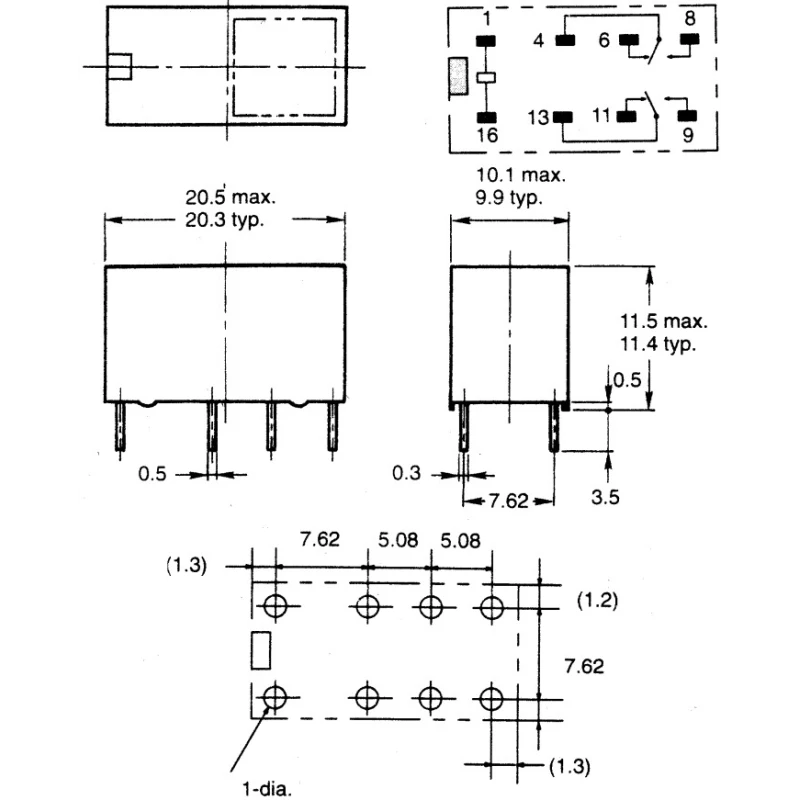

Omron G5V-2-H1 DC24 PCB Signal Relay featuring a 24V DC coil voltage and a switching current rating of 1A with a DPDT contact configuration designed for PCB mounting. This relay is compact with dimensions of 20.5mm length, 10mm width, and 11.5mm height, making it ideal for space-constrained applications.
The relay utilizes gold plated contacts arranged in a bifurcated crossbar design to ensure high reliability and excellent electrical conductivity. Its coil resistance is 2880Ω with a power consumption of 200mW, allowing for ultra-high sensitivity operation while maintaining low energy usage.
Built to operate reliably across a temperature range from -25°C to 70°C, this Omron relay complies with RoHS standards, demonstrating environmentally conscious manufacturing processes. Its solder terminal mount type allows for easy and durable circuit board assembly.
Ideal for industrial automation, telecommunications, security appliance control, and computer peripheral equipment, this relay offers dependable performance in switching AC and DC loads up to 125V and currents up to 1A.
Compact PCB mount design suitable for various electronic applications. DPDT contact configuration for multiple circuit switching tasks. Gold plated contacts provide improved conductivity and corrosion resistance. Wide operating temperature range from -25°C to 70°C for versatile deployment.
Low coil power consumption of 200mW for energy-efficient control. Meets RoHS compliance ensuring environmentally friendly design. Reliable solder terminal connections for secure PCB assembly. Suitable for telecommunications, security, and computer peripheral control systems.
Explore the broad range of Signal Relays and electronic control components available at EnvMart for your industrial automation and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
The maximum switching current for the G5V-2-H1 DC24 is 1A.
This model has dimensions of 20.5mm in length, 10mm in width, and 11.5mm in height.
It features a DPDT (Double Pole Double Throw) contact configuration.
The coil power consumption is 200mW, allowing for efficient operation.
The operating temperature range is from -25°C to 70°C.
It uses solder type terminals for secure mounting on PCB boards.
The coil resistance is 2880Ω, which enhances stable relay performance.
The maximum switching voltage is 125V for both AC and DC.
Yes, it complies with RoHS standards, indicating environmentally conscious manufacturing.
It is suitable for industrial automation, telecommunications, security appliance control, and computer peripheral equipment.
The contacts are made from gold plated material, which ensures high conductivity and corrosion resistance.
