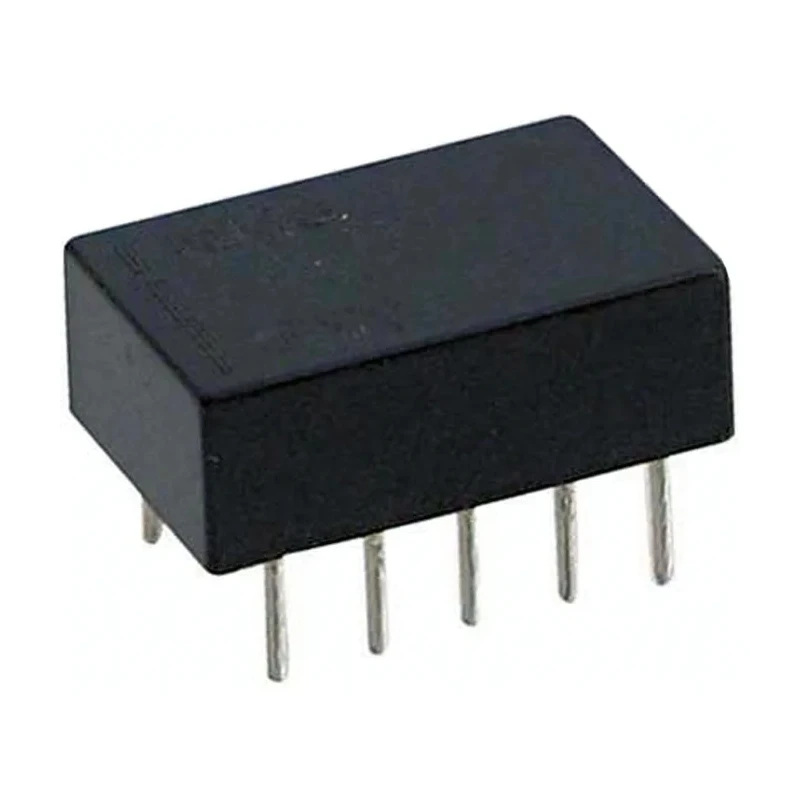

Panasonic Signal Relay PCB Mount with 4.5V DC Coil, DPDT Contact Configuration TQ2-4.5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 14mm |
| Model | TQ2-4.5V |
| Width | 9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TQ2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 144.6Ω |
| Coil Voltage | 4.5V dc |
| Coil Power | 140mW |
Key Features
- Compact flat body with a low profile surface-mount design suitable for automatic insertion.
- Gold plated contact material ensures reliable electrical connections.
- Operates efficiently with a coil power consumption of 140mW.
- Wide operating temperature range from -40°C to 70°C allows use in various environments.
- Low contact resistance of 50mΩ improves signal fidelity and performance.
- Designed for high frequency applications such as communication and measurement equipment.
- Surface mount terminals minimize thermal EMF, approximately 2μV, enhancing signal quality.
- Compliant with RoHS standards for environmental safety.
Product Description
Panasonic TQ2-4.5V is a signal relay designed for PCB mounting with a 4.5V DC coil and Double Pole Double Throw (DPDT) contact configuration. This relay features a compact and low profile flat body, measuring 14mm in length, 9mm in width, and 5mm in height, optimized for surface mount applications with solder terminal types.
The relay offers high frequency characteristics suitable for industrial applications including communication systems, measurement, and quality assurance equipment. Its gold plated contact material delivers excellent conductivity and longevity, combined with a low contact resistance of 50 milliohms, reducing electrical losses and improving performance.
With a coil power rating of 140mW and coil resistance of 144.6 ohms, the relay operates efficiently at 4.5V DC coil voltage. It supports a broad temperature range from -40°C to 70°C, making it suitable for various industrial and laboratory environments.
The TQ2 series relay is engineered for automated surface mount device (SMD) assembly and features low thermal electromotive force around 2 microvolts, enhancing signal accuracy. It complies with RoHS regulations ensuring environmental compliance and safety.
Compact low profile suitable for PCB mounting. Gold plated contacts improve electrical reliability. Efficient coil power consumption at 140mW. Wide operational temperature range from -40°C to 70°C. Low contact resistance of 50mΩ for superior signal integrity.
Ideal for communication, measurement, and QA industrial applications. Surface mount terminals designed for automated insertion. Compliant with RoHS environmental standards.
This Panasonic signal relay supports diverse industrial uses including electronics manufacturing, automated test equipment, industrial control systems, and communication devices. It represents a reliable choice for engineers requiring high sensitivity and compact relay solutions.
Explore more Panasonic relays and similar Signal Relay products in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching applications.
The relay operates at a coil voltage of 4.5V DC, making it suitable for low-voltage applications.
This unit measures 14mm in length, 9mm in width, and 5mm in height, designed for compact PCB mounting.
The TQ2-4.5V relay has a coil power consumption of 140mW, ensuring efficient operation.
It operates efficiently within a temperature range from -40°C to 70°C, suitable for various environments.
This relay features solder terminal types, optimized for surface mount applications.
The contact resistance is 50 milliohms, which helps improve signal fidelity and performance.
Yes, it complies with RoHS standards, ensuring environmental safety and compliance.
The contacts are made of gold plated material, which enhances electrical reliability.
This model is designed for high frequency applications, including communication systems and measurement equipment.
The coil resistance is 144.6 ohms, which is essential for its operational efficiency.
The relay is manufactured in Japan, reflecting the brand's commitment to quality.
