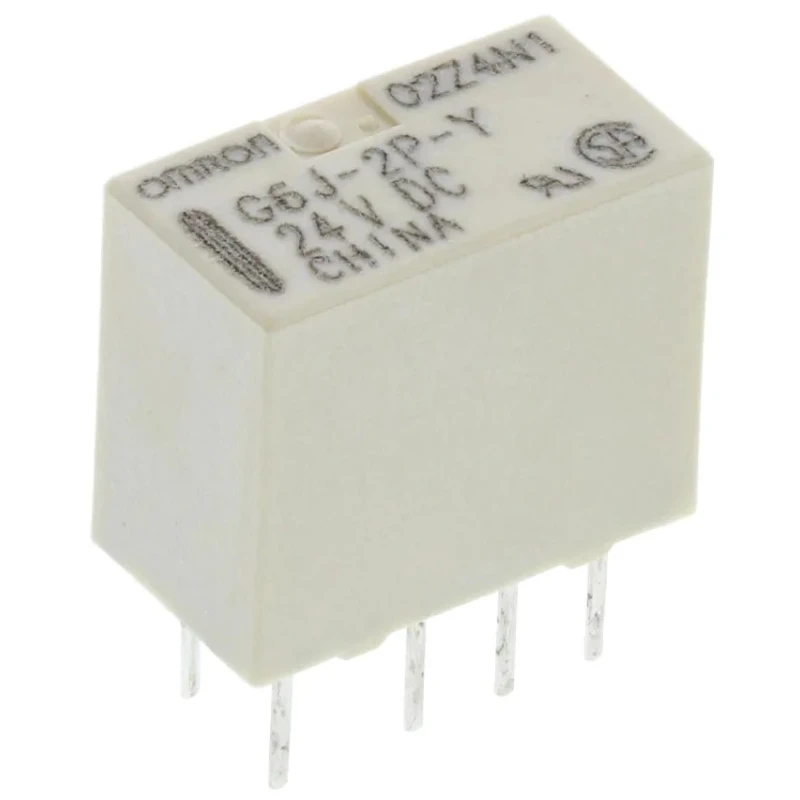

Omron PCB Signal Relay 24V DC Coil 1A DPDT G6J-2P-Y DC24

Omron G6J-2P-Y DC24 PCB Signal Relay is a high-quality, ultra-compact double pole double throw (DPDT) relay designed for printed circuit board (PCB) mounting. The relay operates with a 24V DC coil voltage and can switch currents up to 1A, making it suitable for precise signal switching applications in industrial, automation, and control systems.

This signal relay features a fully sealed construction which helps protect internal components from dust and contaminants, ensuring reliable long-term performance. The device complies with North American Telcordia and FCC Part 68 standards, withstanding impulse voltages of 1500 V for 10x160μs, enhancing its durability in harsh electrical environments.

The coil of the relay has a resistance of 2600 ohms and consumes 230 mW of power, optimized for energy efficiency. Its gold-plated contacts deliver excellent conductivity, reduce contact resistance, and enhance corrosion resistance, which improves the switching reliability and longevity of the relay.

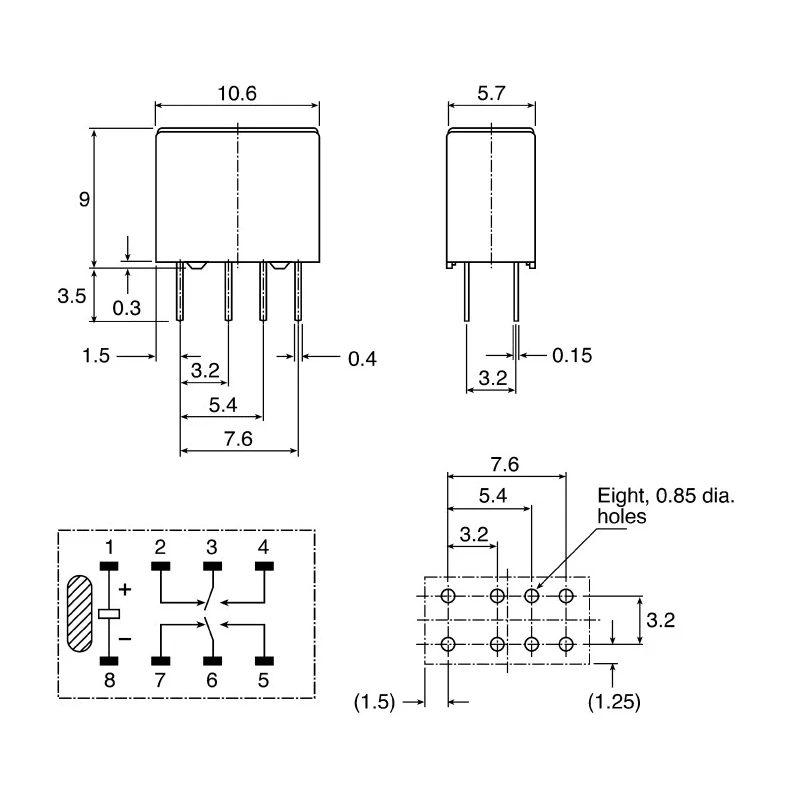

Compact and slim with dimensions of 10.6 mm length, 5.7 mm width, and 9 mm height, this relay is ideal for space-constrained PCB layouts. It supports switching of AC voltages up to 125V and DC voltages up to 110V, with a maximum switching power rating of 37.5 VA. The operational temperature range from -40°C to +85°C allows it to function effectively in various industrial and commercial applications.

Typical uses include electronics, electrical automation, signal conditioning, telecommunications, industrial control, and other PCB-based relay switching applications. Packaging and handling are designed for insertion-ready use in machinery and control boards, improving efficiency.

This relay is fully sealed to protect against dust and environmental factors. Conforms to rigorous North American Telcordia and FCC Part 68 environmental and impulse withstand standards. Coil power consumption is only 230 mW, offering energy-efficient operation.

Gold-plated contacts assure superior electrical conductivity and longevity. Compact dimensions support tight PCB layouts in industrial and commercial products. Wide operating temperature range ensures reliability in harsh environments.

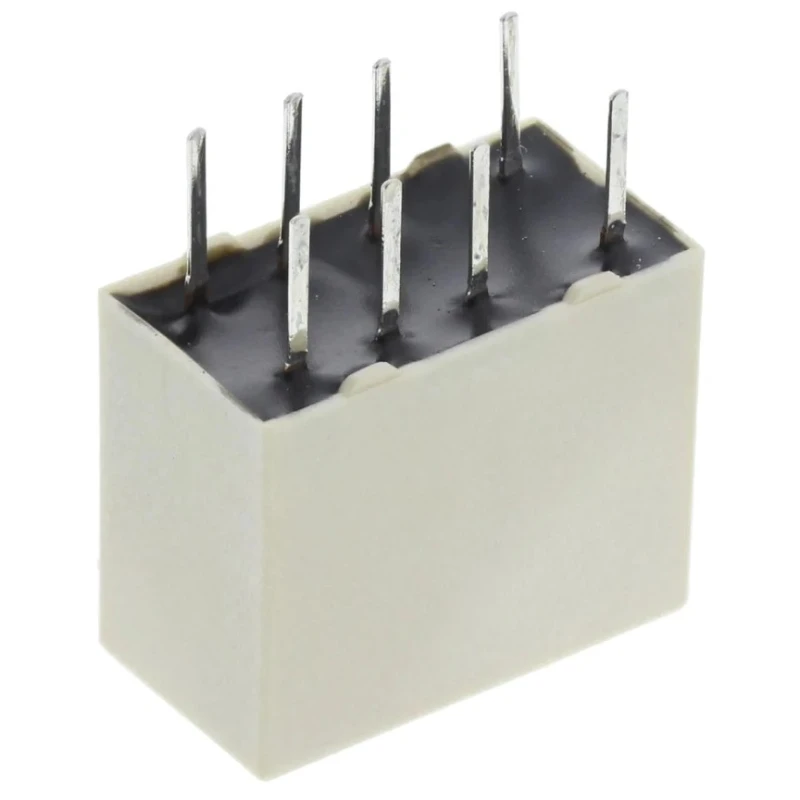

Designed primarily for PCB mount with PCB terminals for ease of assembly. Explore more from Omron’s range of reliable Signal Relays available at EnvMart, your source for industrial electronic components.
