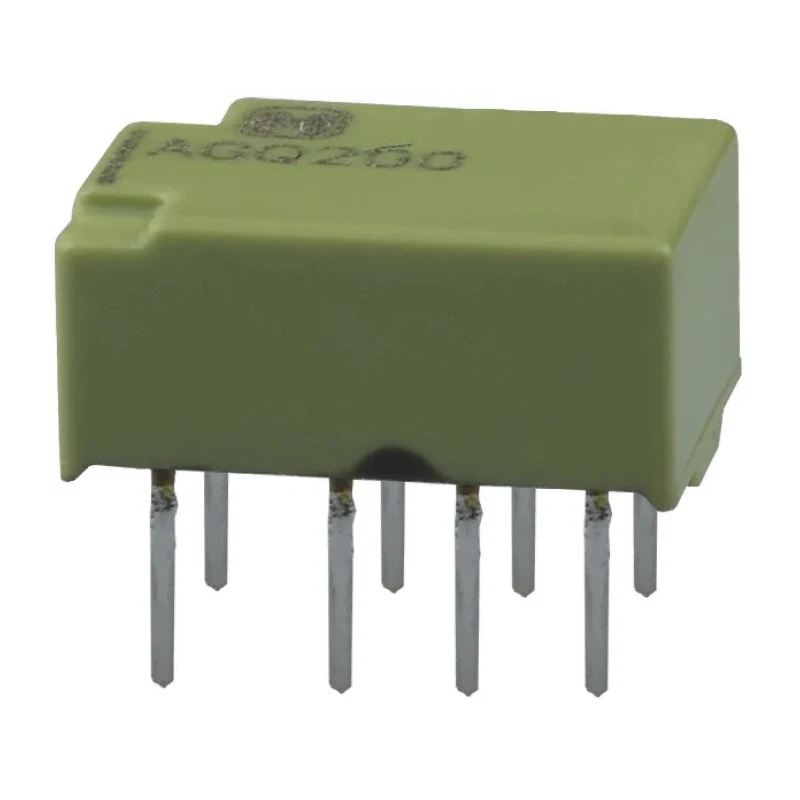

Panasonic Signal Relay PCB Mount, 4.5V DC Coil, 1A Switching Current, DPDT Contact Configuration AGQ2104H
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.2mm |
| Length | 10.6mm |
| Model | AGQ2104H |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | AGQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 202.5Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
| Switching Power | 30W |
Key Features
- This relay features a 1A switching current for precise signal control.
- Compact design measuring 10.6mm length, 7.2mm width, and 5.2mm height.
- Gold plated contacts ensure reliable electrical connectivity.
- Coil power consumption is low at 100mW for energy efficiency.
- Suitable for telephone switchboards, telecommunications, security, and consumer electronics.
- Sealed construction allows automatic washing and offers vibration and shock resistance.
- Has a wide operating temperature range from -40°C to 85°C for stability in harsh environments.
- Through hole PCB mount type supports easy installation.
Product Description
Panasonic AGQ2104H is a compact signal relay designed for PCB mounting applications. It features a 4.5V DC coil and DPDT contact configuration supporting a 1A switching current, making it ideal for low power switching in telecommunications, security, and audio-visual equipment.
This relay measures 10.6 x 7.2 x 5.2 mm and offers a compact footprint to save PCB space, with gold plated contacts for excellent conductivity and corrosion resistance. The coil power is 100mW, ensuring low power operation.
Designed to operate reliably in a temperature range from -40°C to 85°C, this Panasonic relay withstands high vibration and shock levels, and its sealed construction allows for automatic washing, boosting durability and long lifecycle.
Typical use cases include telephone switchboards, measurement equipment, and consumer electronics where precise and reliable switching is critical. The relay's superior surge resistance and functional shock resilience make it suitable for demanding industrial and commercial applications.
This relay features a 1A switching current for precise signal control. Compact design measuring 10.6mm length, 7.2mm width, and 5.2mm height. Gold plated contacts ensure reliable electrical connectivity. Coil power consumption is low at 100mW for energy efficiency.
Sealed construction allows automatic washing and offers vibration and shock resistance. Wide operating temperature range from -40°C to 85°C for varied environment stability. Through hole PCB mount type supports ease of installation.
Complies with RoHS environmental standards.
This Panasonic PCB Signal Relay AGQ2104H provides reliable electrical performance in compact form for industrial, laboratory, and commercial electronics applications. Browse EnvMart’s extensive relay and contactor catalog for complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 4.5V DC.
This model supports a switching current of 1A.
It measures 10.6mm in length, 7.2mm in width, and 5.2mm in height.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil power consumption is low at 100mW, ensuring energy efficiency.
It operates reliably within a temperature range from -40°C to 85°C.
This relay is designed for PCB (Printed Circuit Board) mounting.
The contacts of this relay are made of gold plated material, ensuring reliable electrical connectivity.
The maximum switching power is 30W.
It complies with RoHS environmental standards.
The terminal type is through hole, facilitating easy installation.
This relay is suitable for use in telephone switchboards, telecommunications, security systems, and consumer electronics.
