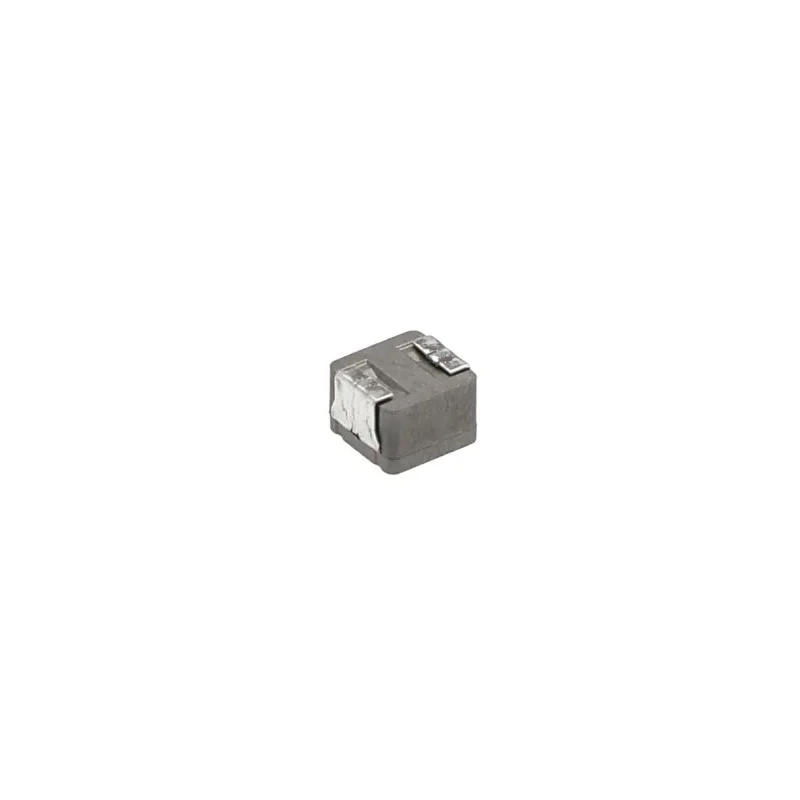

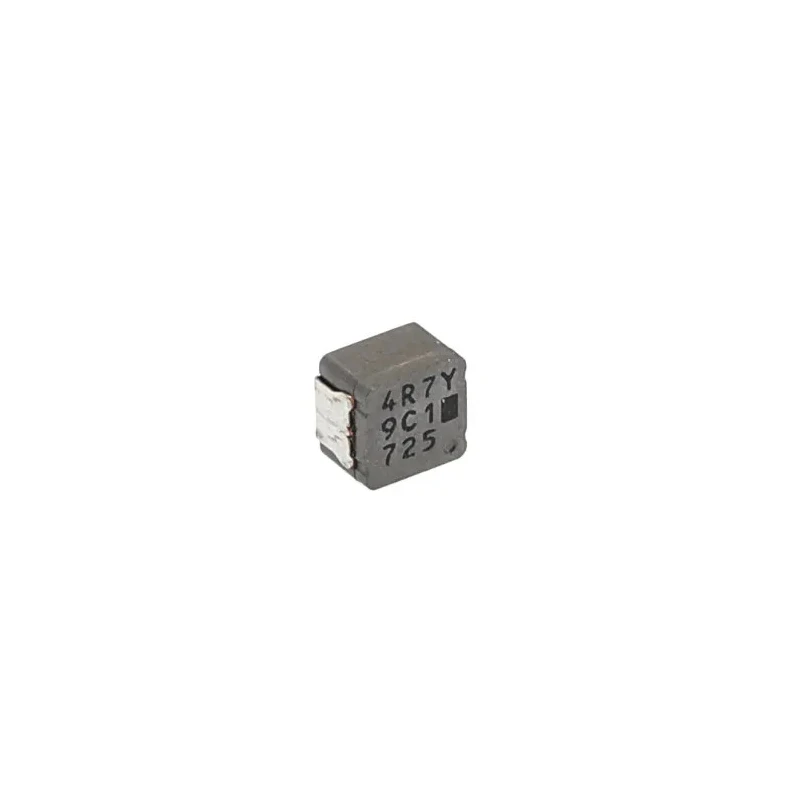

Panasonic Shielded Surface Mount Inductor 4.7 μH 20% Tolerance 7.7 A Maximum DC Current Metal Core 0540 Package ETQP4M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 4mm |
| Length | 5.5mm |
| Model | ETQP4M |
| Depth | 5mm |
| Series | ETQP4M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS Compliant |
| Package/Case | 0540 |
| Maximum DC Current | 7.7A |
| Maximum DC Resistance | 39.6mΩ |
| Inductance Tolerance | 20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a metal core and wirewound design ensuring consistent inductance and reliability.
- Shielded design reduces electromagnetic interference for enhanced signal integrity.
- Complies with AEC-Q200 automotive standards for durability in automotive electronics.
- Operates efficiently within a temperature range of -40 °C to +150 °C.
- Compact 0540 package with dimensions 5.5 x 5 x 4 mm suitable for space-constrained designs.
- Low DC resistance of 39.6 mΩ minimizes energy loss and heat generation.
- RoHS compliant, suitable for environmentally responsible applications.
- Ideal for use in power supplies, DC-DC converters, RF and audio filters, and motor drives.
Product Description
Panasonic ETQP4M Shielded Surface Mount Inductor is a high-quality electronic component designed for reliable performance in automotive, industrial, and commercial applications. Featuring an inductance of 4.7 μH with a tolerance of 20%, it supports a maximum DC current of 7.7 A, making it suitable for robust power management tasks.
The inductor utilizes a metal core and wirewound construction for enhanced stability and consistent inductance. Its shielded case effectively reduces electromagnetic interference, contributing to system stability especially in sensitive RF and audio circuits.
Designed in a compact 0540 package measuring 5.5 mm in length, 5 mm in depth, and 4 mm in height, it fits well within compact PCB layouts. Operating temperature ranges from -40 °C up to +150 °C enable it to function reliably in demanding industrial and automotive environments. Additionally, the product adheres to the stringent AEC-Q200 automotive standard, ensuring durability and quality for automotive electronics.
This inductor exhibits a low DC resistance of 39.6 mΩ, which helps in minimizing power loss and reduces the thermal footprint during high current operation.
Applications for this Panasonic ETQP4M inductor include use in automotive power management systems, power supplies, DC-DC converters, RF and audio filtering circuits, energy storage systems, and motor drives found in industrial automation.
Constructed with a metal core and wirewound design ensuring consistent inductance and reliability. Shielded design reduces electromagnetic interference for enhanced signal integrity. Complies with AEC-Q200 automotive standards for durability in automotive electronics.
Operates efficiently within a temperature range of -40 °C to +150 °C. Compact 0540 package with dimensions 5.5 x 5 x 4 mm suitable for space-constrained designs. Low DC resistance of 39.6 mΩ minimizes energy loss and heat generation.
RoHS compliant, suitable for environmentally responsible applications. Ideal for use in power supplies, DC-DC converters, RF and audio filters, and motor drives. Explore Panasonic components and similar Surface Mount Inductors in EnvMart’s Electronics Components category for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 μH with a tolerance of 20%.
It supports a maximum DC current of 7.7 A.
The dimensions of the 0540 package are 5.5 mm in length, 5 mm in depth, and 4 mm in height.
It operates efficiently within a temperature range of -40 °C to +150 °C.
This inductor utilizes a wirewound construction with a metal core for enhanced stability and consistent inductance.
Yes, it complies with the AEC-Q200 automotive standards, ensuring durability in automotive electronics.
The inductor exhibits a low DC resistance of 39.6 mΩ, which helps minimize power loss.
It is ideal for use in power supplies, DC-DC converters, RF and audio filters, and motor drives.
The maximum self-resonant frequency is 100 kHz.
The termination style of this model is surface mount.
Yes, it is RoHS compliant, making it suitable for environmentally responsible applications.
The country of origin for this inductor is Japan.
