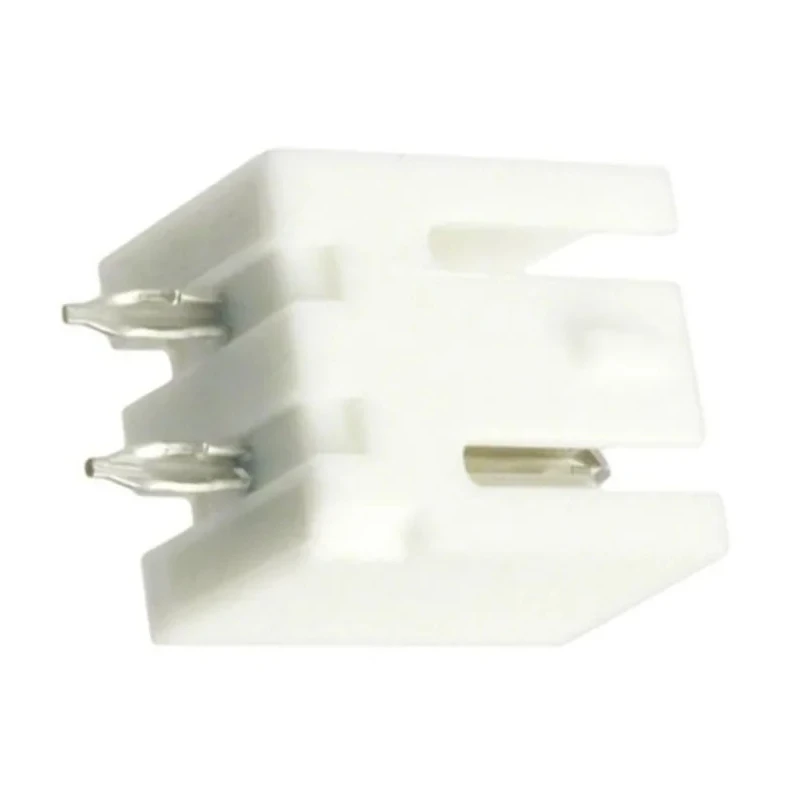

Molex Straight Through Hole PCB Header 2 Contacts 3.5 mm Pitch 1 Row Shrouded 53258-0229
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 5.5A |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features 3.5 mm pitch and 1 row configuration for compact PCB mounting.
- Shrouded design provides protection and secure mating.
- Constructed with brass contacts plated with tin for corrosion resistance.
- Supports current rating of 5.5 A and voltage rating up to 250 V.
- Operates reliably in temperatures from -40°C to 105°C.
- Through hole mount type ensures strong mechanical and electrical connections.
- Termination type is solder, providing stable and durable joints.
- Tail pin length is 3.5 mm suitable for standard PCB thickness.
Product Description
Molex 53258-0229 Straight Through Hole PCB Header is a precision engineered connector designed for wire-to-board applications requiring secure and reliable connections. It features 2 contacts arranged in a single row with 3.5 mm pitch providing a compact footprint for PCB integration.
This shrouded header incorporates brass contacts plated with tin, ensuring excellent conductivity and resistance to corrosion during operation. Rated for 5.5 A current and 250 V voltage, it is suited for moderate power electronic circuits.
The connector is designed to operate over a wide temperature range from -40°C to 105°C, making it suitable for industrial and commercial electronics environments. Through hole mounting provides mechanical stability and reliable solder joints with a tail pin length of 3.5 mm.
Applications include automotive electronics, industrial controls, communication devices, and consumer electronic products requiring dependable board connections. The shrouded design enhances mating security and prevents contact damage during assembly.
Features 3.5 mm pitch and 1 row configuration for compact PCB integration. Shrouded design protects contacts and ensures secure connections. Brass contacts with tin plating for corrosion resistance and conductivity. Rated 5.5 A current and 250 V voltage for moderate power applications.
Operating temperature range: -40°C to 105°C suitable for various environments. Through hole mount ensures strong mechanical and soldered electrical connections. Tail pin length: 3.5 mm compatible with standard PCB designs.
Widely applicable in industrial, commercial, and automotive electronics.
Choose Molex PCB Headers for high-quality, durable wire-to-board connectivity solutions. Browse our full catalog of connectors and related electronic components on EnvMart for trusted industrial-grade products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of 5.5 A and a voltage of up to 250 V, making it suitable for moderate power applications.
It features a 3.5 mm pitch with a single row configuration, providing a compact footprint for PCB integration.
This model uses a through hole mount type, ensuring strong mechanical and electrical connections on the PCB.
The contacts are constructed from brass and are plated with tin, which provides corrosion resistance and good conductivity.
It operates reliably within a temperature range of -40°C to 105°C, suitable for various industrial and commercial environments.
The tail pin length of this header is 3.5 mm, which is compatible with standard PCB thicknesses.
This model features a solder termination type, providing stable and durable joints for electrical connections.
This header is shrouded, which enhances mating security and helps prevent contact damage during assembly.
It is widely applicable in automotive electronics, industrial controls, communication devices, and consumer electronic products.
This model features 2 contacts, allowing for effective wire-to-board connectivity.
The country of origin for this PCB header is India.
This model is part of the wire-to-board connector system, designed for secure connections between wires and printed circuit boards.
