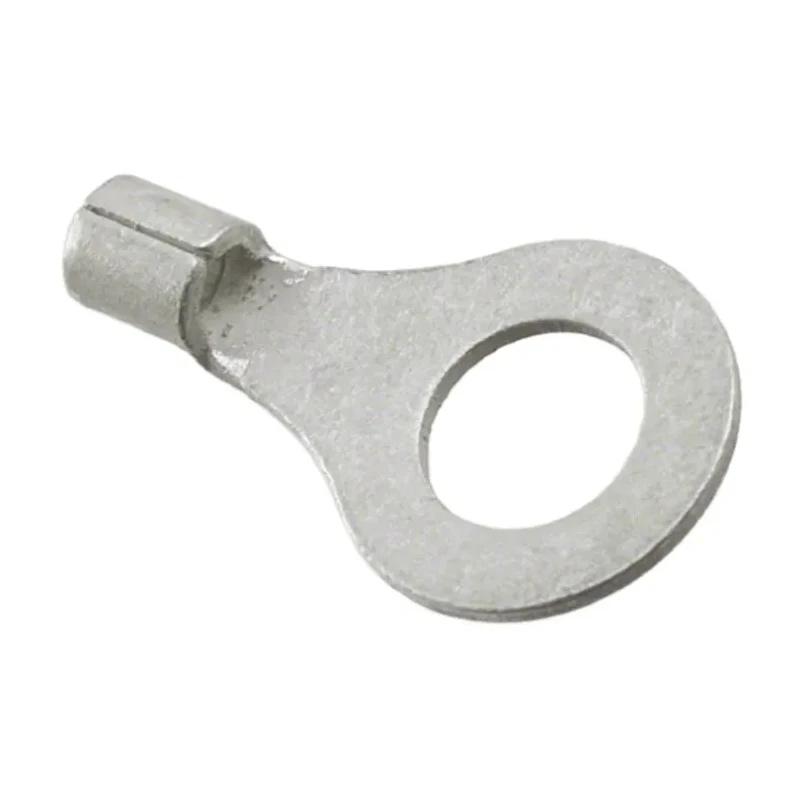

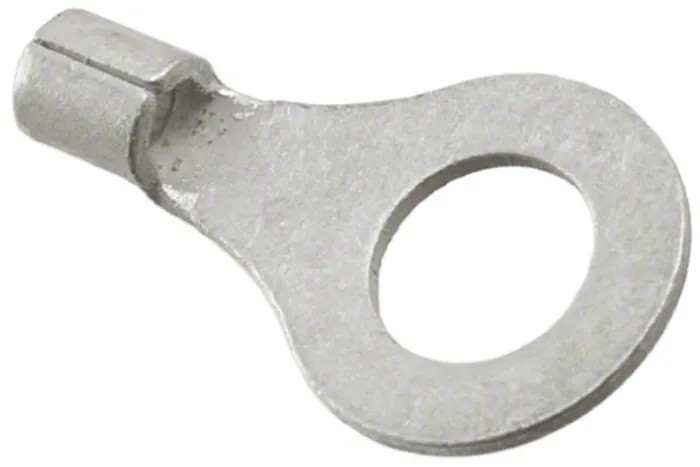

Molex Versakrimp Uninsulated Ring Terminal M6 Stud Size 18 AWG to 14 AWG Wire Size Grey 19323-0010
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Colour | Grey |
| THICKNESS | 0.79mm |
| Insulation | Uninsulated |
| Overall Length | 16.5mm |
| Contact Material | Copper Alloy |
| Series | Versakrimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 11.86mm |
| Inner Ring Diameter | 6.61mm |
| Stud Size | M6 |
Key Features
- Constructed with copper alloy contact material and tin plating for enhanced conductivity and corrosion resistance.
- Uninsulated ring terminal providing reliable electrical connection in industrial applications.
- Outer ring diameter of 11.86 mm and inner ring diameter of 6.61 mm for precise fit on M6 studs.
- Overall length measures 16.5 mm with 0.79 mm thickness ensuring durability under mechanical stress.
- Operates safely in temperatures ranging from -55°C minimum to 105°C maximum.
- Compatible with wire sizes from 1 mm² (18 AWG) up to 2.5 mm² (14 AWG) for versatile wiring needs.
- Seamless barrel design allows easy and secure crimping with excellent vibration resistance.
- Suitable for electronic, power connector, and wire terminal applications in manufacturing and electrical maintenance.
Product Description
Molex 19323-0010 Versakrimp Uninsulated Ring Terminal features a robust copper alloy contact with tin plating that enhances electrical performance and corrosion protection. It is designed with an M6 stud size and fits wire gauges from 18 AWG to 14 AWG, accommodating wire cross-sections from 1 mm² to 2.5 mm². Its grey color and uninsulated construction make it ideal for use in power connectors and wire terminal assemblies where insulation is managed separately.
The ring terminal measures an overall length of 16.5 mm, with an outer ring diameter of 11.86 mm and an inner ring diameter of 6.61 mm. Its barrel thickness of 0.79 mm ensures mechanical stability during installation, and the seamless barrel design allows easier crimping by enabling the barrel to rotate within crimping jaws, enhancing the quality and durability of the electrical connection.
Capable of withstanding operating temperatures from -55°C up to 105°C, this ring terminal is suitable for industrial, electronic, manufacturing, electrical maintenance, and assembly applications requiring secure wire termination. Its vibration resistance ensures long-lasting reliability in environments subject to mechanical stress.
Constructed from copper alloy with tin plating for optimal conductivity and corrosion resistance. Uninsulated design for flexible application with separate insulation needs. Designed for M6 studs with precise inner and outer ring dimensions for secure fit.
Compatible with wire sizes 18 AWG to 14 AWG, or 1 mm² to 2.5 mm² cross-section. Seamless barrel enables ease of crimping and vibration-resistant connection. Rated for operating temperatures from -55°C to 105°C for reliable performance.
Ideal for use in power connectors, electronic components, and wire terminal assemblies.
Its use optimizes connection durability and performance in electrical and electronic assemblies. Explore more Ring Terminals and electrical connectors at EnvMart for your industrial and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal is compatible with wire sizes ranging from 18 AWG (1 mm²) to 14 AWG (2.5 mm²).
The outer ring diameter is 11.86 mm, while the inner ring diameter is 6.61 mm, ensuring a precise fit on M6 studs.
The overall length of this terminal is 16.5 mm, and it has a thickness of 0.79 mm.
It is constructed from a copper alloy contact material with tin plating, which enhances conductivity and corrosion resistance.
This ring terminal operates safely in temperatures ranging from -55°C to 105°C.
The seamless barrel design allows for easier and more secure crimping by enabling the barrel to rotate within crimping jaws, enhancing the quality of the connection.
The stud size for this ring terminal is M6, making it suitable for various applications requiring this specification.
This terminal is uninsulated, allowing for flexible application where insulation is managed separately.
It is suitable for use in power connectors, electronic components, and wire terminal assemblies in industrial and electrical maintenance applications.
The tin plating provides enhanced electrical performance and corrosion protection, ensuring reliable connections in various environments.
The product is manufactured in India.
This ring terminal belongs to the Versakrimp series, known for its reliable electrical connections.
