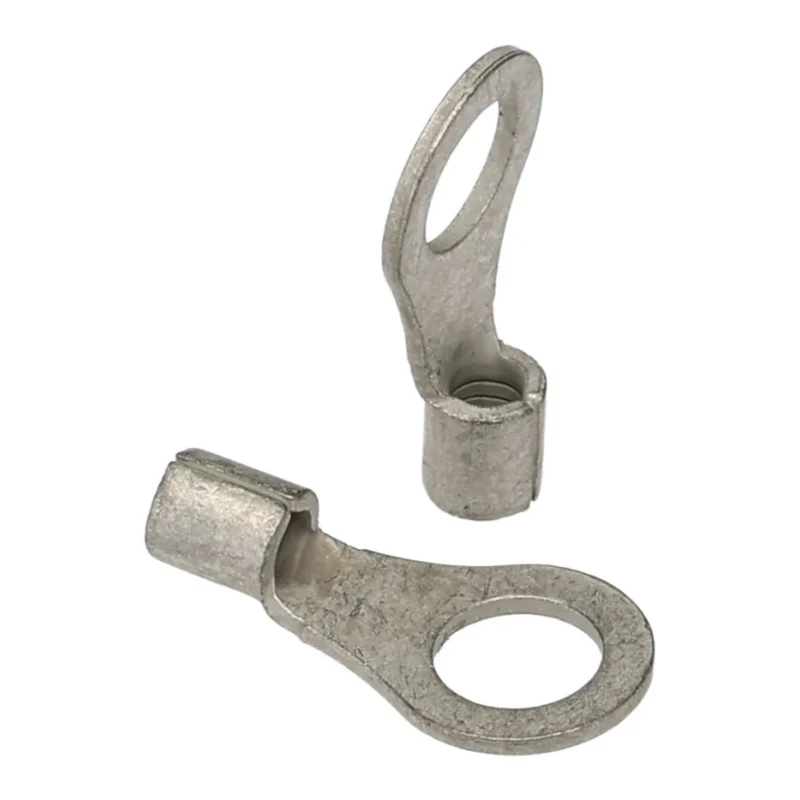

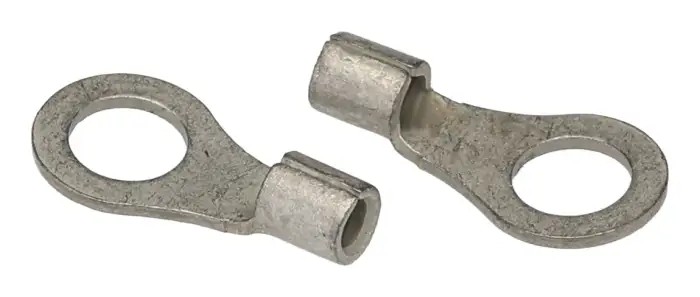

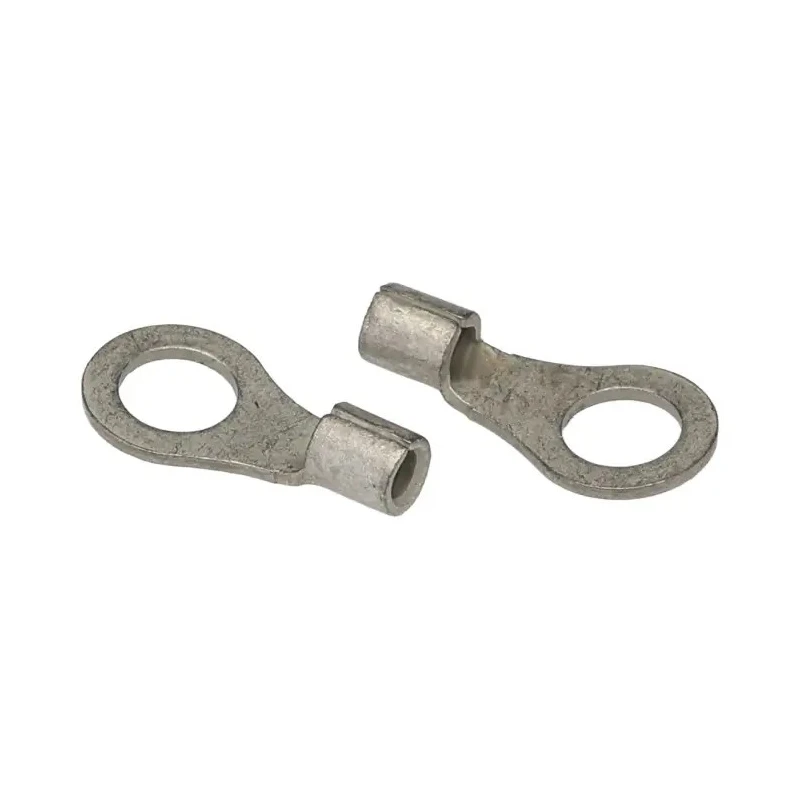

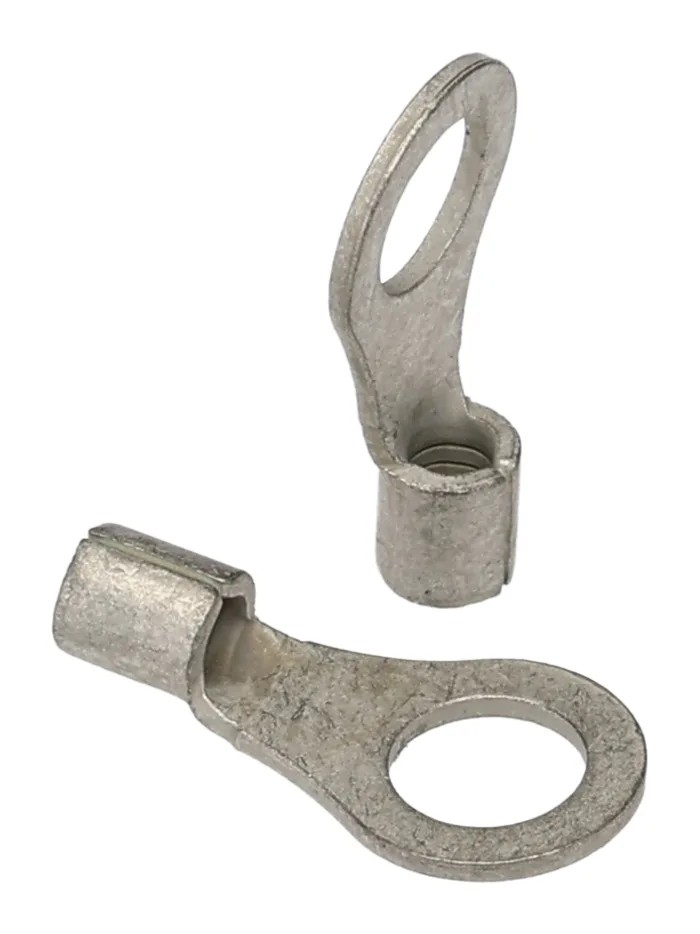

Molex Versakrimp Uninsulated Ring Terminal M5 Stud Size 18 AWG 14 AWG Wire Size Grey 19323-0009
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Grey |
| THICKNESS | 0.79mm |
| Insulation | Uninsulated |
| Overall Length | 14.5mm |
| Contact Material | Copper Alloy |
| Series | Versakrimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.69mm |
| Inner Ring Diameter | 5.39mm |
| Stud Size | M5 |
Key Features
- Constructed from copper alloy material for excellent conductivity.
- Tin plating resists corrosion and increases durability.
- Uninsulated design suitable for various electrical connections.
- Supports wire size range from 1mm² to 2.5mm².
- Features a closed-brazed barrel for secure crimping.
- Compact 14.5mm overall length for tight installations.
- Rated for operating temperatures from -55°C to 105°C.
- Grey color for easy identification in wiring assemblies.
Product Description
Molex 19323-0009 Versakrimp Uninsulated Ring Terminal is designed for secure electrical connections specifically suited to M5 stud applications. Manufactured using high-quality copper alloy with tin contact plating, this terminal ensures optimal conductivity and corrosion resistance.
The terminal accommodates wire sizes between 18 AWG and 14 AWG (1mm² to 2.5mm²), making it versatile for multiple electrical wiring tasks. It features a closed-brazed barrel design that guarantees a tight and reliable crimp, essential for maintaining robust electrical performance in industrial environments.
With an overall length of 14.5mm, thickness of 0.79mm, and color coding in grey, this component is compact and easy to install in constrained spaces. It operates reliably within a temperature range of -55°C to 105°C, suitable for demanding industrial, manufacturing, mechanical, and electronics applications.
This ring terminal is commonly used in automation equipment, electrical control panels, and machinery wiring to improve connection durability and system efficiency. Its uninsulated construction supports direct metal-to-metal contact, ideal for grounding or secure stud attachment.
Constructed from copper alloy for superior electrical conductivity. Tin-plated to prevent oxidation and prolong service life. Supports wire sizes 1mm² to 2.5mm² (18 AWG to 14 AWG). Closed-brazed barrel design ensures a dependable crimp.
Compact form factor with 14.5mm length and 0.79mm thickness. Operating temperature range from -55°C to 105°C for broad application. Ideal for use in automation systems, control panels, and mechanical equipment. Uninsulated terminal suitable for stud connections and grounding.
Grey color coding eases identification in wiring assemblies.
This Molex Ring Terminal 19323-0009 enhances electrical connection reliability across various industrial sectors. Explore more quality wire terminals in the Wire Terminals & Splices category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 18 AWG to 14 AWG, which corresponds to a cross-sectional area of 1mm² to 2.5mm².
The maximum operating temperature for this terminal is 105°C.
It is constructed from copper alloy, which provides excellent conductivity.
The overall length of this terminal is 14.5mm, making it compact for tight installations.
This model features a closed-brazed barrel design, ensuring a secure and reliable crimp.
The terminal is grey in color, which aids in easy identification within wiring assemblies.
The thickness of this terminal is 0.79mm.
It is designed for M5 stud size applications.
The minimum operating temperature for this terminal is -55°C.
It is commonly used in automation equipment, electrical control panels, and machinery wiring.
The contact of this terminal is tin-plated, which helps resist corrosion and enhance durability.
This terminal is manufactured in the United States.
