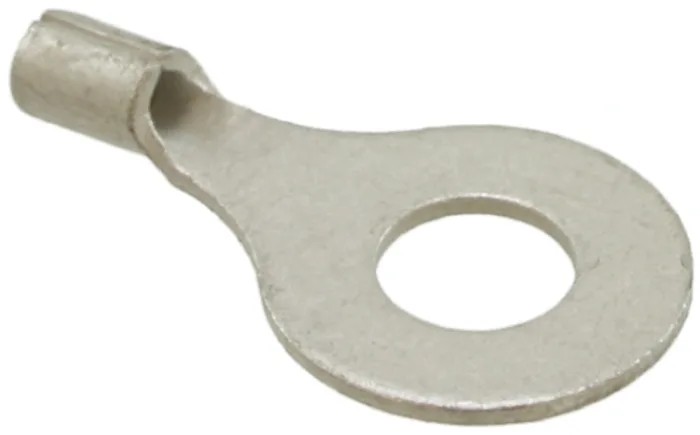

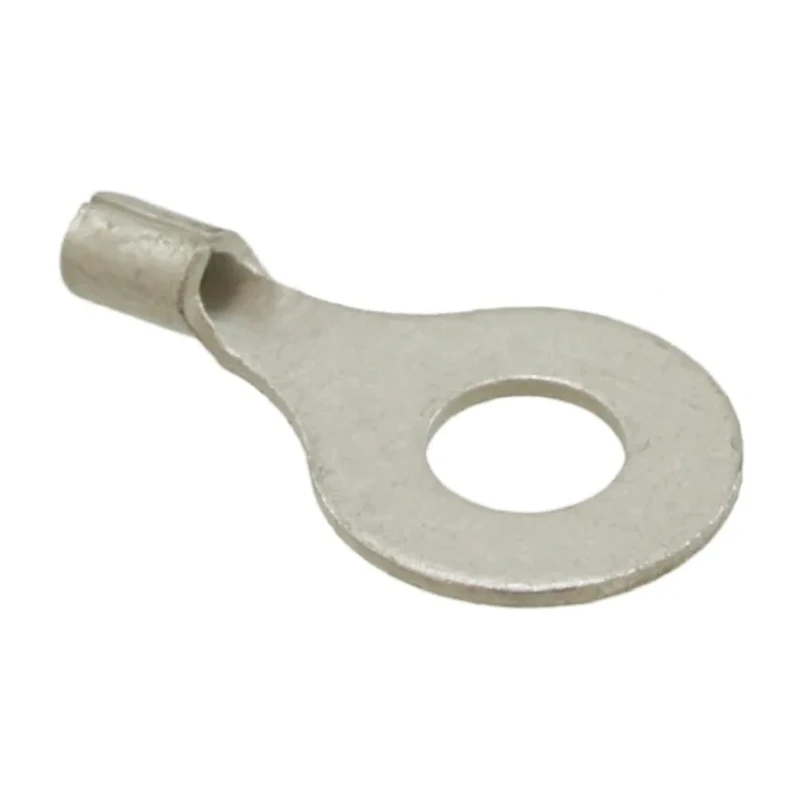

Molex Versakrimp Uninsulated Ring Terminal M5 Stud Size 22 AWG to 18 AWG Wire Size Grey 19323-0005
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Grey |
| THICKNESS | 0.71mm |
| Insulation | Uninsulated |
| Overall Length | 15.2mm |
| Contact Material | Copper Alloy |
| Series | Versakrimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 11.86mm |
| Inner Ring Diameter | 5.39mm |
| Stud Size | M5 |
Key Features
- Constructed with copper alloy contact material for excellent conductivity.
- Features tin plating on contacts to prevent corrosion.
- Uninsulated design provides flexibility in electrical connections.
- Compatible with wire sizes ranging from 22 AWG (0.5 mm²) to 18 AWG (1 mm²).
- Outer ring diameter measures 11.86 mm and inner ring diameter is 5.39 mm.
- Overall length of terminal is 15.2 mm with a thickness of 0.71 mm.
- Maximum operating temperature rated at 105°C and minimum at -55°C.
- Designed for secure crimp connections with vibration resistance.
Product Description
Molex 19323-0005 Versakrimp Uninsulated Ring Terminal is engineered for reliable electrical connections, featuring an uninsulated design compatible with M5 stud sizes and wire sizes from 22 AWG to 18 AWG. The terminal is made of copper alloy contact material, which delivers excellent conductivity, and coated with tin plating to resist corrosion and enhance durability.
This ring terminal has an outer ring diameter of 11.86 mm and an inner ring diameter of 5.39 mm, providing proper fitment and mechanical stability. It features a seamless barrel enabling easier and more effective crimping, which results in a double crimp securing both conductor and insulation for vibration resistance.
The terminal measures 15.2 mm in overall length with a thickness of 0.71 mm, suitable for various electrical and industrial applications. It operates reliably in a wide temperature range from -55°C up to 105°C, supporting rigorous environmental conditions commonly found in industrial and manufacturing settings.
Molex's Versakrimp terminals are ideal for electronic component assembly, power connectors, and wire terminal applications that require precise, secure, and durable wire terminations. Manufactured in the United States, this product meets quality and performance expectations in electronics and electrical sectors.
Constructed with copper alloy contact material providing high conductivity. Tin plating enhances contact corrosion resistance and durability. Uninsulated for versatile usage in custom electrical wiring setups. Compatible with wire sizes 22 AWG to 18 AWG, covering 0.5 mm² to 1 mm² range.
Dimensions: Outer ring diameter 11.86 mm, inner ring diameter 5.39 mm, length 15.2 mm, thickness 0.71 mm. Operating temperature range from -55°C to 105°C. Seamless barrel design allows easy crimping with vibration resistance.
Manufactured in the United States ensuring high manufacturing standards. Ideal for industrial, laboratory, manufacturing, and power connector applications.
This Molex Versakrimp uninsulated Ring Terminal is a trusted choice for secure and efficient wire termination, enabling enhanced production efficiency and reliable electrical connectivity. Explore more wire terminal solutions and electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal is compatible with wire sizes ranging from 22 AWG (0.5 mm²) to 18 AWG (1 mm²).
The outer ring diameter is 11.86 mm, the inner ring diameter is 5.39 mm, it has an overall length of 15.2 mm, and a thickness of 0.71 mm.
The terminal operates reliably in a temperature range from -55°C to 105°C.
It is constructed with a copper alloy contact material, which provides excellent conductivity, and features tin plating to prevent corrosion.
This model is designed for M5 stud sizes, ensuring a secure fit for various applications.
The seamless barrel design allows for easier and more effective crimping, resulting in a secure connection that enhances vibration resistance.
It is suitable for electronic component assembly, power connectors, and wire terminal applications requiring secure wire terminations.
The thickness of the terminal is 0.71 mm.
This ring terminal is manufactured in the United States, ensuring adherence to high manufacturing standards.
The tin plating enhances corrosion resistance, which contributes to the durability and reliability of the electrical connections.
This terminal is part of the Versakrimp series, known for its reliable electrical connections.
The overall length of the terminal is 15.2 mm.
